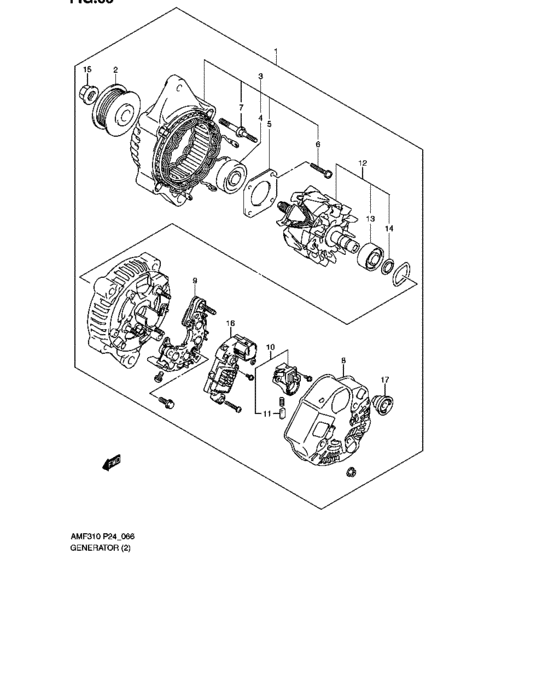

Generator (Australia,Hong Kong,Israel) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-M68K1-000
Generator assy
|
31400-M68K1-000 |
— | ||
|
2
|
2
31171-M68K0-000
Pulley
|
31171-M68K0-000 |
— | ||
|
3
|
3
31581-M68K0-000
Frame assy, drive end
|
31581-M68K0-000 |
— | ||
|
4
|
4
31582-M79G0-000
Bearing
|
31582-M79G0-000 |
— | ||
|
5
|
5
31585-M79G0-000
Retainer, bearing
|
31585-M79G0-000 |
— | ||
|
6
|
6
31588-M79G0-000
Screw
|
31588-M79G0-000 |
— | ||
|
7
|
7
31691-M79G0-000
Bolt, stud
|
31691-M79G0-000 |
— | ||
|
8
|
8
31615-M68K0-000
Cover end, rr
|
31615-M68K0-000 |
— | ||
|
9
|
9
31621-M68K0-000
Holder, sub-assy rectifier
|
31621-M68K0-000 |
— | ||
|
10
|
10
31656-M68K0-000
Holder assy, brush
|
31656-M68K0-000 |
— | ||
|
11
|
11
32530-M79G0-000
Brush set
|
32530-M79G0-000 |
— | ||
|
12
|
12
31710-M68K1-000
Rotor assy
|
31710-M68K1-000 |
— | ||
|
13
|
13
31583-M68K1-000
Bearing
|
31583-M68K1-000 |
— | ||
|
14
|
14
31613-M79G0-000
Cover, bearing
|
31613-M79G0-000 |
— | ||
|
15
|
15
31775-M79G0-000
Nut
|
31775-M79G0-000 |
— | ||
|
16
|
16
32500-M68K1-000
Regulator assy
|
32500-M68K1-000 |
— | ||
|
17
|
17
32512-M68K0-000
Bush
|
32512-M68K0-000 |
— |
