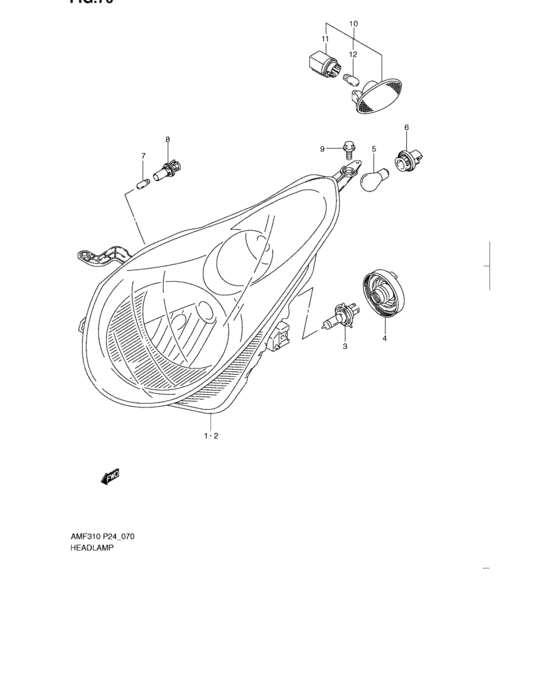

Headlamp (HEADLAMP) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-M68K2-100
Unit, headlamp rh
LHD:N/HEADLAMP LEVELING |
35121-M68K2-100 |
— | ||
|
1
|
1
35121-M68K0-100
Unit, headlamp rh
LHD:W/HEADLAMP LEVELING |
35121-M68K0-100 |
— | ||
|
1
|
1
35121-M68K3-000
Unit, headlamp rh
RHD:N/HEADLAMP LEVELING |
35121-M68K3-000 |
— | ||
|
1
|
1
35121-M68K1-000
Unit, headlamp rh
RHD:W/HEADLAMP LEVELING |
35121-M68K1-000 |
— | ||
|
2
|
2
35321-M68K2-100
Unit, headlamp lh
LHD:N/HEADLAMP LEVELING |
35321-M68K2-100 |
— | ||
|
2
|
2
35321-M68K0-100
Unit, headlamp lh
LHD:W/HEADLAMP LEVELING |
35321-M68K0-100 |
— | ||
|
2
|
2
35321-M68K3-000
Unit, headlamp lh
RHD:N/HEADLAMP LEVELING |
35321-M68K3-000 |
— | ||
|
2
|
2
35321-M68K1-000 Unit, headlamp lhRHD:W/HEADLAMP LEVELING |
35321-M68K1-000 |
US $120.87 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $29.50 |
||
|
4
|
4
35125-M79F0-000
Cover, socket
|
35125-M79F0-000 |
— | ||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER) |
09471-12186-000 |
from US $10.80 |
||
|
6
|
6
35618-M55K0-000
Socket, turn lamp
|
35618-M55K0-000 |
— | ||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
8
|
8
36118-M79F0-000
Socket, position lamp
|
36118-M79F0-000 |
— | ||
|
9
|
9
09122-76006-000 SCREW(6X16) |
09122-76006-000 |
from US $0.80 |
||
|
10
|
10
36410-M67K1-000
Lamp assy, side turn signal
|
36410-M67K1-000 |
— | ||
|
11
|
11
36422-M67K0-000
Socket
|
36422-M67K0-000 |
— | ||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
