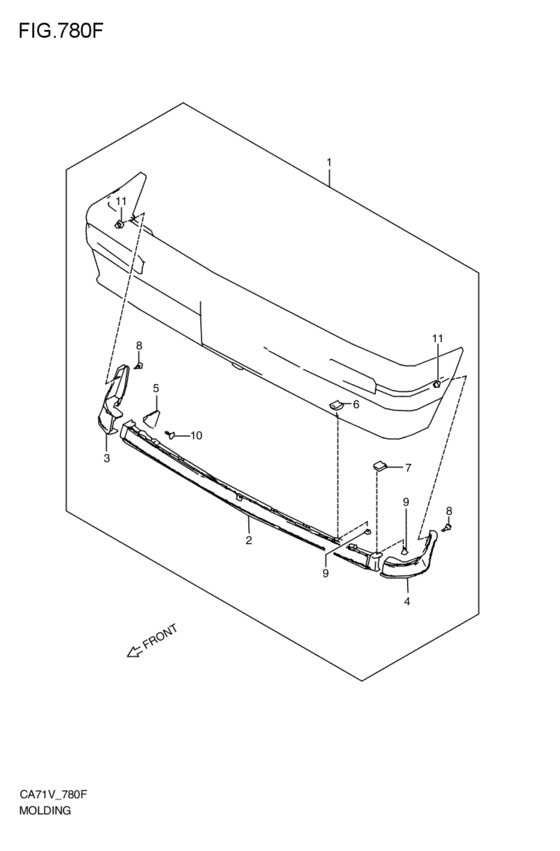

moulding (TURBO; 1985-07-01~1986-06-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1985 - 1986
- Sales region
- Japan
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- S
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71600-84811-281
ダム,フロントセットエア
ブラック; TURBO; 1985-07-01~1986-06-01 |
71600-84811-281 |
— | ||
|
2
|
2
71611-84000-281
エアダム,フロント
ブラック; TURBO; 1985-07-01~1986-06-01 |
71611-84000-281 |
— | ||
|
3
|
3
71612-84000-281
エアダム,フロントサイド,ライト
ブラック; TURBO; 1985-07-01~1986-06-01 |
71612-84000-281 |
— | ||
|
4
|
4
71613-84000-281
エアダム,フロントサイド,レフト
ブラック; TURBO; 1985-07-01~1986-06-01 |
71613-84000-281 |
— | ||
|
5
|
5
71614-84000-000
ブラケット,フロントエアダムサイド
TURBO; 1985-07-01~1986-06-01 |
71614-84000-000 |
— | ||
|
6
|
6
09148-05014-000
Nut
TURBO; 1985-07-01~1986-06-01 |
09148-05014-000 |
— | ||
|
7
|
7
09148-05019-000 NUTTURBO; 1985-07-01~1986-06-01 |
09148-05019-000 |
from US $0.96 |
||
|
8
|
8
02142-05164-000
Screw
TURBO; 1985-07-01~1986-06-01 |
02142-05164-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0516B-000 SCREWTURBO; 1985-07-01~1986-06-01 |
02142-0516B-000 |
from US $0.96 |
||
|
8
|
8
02142-0516A-000 SCREWScrew TURBO; 1985-07-01~1986-06-01 |
02142-0516A-000 |
from US $0.76 |
||
|
9
|
9
03241-05163-000
Screw, bracket
TURBO; 1985-07-01~1986-06-01 |
03241-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0516A-000 SCREWTURBO; 1985-07-01~1986-06-01 |
03241-0516A-000 |
from US $0.76 |
||
|
10
|
10
03541-05123-000
Screw
TURBO; 1985-07-01~1986-06-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREWTURBO; 1985-07-01~1986-06-01 |
03541-0512B-000 |
from US $0.76 |
||
|
11
|
11
08316-16056-000
Nut
TURBO; 1985-07-01~1986-06-01 |
08316-16056-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1005A-000 NUTTURBO; 1985-07-01~1986-06-01 |
08316-1005A-000 |
from US $0.96 |
||
