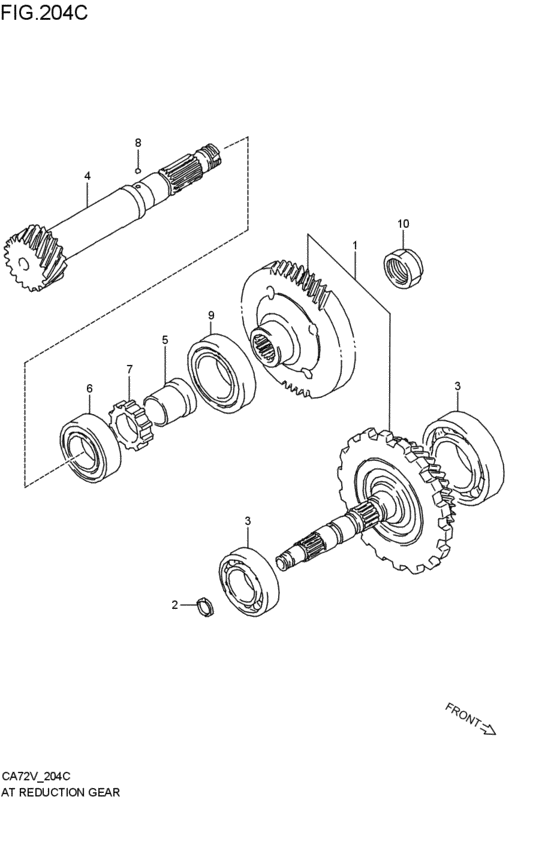

at - reduction gear (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-55810-000
シャフトセット,アウトプツト
3AT; 1987-08-01~1988-07-01 |
24100-55810-000 |
— | ||
|
2
|
2
24122-55A10-000
リング,アウトプツトシャフトシール
3AT; 1987-08-01~1988-07-01 |
24122-55A10-000 |
— | ||
|
3
|
3
24161-55A10-000
BEARING,OUTPUT SHAFT
3AT; 1987-08-01~1988-07-01 |
24161-55A10-000 |
— | ||
|
4
|
4
24131-55A11-000
シャフト,トランスミッションカウンタ
M.NO.8E-01952マデ; 3AT; 1987-08-01~1988-07-01 |
24131-55A11-000 |
— | ||
|
4
|
4
24131-55A12-000
シャフト,トランスミッションカウンタ
M.NO.8E-01953ヨリ; 3AT; 1987-08-01~1988-07-01 |
24131-55A12-000 |
— | ||
|
5
|
5
24132-55A10-000
スペーサ,リダクションドリブン
3AT; 1987-08-01~1988-07-01 |
24132-55A10-000 |
— | ||
| replacement | |||||
|
5
|
5
24132-55AT0-000
NUT SET,REDUCTION
3AT; 1987-08-01~1988-07-01 |
24132-55AT0-000 |
— | ||
|
6
|
6
24163-72B20-000
BEARING,COUNTER SHAFT NO.2
3AT; 1987-08-01~1988-07-01 |
24163-72B20-000 |
— | ||
|
7
|
7
26142-55A10-000
ROTOR,SPEED SENSOR
3AT; 1987-08-01~1988-07-01 |
26142-55A10-000 |
— | ||
|
8
|
8
06111-05004-000 BALL3AT; 1987-08-01~1988-07-01 |
06111-05004-000 |
from US $0.77 |
||
|
9
|
9
24162-55A10-000
BEARING,COUNTER SHAFT NO.1
3AT; 1987-08-01~1988-07-01 |
24162-55A10-000 |
— | ||
|
10
|
10
24142-55A10-000
ナット,リダクションドリブン
3AT; 1987-08-01~1988-07-01 |
24142-55A10-000 |
— | ||
| replacement | |||||
|
10
|
10
24132-55AT0-000
NUT SET,REDUCTION
3AT; 1987-08-01~1988-07-01 |
24132-55AT0-000 |
— | ||
