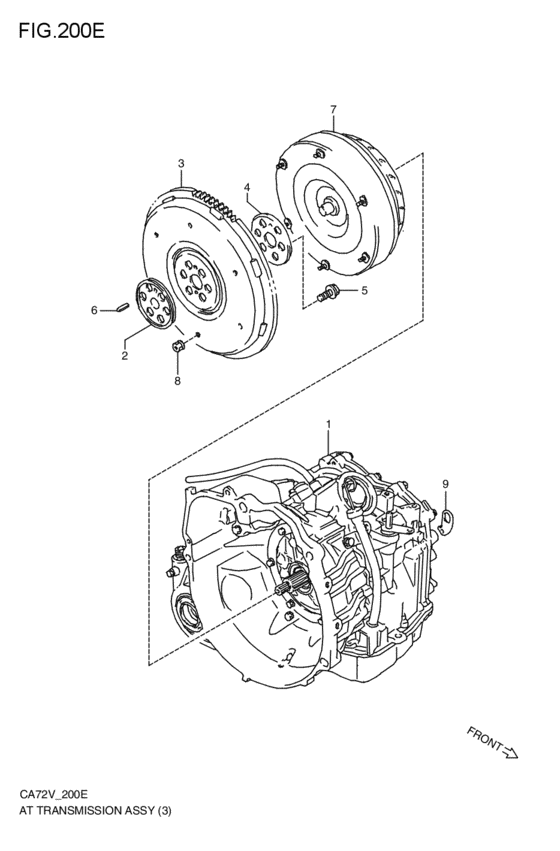

at - transmission assy (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-55A10-000
トランスミッションアッシ,オートマチック
M.NO.8F-00813マデ; 3AT; 1987-08-01~1988-07-01 |
20002-55A10-000 |
— | ||
|
1
|
1
20002-55A11-000
トランスミッションアッシ,オートマチック
M.NO.8F-00814ヨリ; 3AT; 1987-08-01~1988-07-01 |
20002-55A11-000 |
— | ||
|
2
|
2
22611-55A10-000
フランジ,ドライブプレート
3AT; 1987-08-01~1988-07-01 |
22611-55A10-000 |
— | ||
| replacement | |||||
|
2
|
2
22611-55A11-000 FLANGE,T/C DRIVE PLATE3AT; 1987-08-01~1988-07-01 |
22611-55A11-000 |
from US $33.64 |
||
|
3
|
3
22620-55A10-000
プレート,ドライブ
3AT; 1987-08-01~1988-07-01 |
22620-55A10-000 |
— | ||
|
4
|
4
22631-78131-000 PLATE,DRIVE REAR3AT; 1987-08-01~1988-07-01 |
22631-78131-000 |
from US $8.37 |
||
|
5
|
5
09103-10097-000 BOLT(10X17)3AT; 1987-08-01~1988-07-01 |
09103-10097-000 |
US $1.28 |
||
|
6
|
6
09205-06009-000 PIN,SPRING(6X14)3AT; 1987-08-01~1988-07-01 |
09205-06009-000 |
US $10.30 |
||
|
7
|
7
22710-55A10-000
コンバータ,トルク
3AT; 1987-08-01~1988-07-01 |
22710-55A10-000 |
— | ||
|
8
|
8
08361-35063-000
Nut
3AT; 1987-08-01~1988-07-01 |
08361-35063-000 |
— | ||
| replacement | |||||
|
8
|
8
08361-3506A-000 NUT3AT; 1987-08-01~1988-07-01 |
08361-3506A-000 |
from US $0.80 |
||
|
9
|
9
11851-78111-000
フック,エンジン
3AT; 1987-08-01~1988-07-01 |
11851-78111-000 |
— | ||
| replacement | |||||
|
9
|
9
11851-62B00-000 HOOK3AT; 1987-08-01~1988-07-01 |
11851-62B00-000 |
from US $1.87 |
||
