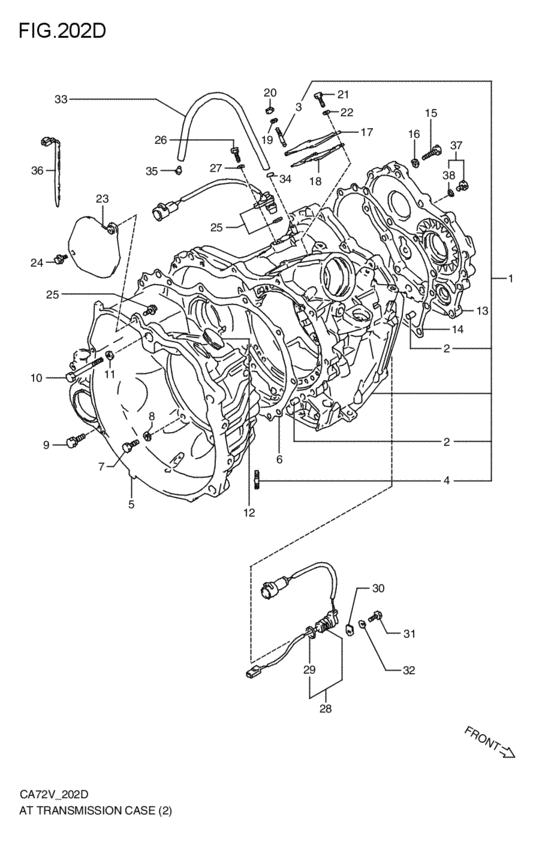

at - transmission case (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-55A11-000
ケースアッシ,トランスミッション
M.NO.8F00813マデ; 3AT; 1987-08-01~1988-07-01 |
24710-55A11-000 |
— | ||
|
1
|
1
24710-55A12-000
ケースアッシ,トランスミッション
M.NO.8F00814ヨリ; 3AT; 1987-08-01~1988-07-01 |
24710-55A12-000 |
— | ||
|
2
|
2
24791-78130-000
ピン
3AT; 1987-08-01~1988-07-01 |
24791-78130-000 |
— | ||
|
3
|
3
24889-55A10-000
スタッドボルト,セカンドブレーキバンドカバー
3AT; 1987-08-01~1988-07-01 |
24889-55A10-000 |
— | ||
|
4
|
4
01421-06126-000
STUD
3AT; 1987-08-01~1988-07-01 |
01421-06126-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0612A-000 BOLT,STUD3AT; 1987-08-01~1988-07-01 |
01421-0612A-000 |
from US $1.12 |
||
|
5
|
5
24721-55A10-000
ハウジング,トルクコンバータ
3AT; 1987-08-01~1988-07-01 |
24721-55A10-000 |
— | ||
|
6
|
6
24781-55A10-000
ガスケット,トランスミッションケース
3AT; 1987-08-01~1988-07-01 |
24781-55A10-000 |
— | ||
| replacement | |||||
|
6
|
6
24780-62DT0-000
GASKET SET,AT
3AT; 1987-08-01~1988-07-01 |
24780-62DT0-000 |
— | ||
|
7
|
7
01107-08253-000 Bolt m8x1.25x253AT; 1987-08-01~1988-07-01 |
01107-08253-000 |
from US $1.04 |
||
| replacement | |||||
|
7
|
7
01500-0825A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01500-0825A-000 |
from US $0.91 |
||
|
8
|
8
08321-21083-000
Washr,lk8.2x15.
3AT; 1987-08-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
8
|
8
08321-0108B-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
8
|
8
08321-0108A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108A-000 |
from US $0.88 |
||
|
9
|
9
24883-85500-000 BOLT,HOUSING3AT; 1987-08-01~1988-07-01 |
24883-85500-000 |
US $2.50 |
||
|
10
|
10
01107-08653-000
ボルト
3AT; 1987-08-01~1988-07-01 |
01107-08653-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0865B-000 Bolt3AT; 1987-08-01~1988-07-01 |
01500-0865B-000 |
from US $4.19 |
||
|
11
|
11
08321-21083-000
Washr,lk8.2x15.
3AT; 1987-08-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
11
|
11
08321-0108B-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
11
|
11
08321-0108A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108A-000 |
from US $0.88 |
||
|
12
|
12
09250-30003-000 CAP(OD:36)3AT; 1987-08-01~1988-07-01 |
09250-30003-000 |
from US $2.08 |
||
|
13
|
13
24730-55A10-000
カバー,トランスミッション,リヤ
3AT; 1987-08-01~1988-07-01 |
24730-55A10-000 |
— | ||
|
14
|
14
24782-55A10-000
ガスケット,トランスミッションリヤカバー
3AT; 1987-08-01~1988-07-01 |
24782-55A10-000 |
— | ||
|
15
|
15
01107-08353-000 ボルト3AT; 1987-08-01~1988-07-01 |
01107-08353-000 |
US $1.47 |
||
| replacement | |||||
|
15
|
15
01500-0835B-000 BoltBolt, muffler support 3AT; 1987-08-01~1988-07-01 |
01500-0835B-000 |
from US $0.96 |
||
|
16
|
16
08321-21083-000
Washr,lk8.2x15.
3AT; 1987-08-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0108A-000 |
from US $0.88 |
||
|
17
|
17
24741-55A10-000
カバー,セカンドブレーキバンド
3AT; 1987-08-01~1988-07-01 |
24741-55A10-000 |
— | ||
|
18
|
18
24783-55A10-000
ガスケット,セカンドブレーキバンドカバー
3AT; 1987-08-01~1988-07-01 |
24783-55A10-000 |
— | ||
|
19
|
19
08321-21063-000 Lock washer3AT; 1987-08-01~1988-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
08310-11063-000 Nut m6x1x53AT; 1987-08-01~1988-07-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
20
|
20
08310-0006B-000 NUTNut gear shift link rod 3AT; 1987-08-01~1988-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
20
|
20
08310-0006A-000 NUT3AT; 1987-08-01~1988-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
21
|
21
01107-06163-000 Bolt m6x1x163AT; 1987-08-01~1988-07-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
21
|
21
01500-0616A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01500-0616A-000 |
from US $0.76 |
||
|
22
|
22
08321-21063-000 Lock washer3AT; 1987-08-01~1988-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
23
|
23
24850-55A11-000
カバー,サービスホール
3AT; 1987-08-01~1988-07-01 |
24850-55A11-000 |
— | ||
|
24
|
24
01517-06123-000
Bolt
3AT; 1987-08-01~1988-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BoltBolt, clamp 3AT; 1987-08-01~1988-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
26141-55A10-000
SENSOR SPEED
3AT; 1987-08-01~1988-07-01 |
26141-55A10-000 |
— | ||
| replacement | |||||
|
25
|
25
26141-62D01-000 SENSOR,SPEED3AT; 1987-08-01~1988-07-01 |
26141-62D01-000 |
from US $78.84 |
||
|
26
|
26
01107-06163-000 Bolt m6x1x163AT; 1987-08-01~1988-07-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
26
|
26
01500-0616A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01500-0616A-000 |
from US $0.76 |
||
|
27
|
27
08321-21063-000 Lock washer3AT; 1987-08-01~1988-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
28
|
28
24751-55A10-000
HARNESS,SOLENOID WIRE
3AT; 1987-08-01~1988-07-01 |
24751-55A10-000 |
— | ||
|
29
|
29
24787-82300-000 O-RING,SOLENOID WIRE HARN3AT; 1987-08-01~1988-07-01 |
24787-82300-000 |
US $1.99 |
||
|
30
|
30
24742-82300-000 PLATE,SOLENOID WIRE HARN HOLD3AT; 1987-08-01~1988-07-01 |
24742-82300-000 |
US $2.13 |
||
|
31
|
31
01107-06163-000 Bolt m6x1x163AT; 1987-08-01~1988-07-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
31
|
31
01500-0616A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01500-0616A-000 |
from US $0.76 |
||
|
32
|
32
08321-21063-000 Lock washer3AT; 1987-08-01~1988-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
32
|
32
08321-0106A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
33
|
33
09352-70103-00B
HOSE(7X10.2X2000)
L:2000>380; 3AT; 1987-08-01~1988-07-01 |
09352-70103-00B |
— | ||
| replacement | |||||
|
33
|
33
09352-70104-00B Hose(7X10.2X2000)L:2000>380; 3AT; 1987-08-01~1988-07-01 |
09352-70104-00B |
from US $13.23 |
||
|
34
|
34
09401-10301-000 CLIP3AT; 1987-08-01~1988-07-01 |
09401-10301-000 |
US $11.80 |
||
|
35
|
35
24821-78000-000
プラグ,ブリーザ
3AT; 1987-08-01~1988-07-01 |
24821-78000-000 |
— | ||
| replacement | |||||
|
35
|
35
27991-65D01-000 PLUG,BREATHER3AT; 1987-08-01~1988-07-01 |
27991-65D01-000 |
from US $1.92 |
||
|
36
|
36
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 3AT; 1987-08-01~1988-07-01 |
09407-14403-000 |
from US $1.08 |
||
|
37
|
37
24822-78131-000
プラグ,ブースタ
3AT; 1987-08-01~1988-07-01 |
24822-78131-000 |
— | ||
| replacement | |||||
|
37
|
37
24820-62B00-000 PLUG,BOOSTER3AT; 1987-08-01~1988-07-01 |
24820-62B00-000 |
from US $2.48 |
||
|
38
|
38
24755-78130-000 O-RING3AT; 1987-08-01~1988-07-01 |
24755-78130-000 |
US $0.92 |
||
