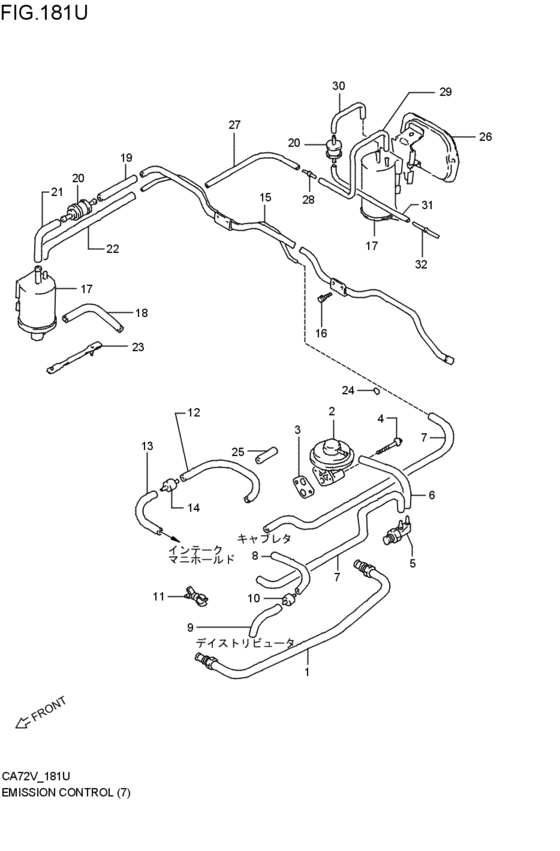

emission control (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18530-84000-000
パイプ,EGR
3AT; 1987-08-01~1988-07-01 |
18530-84000-000 |
— | ||
|
2
|
2
18520-78331-000
バルブ,EGR
3AT; 1987-08-01~1988-07-01 |
18520-78331-000 |
— | ||
| replacement | |||||
|
2
|
2
18111-81110-000
VALVE,EGR
3AT; 1987-08-01~1988-07-01 |
18111-81110-000 |
— | ||
|
3
|
3
18529-78101-000
ガスケット,EGRバルブ
3AT; 1987-08-01~1988-07-01 |
18529-78101-000 |
— | ||
| replacement | |||||
|
3
|
3
18529-60A00-000 GASKET,EGR VALVE3AT; 1987-08-01~1988-07-01 |
18529-60A00-000 |
from US $0.90 |
||
|
4
|
4
01537-06453-000
ボルト
3AT; 1987-08-01~1988-07-01 |
01537-06453-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0645A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01550-0645A-000 |
from US $0.96 |
||
|
5
|
5
18550-78101-000 VALVE ASSY,BIMETAL SW BVS3AT; 1987-08-01~1988-07-01 |
18550-78101-000 |
US $84.80 |
||
|
6
|
6
09343-03089-000
ホース,#3/3.5X7.5X80
3AT; 1987-08-01~1988-07-01 |
09343-03089-000 |
— | ||
| replacements | |||||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
09343-03098-000
ホース,#13/3.5X7.5X195
3AT; 1987-08-01~1988-07-01 |
09343-03098-000 |
— | ||
| replacements | |||||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09343-03079-000
New Genuine Part
3AT; 1987-08-01~1988-07-01 |
09343-03079-000 |
— | ||
| replacements | |||||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09343-03087-000
ホース,#2/3.5X7.5X50
3AT; 1987-08-01~1988-07-01 |
09343-03087-000 |
— | ||
| replacements | |||||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
18310-73030-000 VALVE,VACUUM TRANSMITTING3AT; 1987-08-01~1988-07-01 |
18310-73030-000 |
US $9.68 |
||
|
11
|
11
09408-00056-000 CLIP3AT; 1987-08-01~1988-07-01 |
09408-00056-000 |
from US $4.22 |
||
|
12
|
12
09343-03087-000
ホース,#2/3.5X7.5X50
3AT; 1987-08-01~1988-07-01 |
09343-03087-000 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09343-03090-000
ホース,#20/3.5X7.5X95
3AT; 1987-08-01~1988-07-01 |
09343-03090-000 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
18480-78120-000
バルブ,ディレイ(JET)
JET; 3AT; 1987-08-01~1988-07-01 |
18480-78120-000 |
— | ||
| replacement | |||||
|
14
|
14
18115-83010-000 JET,50CCJET; 3AT; 1987-08-01~1988-07-01 |
18115-83010-000 |
US $7.52 |
||
|
15
|
15
18340-84000-000
パイプ,パージ
3AT; 1987-08-01~1988-07-01 |
18340-84000-000 |
— | ||
|
16
|
16
01517-06103-000
BOLT 6X10
3AT; 1987-08-01~1988-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610A-000 Bolt3AT; 1987-08-01~1988-07-01 |
01550-0610A-000 |
from US $0.96 |
||
|
16
|
16
01550-0610B-000 BoltBolt 3AT; 1987-08-01~1988-07-01 |
01550-0610B-000 |
from US $0.96 |
||
|
17
|
17
18560-84000-000
キャニスタ
DENSO; 3AT; 1987-08-01~1988-07-01 |
18560-84000-000 |
— | ||
|
18
|
18
09358-35754-260
ホース,3.5X7.5X260
3AT; 1987-08-01~1988-07-01 |
09358-35754-260 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09354-54115-170
ホース,5.4X11.4X170
3AT; 1987-08-01~1988-07-01 |
09354-54115-170 |
— | ||
| replacement | |||||
|
19
|
19
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum 3AT; 1987-08-01~1988-07-01 |
09355-54115-600 |
from US $7.20 |
||
|
20
|
20
85451-75100-000 VALVE,2WAY CHECKValve, check 3AT; 1987-08-01~1988-07-01 |
85451-75100-000 |
from US $29.27 |
||
|
21
|
21
09354-54115-170
ホース,5.4X11.4X170
L:170>55; 3AT; 1987-08-01~1988-07-01 |
09354-54115-170 |
— | ||
| replacement | |||||
|
21
|
21
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:170>55; 3AT; 1987-08-01~1988-07-01 |
09355-54115-600 |
from US $7.20 |
||
|
22
|
22
09354-70123-170
ホース(7X12X170)
3AT; 1987-08-01~1988-07-01 |
09354-70123-170 |
— | ||
| replacements | |||||
|
22
|
22
09354-65113-600
HOSE(6.5X11.5X600)
3AT; 1987-08-01~1988-07-01 |
09354-65113-600 |
— | ||
|
22
|
22
44421-12FR0-000 HOSE3AT; 1987-08-01~1988-07-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
22
|
22
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) 3AT; 1987-08-01~1988-07-01 |
09355-70125-600 |
from US $6.54 |
||
|
22
|
22
09355-65001-600 Hose(6.5X11.5X600)3AT; 1987-08-01~1988-07-01 |
09355-65001-600 |
from US $14.74 |
||
|
23
|
23
09407-05405-000
Clamp (l:103)
3AT; 1987-08-01~1988-07-01 |
09407-05405-000 |
— | ||
| replacement | |||||
|
23
|
23
09407-05406-000 CLAMP(L:118)3AT; 1987-08-01~1988-07-01 |
09407-05406-000 |
from US $1.06 |
||
|
24
|
24
77111-78000-000
シール,ホール
3AT; 1987-08-01~1988-07-01 |
77111-78000-000 |
— | ||
| replacement | |||||
|
24
|
24
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 3AT; 1987-08-01~1988-07-01 |
84761-50X50-000 |
from US $6.72 |
||
|
25
|
25
13677-33200-000
Cap
3AT; 1987-08-01~1988-07-01 |
13677-33200-000 |
— | ||
|
26
|
26
18570-50A00-000
ブラケット,キャニスタ
3AT; 1987-08-01~1988-07-01 |
18570-50A00-000 |
— | ||
|
27
|
27
09343-03043-000
Hose,press regu
3AT; 1987-08-01~1988-07-01 |
09343-03043-000 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
3AT; 1987-08-01~1988-07-01 |
09355-35754-601 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601)3AT; 1987-08-01~1988-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
09367-04008-000 2 WAY3AT; 1987-08-01~1988-07-01 |
09367-04008-000 |
US $32 |
||
|
29
|
29
09358-35752-800
ホース,3.5X7.5X800
L:800>440; 3AT; 1987-08-01~1988-07-01 |
09358-35752-800 |
— | ||
| replacements | |||||
|
29
|
29
09355-35754-00B
HOSE(3.5X7.5X2000)
L:800>440; 3AT; 1987-08-01~1988-07-01 |
09355-35754-00B |
— | ||
|
29
|
29
09355-35006-00B Hose(3.5X7.5X2000)L:800>440; 3AT; 1987-08-01~1988-07-01 |
09355-35006-00B |
US $28.80 |
||
|
30
|
30
09343-05395-000
Hose
3AT; 1987-08-01~1988-07-01 |
09343-05395-000 |
— | ||
|
31
|
31
09359-54111-270
(ca)hose 5.4x11x270 "on"
L:270>85; 3AT; 1987-08-01~1988-07-01 |
09359-54111-270 |
— | ||
| replacement | |||||
|
31
|
31
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb L:270>85; 3AT; 1987-08-01~1988-07-01 |
09359-54111-600 |
from US $22.40 |
||
|
32
|
32
11192-82000-000 JOINT,PCV HOSE3AT; 1987-08-01~1988-07-01 |
11192-82000-000 |
US $2.87 |
||
