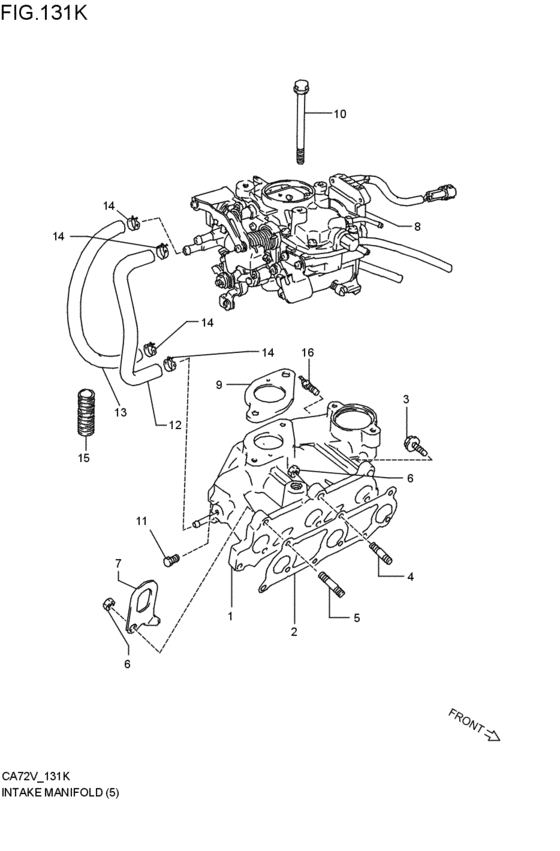

intake manifold (3AT:(N,G); 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-55A50-000
マニホールド,インテーク
フツウシヨウ; 3AT:(N,G); 1987-08-01~1988-07-01 |
13110-55A50-000 |
— | ||
|
1
|
1
13110-55A60-000
マニホールド,インテーク
カンレイチシヨウ; 3AT:(N,G); 1987-08-01~1988-07-01 |
13110-55A60-000 |
— | ||
|
2
|
2
13119-78111-000
ガスケット,インテークマニホールド
3AT:(N,G); 1987-08-01~1988-07-01 |
13119-78111-000 |
— | ||
| replacement | |||||
|
2
|
2
13119-84360-000 GASKET,INTK MANF3AT:(N,G); 1987-08-01~1988-07-01 |
13119-84360-000 |
from US $3.94 |
||
|
3
|
3
01517-08253-000
ボルト
3AT:(N,G); 1987-08-01~1988-07-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 Bolt3AT:(N,G); 1987-08-01~1988-07-01 |
01550-0825A-000 |
from US $0.47 |
||
|
3
|
3
01550-0825B-000 Bolt3AT:(N,G); 1987-08-01~1988-07-01 |
01550-0825B-000 |
from US $1.06 |
||
|
4
|
4
09108-08098-000
スタッドボルト
3AT:(N,G); 1987-08-01~1988-07-01 |
09108-08098-000 |
— | ||
| replacement | |||||
|
4
|
4
01411-0820B-000 BOLT,STUD3AT:(N,G); 1987-08-01~1988-07-01 |
01411-0820B-000 |
US $1.28 |
||
|
5
|
5
01411-08253-000
New Genuine Part
3AT:(N,G); 1987-08-01~1988-07-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01411-0825A-000 BOLT,STUD3AT:(N,G); 1987-08-01~1988-07-01 |
01411-0825A-000 |
US $1.28 |
||
|
6
|
6
08316-16083-000 NutNut 3AT:(N,G); 1987-08-01~1988-07-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT3AT:(N,G); 1987-08-01~1988-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
11851-84100-000
フック,エンジン
3AT:(N,G); 1987-08-01~1988-07-01 |
11851-84100-000 |
— | ||
| replacement | |||||
|
7
|
7
11851-62B00-000 HOOK3AT:(N,G); 1987-08-01~1988-07-01 |
11851-62B00-000 |
from US $1.87 |
||
|
8
|
8
13200-55A50-000
キャブレタアッシ
ゴクカンレイチシヨウ ノゾク; 3AT:(N,G); 1987-08-01~1988-07-01 |
13200-55A50-000 |
— | ||
|
8
|
8
13200-55A60-000
キャブレタアッシ
ゴクカンレイチシヨウ; 3AT:(N,G); 1987-08-01~1988-07-01 |
13200-55A60-000 |
— | ||
|
9
|
9
13121-84020-000
インシュレータ,キャブレタ
3AT:(N,G); 1987-08-01~1988-07-01 |
13121-84020-000 |
— | ||
| replacement | |||||
|
9
|
9
13121-72X51-000 INSULATOR,CARBURETOR3AT:(N,G); 1987-08-01~1988-07-01 |
13121-72X51-000 |
US $16.45 |
||
|
10
|
10
01537-08753-000
ボルト
3AT:(N,G); 1987-08-01~1988-07-01 |
01537-08753-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0875B-000 Bolt3AT:(N,G); 1987-08-01~1988-07-01 |
01550-0875B-000 |
from US $1.40 |
||
|
11
|
11
09246-04002-000
PLUG
3AT:(N,G); 1987-08-01~1988-07-01 |
09246-04002-000 |
— | ||
| replacement | |||||
|
11
|
11
09246-04005-000 PLUGPlug, cylinder head cover 3AT:(N,G); 1987-08-01~1988-07-01 |
09246-04005-000 |
from US $1.44 |
||
|
12
|
12
13191-51A00-000
ホース
ゴクカンレイチシヨウ; 3AT:(N,G); 1987-08-01~1988-07-01 |
13191-51A00-000 |
— | ||
|
12
|
12
09352-70121-13A
ホース,7X12X1130
L:1130>180 ゴクカンレイチ ノゾク; 3AT:(N,G); 1987-08-01~1988-07-01 |
09352-70121-13A |
— | ||
| replacement | |||||
|
12
|
12
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130>180 ゴクカンレイチ ノゾク; 3AT:(N,G); 1987-08-01~1988-07-01 |
09352-70121-00B |
from US $4.37 |
||
|
13
|
13
09352-70121-13A
ホース,7X12X1130
L:1130>235; 3AT:(N,G); 1987-08-01~1988-07-01 |
09352-70121-13A |
— | ||
| replacement | |||||
|
13
|
13
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130>235; 3AT:(N,G); 1987-08-01~1988-07-01 |
09352-70121-00B |
from US $4.37 |
||
|
14
|
14
09401-11404-000
クリップ
3AT:(N,G); 1987-08-01~1988-07-01 |
09401-11404-000 |
— | ||
| replacements | |||||
|
14
|
14
09401-11415-000 CLIP3AT:(N,G); 1987-08-01~1988-07-01 |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09401-11407-000
CLIP
3AT:(N,G); 1987-08-01~1988-07-01 |
09401-11407-000 |
— | ||
|
15
|
15
13998-54A00-000
プロテクタ,ターボチャージャホース
3AT:(N,G); 1987-08-01~1988-07-01 |
13998-54A00-000 |
— | ||
| replacement | |||||
|
15
|
15
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper 3AT:(N,G); 1987-08-01~1988-07-01 |
09352-13162-600 |
from US $11.40 |
||
|
16
|
16
34850-82001-000
Gauge assy, water temperature
DENSO; 3AT:(N,G); 1987-08-01~1988-07-01 |
34850-82001-000 |
— | ||
| replacement | |||||
|
16
|
16
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; 3AT:(N,G); 1987-08-01~1988-07-01 |
34850-50A00-000 |
from US $34.79 |
||
