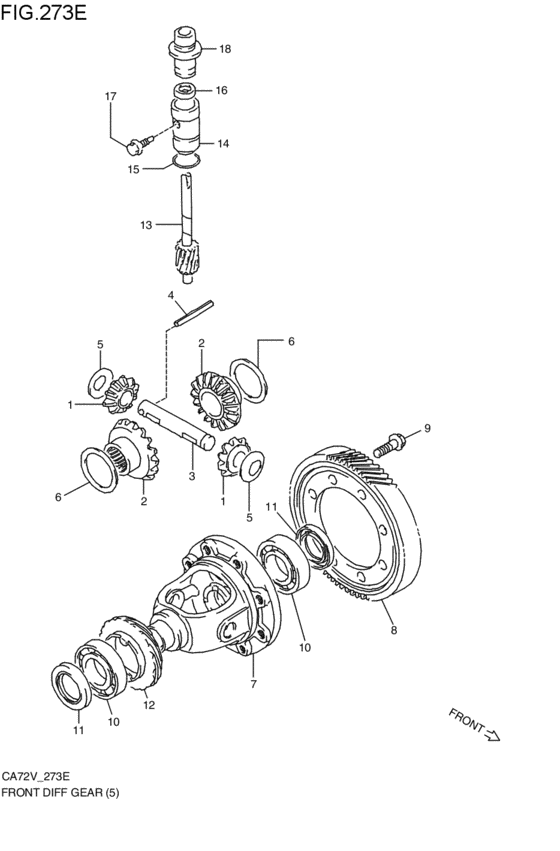

フロントデファレンシャルギヤ (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-82000-000
GEAR DFFI STAR PINION
3AT; 1987-08-01~1988-07-01 |
27331-82000-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL3AT; 1987-08-01~1988-07-01 |
27331-78FJ1-000 |
from US $25.94 |
||
|
2
|
2
27341-55A10-000
ギヤ,ディファレンシャル
3AT; 1987-08-01~1988-07-01 |
27341-55A10-000 |
— | ||
|
3
|
3
27351-79401-000
シャフト,ピニオン
3AT; 1987-08-01~1988-07-01 |
27351-79401-000 |
— | ||
| replacement | |||||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION3AT; 1987-08-01~1988-07-01 |
27351-62B00-000 |
from US $13.64 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)3AT; 1987-08-01~1988-07-01 |
09205-05003-000 |
from US $0.36 |
||
|
5
|
5
09164-15003-000 WASHER3AT; 1987-08-01~1988-07-01 |
09164-15003-000 |
from US $1.60 |
||
|
6
|
6
09160-32011-000
ワッシャ,32X43X0.9
3AT; 1987-08-01~1988-07-01 |
09160-32011-000 |
— | ||
|
6
|
6
09160-32012-000
ワッシャ,32X43X0.95
3AT; 1987-08-01~1988-07-01 |
09160-32012-000 |
— | ||
|
6
|
6
09160-32013-000
ワッシャ,32X43X1.0
3AT; 1987-08-01~1988-07-01 |
09160-32013-000 |
— | ||
|
6
|
6
09160-32014-000
ワッシャ,32X43X1.05
3AT; 1987-08-01~1988-07-01 |
09160-32014-000 |
— | ||
|
6
|
6
09160-32015-000
ワッシャ,32X43X1.1
3AT; 1987-08-01~1988-07-01 |
09160-32015-000 |
— | ||
|
6
|
6
09160-32016-000
ワッシャ,32X43X1.15
3AT; 1987-08-01~1988-07-01 |
09160-32016-000 |
— | ||
|
6
|
6
09160-32017-000
ワッシャ,32X43X1.2
3AT; 1987-08-01~1988-07-01 |
09160-32017-000 |
— | ||
|
7
|
7
27411-55A11-000
ケース,ディファレンシャル
3AT; 1987-08-01~1988-07-01 |
27411-55A11-000 |
— | ||
|
8
|
8
27511-55A10-000
ギヤ,ファイナル
M.NO.8E-01952マデ; 3AT; 1987-08-01~1988-07-01 |
27511-55A10-000 |
— | ||
|
8
|
8
27511-55A11-000
ギヤ,ファイナル
M.NO.8E-01953ヨリ; 3AT; 1987-08-01~1988-07-01 |
27511-55A11-000 |
— | ||
|
9
|
9
09103-10014-000 BOLT(10X27)3AT; 1987-08-01~1988-07-01 |
09103-10014-000 |
from US $0.77 |
||
|
10
|
10
08113-62060-000 BEARINGBearing, drive shaft rh 3AT; 1987-08-01~1988-07-01 |
08113-62060-000 |
from US $12.38 |
||
|
11
|
11
27611-55A10-000
シール,ディファレンシャルサイドオイル
3AT; 1987-08-01~1988-07-01 |
27611-55A10-000 |
— | ||
|
12
|
12
26121-55A10-000
ギヤ,スピードメータドライブ
3AT; 1987-08-01~1988-07-01 |
26121-55A10-000 |
— | ||
|
13
|
13
26131-55A11-000
ギヤ,スピードメータドリブン
NT:15; 3AT; 1987-08-01~1988-07-01 |
26131-55A11-000 |
— | ||
|
14
|
14
29431-80003-000 CASE SPEEDOMETERDRIVE3AT; 1987-08-01~1988-07-01 |
29431-80003-000 |
US $7.40 |
||
| replacement | |||||
|
14
|
14
29431-85400-000 CASE,SPEEDOMETER DRIVEN GEAR3AT; 1987-08-01~1988-07-01 |
29431-85400-000 |
from US $7.40 |
||
|
15
|
15
09280-19001-000 O RING(D:1.9,ID:18.8)O ring 3AT; 1987-08-01~1988-07-01 |
09280-19001-000 |
from US $0.59 |
||
|
16
|
16
09282-08001-000 SEAL,OIL(8X16X5)3AT; 1987-08-01~1988-07-01 |
09282-08001-000 |
from US $1.31 |
||
|
17
|
17
09135-06021-000
ボルト,6X16.1
3AT; 1987-08-01~1988-07-01 |
09135-06021-000 |
— | ||
|
18
|
18
26181-55A10-000
アダプタ,スピードメータケーブル
3AT; 1987-08-01~1988-07-01 |
26181-55A10-000 |
— | ||
