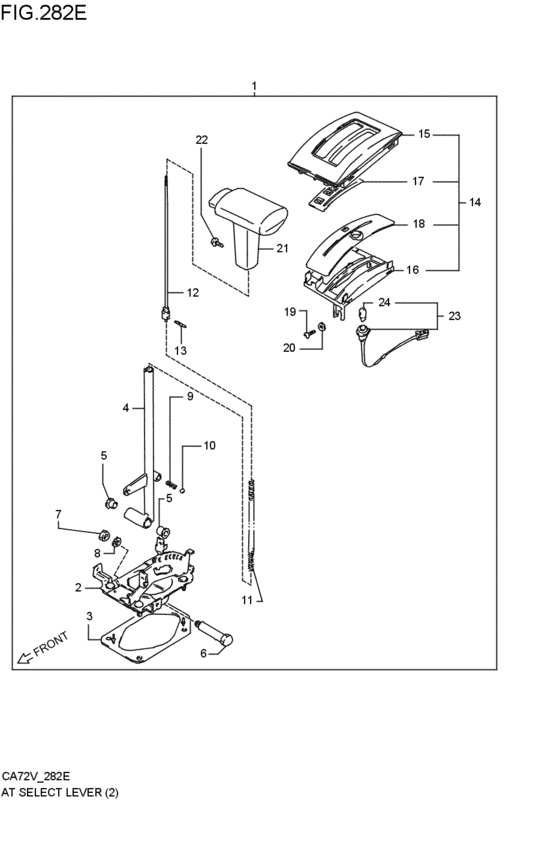

select lever (3AT; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-55A11-281
セレクタアッシ,マニュアル(ブラック)
ブラック; 3AT; 1987-08-01~1988-07-01 |
28100-55A11-281 |
— | ||
|
2
|
2
28112-55A11-000
ハウジング,セレクタ
3AT; 1987-08-01~1988-07-01 |
28112-55A11-000 |
— | ||
|
3
|
3
28115-82301-000
シート,セレクタレバーハウジング
3AT; 1987-08-01~1988-07-01 |
28115-82301-000 |
— | ||
| replacement | |||||
|
3
|
3
28115-82302-000
SHEET,SEL LEVER HOUSING
3AT; 1987-08-01~1988-07-01 |
28115-82302-000 |
— | ||
|
4
|
4
28111-55A10-000
レバー,セレクタ
3AT; 1987-08-01~1988-07-01 |
28111-55A10-000 |
— | ||
|
5
|
5
09306-13003-000 BUSHING3AT; 1987-08-01~1988-07-01 |
09306-13003-000 |
from US $0.63 |
||
|
6
|
6
28131-82300-000
SHAFT SELECT LEVER
3AT; 1987-08-01~1988-07-01 |
28131-82300-000 |
— | ||
|
7
|
7
08310-12103-000 Nut3AT; 1987-08-01~1988-07-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
7
|
7
08310-0010B-000 NUT3AT; 1987-08-01~1988-07-01 |
08310-0010B-000 |
from US $0.83 |
||
|
7
|
7
08310-0010A-000 NUT3AT; 1987-08-01~1988-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
8
|
8
08321-21103-000 Lock washer3AT; 1987-08-01~1988-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
8
|
8
08321-0110B-000 WASHER,LOCKWasher, knuckle end 3AT; 1987-08-01~1988-07-01 |
08321-0110B-000 |
from US $0.96 |
||
|
8
|
8
08321-0110A-000 WASHER,LOCK3AT; 1987-08-01~1988-07-01 |
08321-0110A-000 |
from US $0.96 |
||
|
9
|
9
09440-07005-000 SPRING3AT; 1987-08-01~1988-07-01 |
09440-07005-000 |
from US $0.92 |
||
|
10
|
10
06111-10003-000 BALL3AT; 1987-08-01~1988-07-01 |
06111-10003-000 |
from US $0.80 |
||
|
11
|
11
09440-08028-000
スプリング
3AT; 1987-08-01~1988-07-01 |
09440-08028-000 |
— | ||
|
12
|
12
28140-55A10-000
ロッド,デテントピンレリーズ
3AT; 1987-08-01~1988-07-01 |
28140-55A10-000 |
— | ||
|
13
|
13
28151-78231-000
ピン,デテント
3AT; 1987-08-01~1988-07-01 |
28151-78231-000 |
— | ||
|
14
|
14
28150-55A11-000
インジケータアッシ,セレクト
3AT; 1987-08-01~1988-07-01 |
28150-55A11-000 |
— | ||
|
15
|
15
28151-82300-000
カバー,インジケータ,アッパ
3AT; 1987-08-01~1988-07-01 |
28151-82300-000 |
— | ||
|
16
|
16
28152-82300-000
カバー,インジケータ,ロア
3AT; 1987-08-01~1988-07-01 |
28152-82300-000 |
— | ||
|
17
|
17
28153-55A11-000
プレート,セレクトポジション
3AT; 1987-08-01~1988-07-01 |
28153-55A11-000 |
— | ||
|
18
|
18
28154-82301-000
カバー,レバースライド
3AT; 1987-08-01~1988-07-01 |
28154-82301-000 |
— | ||
|
19
|
19
02112-05106-000
Screw
3AT; 1987-08-01~1988-07-01 |
02112-05106-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0510A-000 SCREW3AT; 1987-08-01~1988-07-01 |
02112-0510A-000 |
from US $0.76 |
||
|
20
|
20
08322-21056-000
Washer
3AT; 1987-08-01~1988-07-01 |
08322-21056-000 |
— | ||
| replacements | |||||
|
20
|
20
08322-0105B-000 WASHER3AT; 1987-08-01~1988-07-01 |
08322-0105B-000 |
from US $0.76 |
||
|
20
|
20
08322-0105A-000 WASHERWasher, front 3AT; 1987-08-01~1988-07-01 |
08322-0105A-000 |
from US $0.80 |
||
|
21
|
21
28160-82302-281
KNOB ASSY,SEL LEVER
ブラック; 3AT; 1987-08-01~1988-07-01 |
28160-82302-281 |
— | ||
|
22
|
22
02142-05065-000 SCREW 5X63AT; 1987-08-01~1988-07-01 |
02142-05065-000 |
US $0.72 |
||
| replacement | |||||
|
22
|
22
09125-05117-000 SCREW(5X6)Screw (5x6) 3AT; 1987-08-01~1988-07-01 |
09125-05117-000 |
from US $0.72 |
||
|
23
|
23
36550-82302-000
Lamp assy,illumination
3AT; 1987-08-01~1988-07-01 |
36550-82302-000 |
— | ||
|
24
|
24
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 3AT; 1987-08-01~1988-07-01 |
09471-12077-000 |
from US $1.52 |
||
