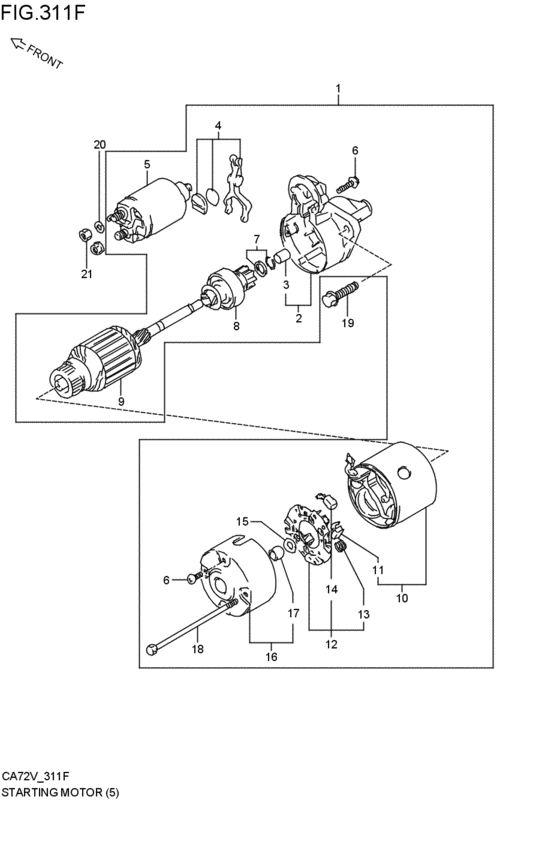

starting motor (3AT:2V:CARB; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-50A50-000
モータアッシ,スターティング
カンレイチシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31100-50A50-000 |
— | ||
|
1
|
1
31100-84131-000
モータアッシ,スターティング
フツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31100-84131-000 |
— | ||
|
2
|
2
31151-84131-000
ハウジングアッシ
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31151-84131-000 |
— | ||
|
3
|
3
31152-79030-000 BEARING,FRONT3AT:2V:CARB; 1987-08-01~1988-07-01 |
31152-79030-000 |
from US $5.11 |
||
|
4
|
4
31191-78141-000 LEVER ASSY3AT:2V:CARB; 1987-08-01~1988-07-01 |
31191-78141-000 |
US $17.85 |
||
|
5
|
5
31220-82230-000
SWITCH ASSY
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31220-82230-000 |
— | ||
| replacement | |||||
|
5
|
5
31220-84030-000 SWITCH ASSY3AT:2V:CARB; 1987-08-01~1988-07-01 |
31220-84030-000 |
from US $165.11 |
||
|
6
|
6
31136-79030-000 SCREW ASSY3AT:2V:CARB; 1987-08-01~1988-07-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
6
|
6
31175-79030-000 Screw Set3AT:2V:CARB; 1987-08-01~1988-07-01 |
31175-79030-000 |
US $8.16 |
||
|
7
|
7
31313-80090-000 RING SET3AT:2V:CARB; 1987-08-01~1988-07-01 |
31313-80090-000 |
from US $4.25 |
||
|
8
|
8
31320-50A30-000 CLUTCH ASSY3AT:2V:CARB; 1987-08-01~1988-07-01 |
31320-50A30-000 |
US $122.91 |
||
|
9
|
9
31311-50A30-000
アマチュア
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31311-50A30-000 |
— | ||
| replacement | |||||
|
9
|
9
31311-70D11-000
ARMATURE
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31311-70D11-000 |
— | ||
|
10
|
10
31110-50A30-000
ヨークアッシ
カンレイチシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31110-50A30-000 |
— | ||
|
10
|
10
31110-50A60-000
ヨークアッシ
フツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31110-50A60-000 |
— | ||
|
11
|
11
31131-80090-000 BRUSH(+)3AT:2V:CARB; 1987-08-01~1988-07-01 |
31131-80090-000 |
from US $8.84 |
||
|
12
|
12
31173-79030-000
HOLDER BRUSH
フツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31173-79030-000 |
— | ||
| replacement | |||||
|
12
|
12
31173-82130-000 HOLDER ASSY,BRUSHフツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31173-82130-000 |
from US $43.20 |
||
|
12
|
12
31173-82130-000 HOLDER ASSY,BRUSHカンレイチシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31173-82130-000 |
from US $43.20 |
||
|
13
|
13
31135-72030-000
SPRING BRUSH
フツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31135-72030-000 |
— | ||
|
14
|
14
31132-80090-000 BRUSH(-)フツウシヨウ; 3AT:2V:CARB; 1987-08-01~1988-07-01 |
31132-80090-000 |
from US $8.60 |
||
|
15
|
15
31361-79030-000 WASHER3AT:2V:CARB; 1987-08-01~1988-07-01 |
31361-79030-000 |
from US $5.20 |
||
|
16
|
16
31170-79030-000
ハウジングアッシ
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31170-79030-000 |
— | ||
|
17
|
17
31172-79030-000 BUSH3AT:2V:CARB; 1987-08-01~1988-07-01 |
31172-79030-000 |
from US $3.38 |
||
|
18
|
18
31261-79030-000
ボルト
3AT:2V:CARB; 1987-08-01~1988-07-01 |
31261-79030-000 |
— | ||
| replacement | |||||
|
18
|
18
31261-82130-000 Bolt3AT:2V:CARB; 1987-08-01~1988-07-01 |
31261-82130-000 |
from US $1.89 |
||
|
19
|
19
01517-08253-000
ボルト
3AT:2V:CARB; 1987-08-01~1988-07-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0825A-000 Bolt3AT:2V:CARB; 1987-08-01~1988-07-01 |
01550-0825A-000 |
from US $0.47 |
||
|
19
|
19
01550-0825B-000 Bolt3AT:2V:CARB; 1987-08-01~1988-07-01 |
01550-0825B-000 |
from US $1.06 |
||
|
20
|
20
08321-21086-000
Wsherlck8.2x15.2x1.6
3AT:2V:CARB; 1987-08-01~1988-07-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0108B-000 WASHER,LOCK3AT:2V:CARB; 1987-08-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
20
|
20
08321-0108A-000 WASHER,LOCK3AT:2V:CARB; 1987-08-01~1988-07-01 |
08321-0108A-000 |
from US $0.88 |
||
|
21
|
21
08310-12086-000
NUT
3AT:2V:CARB; 1987-08-01~1988-07-01 |
08310-12086-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0008A-000 NUTNut, bead stopper 3AT:2V:CARB; 1987-08-01~1988-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
21
|
21
08310-0008B-000 NUT3AT:2V:CARB; 1987-08-01~1988-07-01 |
08310-0008B-000 |
from US $0.96 |
||
