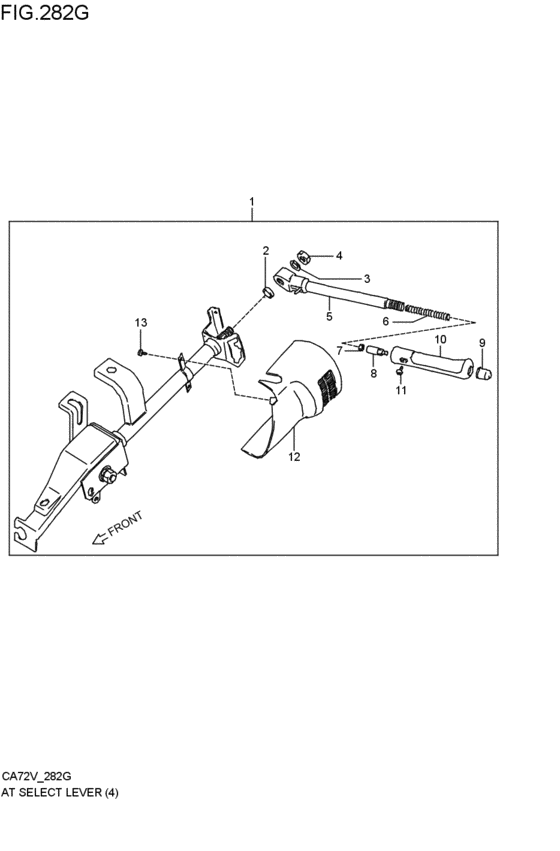

select lever (2AT:SW3; 1987-08-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- SW3
- number of the gears
- 2AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-55A02-281
セレクタアッシ,マニュアル(ブラック)
ブラック; 2AT:SW3; 1987-08-01~1988-07-01 |
28100-55A02-281 |
— | ||
|
2
|
2
28136-55A00-000
スペーサ
2AT:SW3; 1987-08-01~1988-07-01 |
28136-55A00-000 |
— | ||
|
3
|
3
08321-31105-000
Lock washer
2AT:SW3; 1987-08-01~1988-07-01 |
08321-31105-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end 2AT:SW3; 1987-08-01~1988-07-01 |
08321-0110B-000 |
from US $0.96 |
||
|
3
|
3
08321-0110A-000 WASHER,LOCK2AT:SW3; 1987-08-01~1988-07-01 |
08321-0110A-000 |
from US $0.96 |
||
|
4
|
4
08310-12105-000
Nut
2AT:SW3; 1987-08-01~1988-07-01 |
08310-12105-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT2AT:SW3; 1987-08-01~1988-07-01 |
08310-0010B-000 |
from US $0.83 |
||
|
4
|
4
08310-0010A-000 NUT2AT:SW3; 1987-08-01~1988-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
28120-55A01-000
レバー,セレクト
2AT:SW3; 1987-08-01~1988-07-01 |
28120-55A01-000 |
— | ||
|
6
|
6
28123-55A00-000
スプリング,デテントリターン
2AT:SW3; 1987-08-01~1988-07-01 |
28123-55A00-000 |
— | ||
|
7
|
7
08310-11043-000
ナット
2AT:SW3; 1987-08-01~1988-07-01 |
08310-11043-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0004A-000 NUT2AT:SW3; 1987-08-01~1988-07-01 |
08310-0004A-000 |
from US $3.15 |
||
|
8
|
8
28163-55A00-000
ガイド,プッシュボタン
2AT:SW3; 1987-08-01~1988-07-01 |
28163-55A00-000 |
— | ||
|
9
|
9
28164-55A01-281
ボタン,セレクタノブ(ブラック)
ブラック; 2AT:SW3; 1987-08-01~1988-07-01 |
28164-55A01-281 |
— | ||
|
10
|
10
28160-55A01-281
ノブ,セレクタ(ブラック)
ブラック; 2AT:SW3; 1987-08-01~1988-07-01 |
28160-55A01-281 |
— | ||
|
11
|
11
28138-55A00-000
スクリュ,ノブストップ
2AT:SW3; 1987-08-01~1988-07-01 |
28138-55A00-000 |
— | ||
|
12
|
12
28150-55A02-281
カバー,SELECROR(ブラック)
ブラック; 2AT:SW3; 1987-08-01~1988-07-01 |
28150-55A02-281 |
— | ||
|
13
|
13
03541-04085-000
Screw
2AT:SW3; 1987-08-01~1988-07-01 |
03541-04085-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0408A-000 SCREW2AT:SW3; 1987-08-01~1988-07-01 |
03541-0408A-000 |
from US $1.31 |
||
