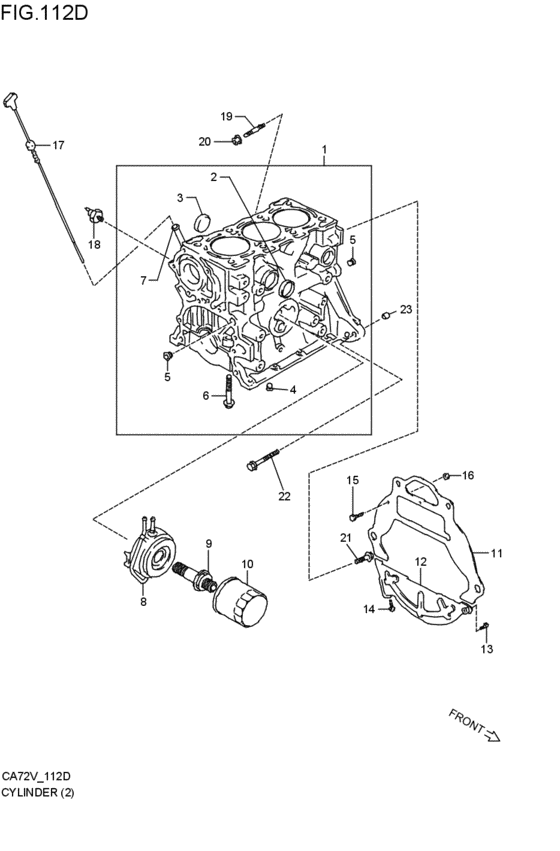

Cylinder (DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-54A51-000
ブロックアッシ,シリンダ
DOHC:TURBO; 1986-07-01~1988-07-01 |
11200-54A51-000 |
— | ||
|
2
|
2
09241-30002-000
プラグ,OD:30
DOHC:TURBO; 1986-07-01~1988-07-01 |
09241-30002-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUGDOHC:TURBO; 1986-07-01~1988-07-01 |
09241-30010-000 |
from US $2.23 |
||
|
3
|
3
09241-20002-000
WATER PLUG
DOHC:TURBO; 1986-07-01~1988-07-01 |
09241-20002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil DOHC:TURBO; 1986-07-01~1988-07-01 |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
09246-06001-000 PLUG(1/4PT,H:7.5)DOHC:TURBO; 1986-07-01~1988-07-01 |
09246-06001-000 |
from US $0.27 |
||
|
5
|
5
09246-06002-000 PLUGDOHC:TURBO; 1986-07-01~1988-07-01 |
09246-06002-000 |
US $0.63 |
||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUGDOHC:TURBO; 1986-07-01~1988-07-01 |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09103-10022-000
BOLT(10X54)
DOHC:TURBO; 1986-07-01~1988-07-01 |
09103-10022-000 |
— | ||
|
7
|
7
11219-53A00-000
ガイド,オイルレベルゲージ
DOHC:TURBO; 1986-07-01~1988-07-01 |
11219-53A00-000 |
— | ||
|
8
|
8
16600-54A51-000
クーラアッシ,オイル
DOHC:TURBO; 1986-07-01~1988-07-01 |
16600-54A51-000 |
— | ||
| replacement | |||||
|
8
|
8
16600-73B00-000
Cooler Assy,Oil
DOHC:TURBO; 1986-07-01~1988-07-01 |
16600-73B00-000 |
— | ||
|
9
|
9
11241-54A50-000
スタンド,オイルフィルタ
DOHC:TURBO; 1986-07-01~1988-07-01 |
11241-54A50-000 |
— | ||
| replacement | |||||
|
9
|
9
11241-54E00-000 STAND,OIL COOLERDOHC:TURBO; 1986-07-01~1988-07-01 |
11241-54E00-000 |
from US $31.99 |
||
|
10
|
10
16510-82701-000
フィルタ,オイル(TOKYO ROKI)
TOKYO ROKI; DOHC:TURBO; 1986-07-01~1988-07-01 |
16510-82701-000 |
— | ||
| replacements | |||||
|
10
|
10
16510-60B00-CDN
Oil Filter
TOKYO ROKI; DOHC:TURBO; 1986-07-01~1988-07-01 |
16510-60B00-CDN |
— | ||
|
10
|
10
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil TOKYO ROKI; DOHC:TURBO; 1986-07-01~1988-07-01 |
16510-82703-000 |
from US $14.38 |
||
|
11
|
11
11311-84200-000
プレート,クラッチハウジング,アッパ
DOHC:TURBO; 1986-07-01~1988-07-01 |
11311-84200-000 |
— | ||
|
12
|
12
11320-84200-000
プレート,クラッチハウジング,ロア
DOHC:TURBO; 1986-07-01~1988-07-01 |
11320-84200-000 |
— | ||
|
13
|
13
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) DOHC:TURBO; 1986-07-01~1988-07-01 |
09128-06044-000 |
from US $1.22 |
||
|
14
|
14
02112-06166-000
Screw
DOHC:TURBO; 1986-07-01~1988-07-01 |
02112-06166-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0616B-000 SCREWDOHC:TURBO; 1986-07-01~1988-07-01 |
02112-0616B-000 |
from US $0.96 |
||
|
14
|
14
02112-0616A-000 SCREWDOHC:TURBO; 1986-07-01~1988-07-01 |
02112-0616A-000 |
from US $0.76 |
||
|
15
|
15
01304-06168-000
ボルト
DOHC:TURBO; 1986-07-01~1988-07-01 |
01304-06168-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
01550-0616B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01500-06167-000 BoltBolt, fuel cooler DOHC:TURBO; 1986-07-01~1988-07-01 |
01500-06167-000 |
from US $0.72 |
||
|
16
|
16
08310-11063-000 Nut m6x1x5DOHC:TURBO; 1986-07-01~1988-07-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod DOHC:TURBO; 1986-07-01~1988-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUTDOHC:TURBO; 1986-07-01~1988-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
16910-53A00-000
ゲージ,オイルレベル
DOHC:TURBO; 1986-07-01~1988-07-01 |
16910-53A00-000 |
— | ||
|
18
|
18
37820-82001-000
Switch assy, oil pressure
DOHC:TURBO; 1986-07-01~1988-07-01 |
37820-82001-000 |
— | ||
| replacement | |||||
|
18
|
18
37820-820P0-000 SWITCH ASSY,OIL PRESSUREDOHC:TURBO; 1986-07-01~1988-07-01 |
37820-820P0-000 |
from US $12.67 |
||
|
19
|
19
01421-10403-000
New Genuine Part
DOHC:TURBO; 1986-07-01~1988-07-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
19
|
19
01421-1040A-000 BOLT,STUDDOHC:TURBO; 1986-07-01~1988-07-01 |
01421-1040A-000 |
from US $1.52 |
||
|
20
|
20
08316-16103-000 NutDOHC:TURBO; 1986-07-01~1988-07-01 |
08316-16103-000 |
from US $1.30 |
||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUTDOHC:TURBO; 1986-07-01~1988-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
01537-10403-000 ボルトDOHC:TURBO; 1986-07-01~1988-07-01 |
01537-10403-000 |
US $2.05 |
||
| replacements | |||||
|
21
|
21
01550-1040A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-1040A-000 |
from US $1.28 |
||
|
21
|
21
01550-1040B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-1040B-000 |
from US $3.56 |
||
|
22
|
22
01537-10453-000 ボルトDOHC:TURBO; 1986-07-01~1988-07-01 |
01537-10453-000 |
US $2.05 |
||
| replacement | |||||
|
22
|
22
01550-1045B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-1045B-000 |
from US $1.28 |
||
|
23
|
23
09206-13011-000
ノックピン,10.4X13X14
DOHC:TURBO; 1986-07-01~1988-07-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
23
|
23
04211-13149-000 PINDOHC:TURBO; 1986-07-01~1988-07-01 |
04211-13149-000 |
from US $1.44 |
||
