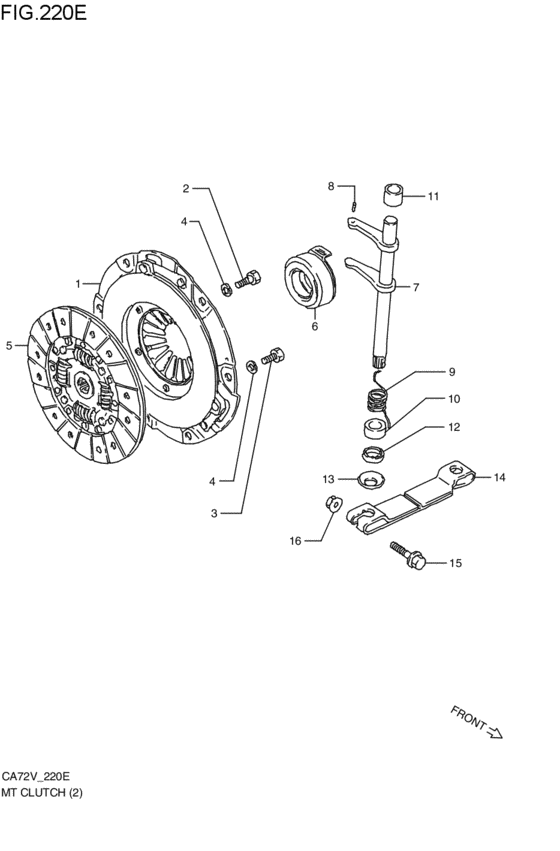

mt - clutch (MT:DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-54A01-000 COVER ASSY,CLUTCHMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
22100-54A01-000 |
US $125.12 |
||
|
2
|
2
09111-08035-000 BOLT(8X20)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09111-08035-000 |
from US $0.38 |
||
|
3
|
3
01107-08163-000
Bolt m8x1.25x16
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01107-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01500-0816B-000 BoltBolt MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01500-0816B-000 |
from US $0.96 |
||
|
3
|
3
01500-08163-000
Bolt
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01500-08163-000 |
— | ||
|
4
|
4
08321-21083-000
Washr,lk8.2x15.
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCKMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCKMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08321-0108A-000 |
from US $0.96 |
||
|
5
|
5
22400-54A00-000
ディスク,クラッチ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
22400-54A00-000 |
— | ||
| replacement | |||||
|
5
|
5
22400-70GV0-000
DISC,CLUTCH
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
22400-70GV0-000 |
— | ||
|
6
|
6
09269-28004-000 BEARING(28X58X22)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09269-28004-000 |
from US $50.92 |
||
|
7
|
7
23260-84200-000
シャフト,クラッチレリーズ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
23260-84200-000 |
— | ||
|
8
|
8
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03019-000 |
from US $0.81 |
||
|
9
|
9
09448-20008-000
スプリング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09448-20008-000 |
— | ||
| replacement | |||||
|
9
|
9
09448-20008-XC0
SPRING
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09448-20008-XC0 |
— | ||
|
10
|
10
09300-14017-000 BUSH(14X22X15)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09300-14017-000 |
from US $2.13 |
||
|
11
|
11
09300-14016-000 BUSH(14X18X20)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09300-14016-000 |
US $2.24 |
||
|
12
|
12
09284-14005-000
オイルシール,14X22X6
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09284-14005-000 |
— | ||
| replacements | |||||
|
12
|
12
09283-14006-000 SEAL,OIL(14X22X6)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14006-000 |
from US $5.69 |
||
|
12
|
12
09283-14005-000
SEAL,OIL(14X22X7.3)
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14005-000 |
— | ||
|
13
|
13
23268-82000-000
カバー,クラッチレリーズシャフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
23268-82000-000 |
— | ||
|
14
|
14
23266-84201-000
アーム,クラッチレリーズ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
23266-84201-000 |
— | ||
| replacement | |||||
|
14
|
14
23266-82070-000 ARM,CLUTCH RELEASEMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
23266-82070-000 |
US $11.72 |
||
|
15
|
15
01517-08353-000
Bolt
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0835B-000 |
from US $1.28 |
||
|
15
|
15
01550-0835A-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
08316-16083-000 NutNut MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUTMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08316-1008B-000 |
from US $0.76 |
||
