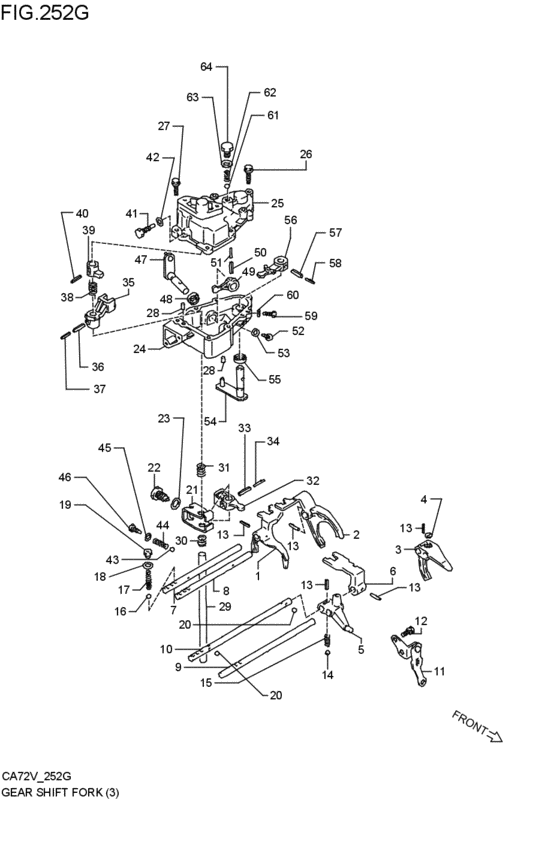

mt - gearlever fork (MT:DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-84203-000
フォーク,ロースピードギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25211-84203-000 |
— | ||
|
2
|
2
25221-54A03-000
フォーク,ハイスピードギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25221-54A03-000 |
— | ||
|
3
|
3
25231-82050-000
FORK 5TH GEAR SHAFT
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25231-82050-000 |
— | ||
|
4
|
4
09123-10001-000
スクリュ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09123-10001-000 |
— | ||
|
5
|
5
25251-54A01-000
アーム,リバースギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25251-54A01-000 |
— | ||
|
6
|
6
25261-84200-000
ヨーク,フィフス/リバースギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25261-84200-000 |
— | ||
|
7
|
7
25411-82001-000
SHAFT LOW SPEED GEAR SHIFT
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25411-82001-000 |
— | ||
|
8
|
8
25421-82001-000
SHAFT HIGH SPEED GEAR SHIFT
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25421-82001-000 |
— | ||
|
9
|
9
25431-82050-000
SHAFT 5TH REV GEAR SHIFT GUIDE
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25431-82050-000 |
— | ||
|
10
|
10
25451-82052-000
SHAFT REV GEAR SHIFT
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25451-82052-000 |
— | ||
|
11
|
11
25460-54A00-000
レバー,リバースギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25460-54A00-000 |
— | ||
|
12
|
12
09117-08050-000 BOLT(8X20)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09117-08050-000 |
from US $0.50 |
||
|
13
|
13
09205-04009-000 PIN,SPRING(4.5X20)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
13
|
13
09205-04015-000 PIN,SPRING(4.5X20)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-04015-000 |
from US $3.56 |
||
|
14
|
14
06111-10003-000 BALLMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.96 |
||
|
15
|
15
09440-07042-000
スプリング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-07042-000 |
— | ||
|
16
|
16
06111-10003-000 BALLMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.96 |
||
|
17
|
17
09440-07032-000
Spring
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-07032-000 |
— | ||
|
18
|
18
08322-11103-000 WASHER 105X18X16MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
18
|
18
08322-0110A-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
18
|
18
08322-0110B-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110B-000 |
from US $0.76 |
||
|
19
|
19
09128-10002-000 BOLT(10X9)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
|
20
|
20
06111-10003-000 BALLMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.96 |
||
|
21
|
21
25311-82001-000
PLATEGEAR SHFT INTERLOCK
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25311-82001-000 |
— | ||
|
22
|
22
25321-84200-000
ボルト,ギヤシフトロケイティング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25321-84200-000 |
— | ||
|
23
|
23
09160-16028-000 Washer (16.2x22x1)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09160-16028-000 |
US $2.63 |
||
| replacement | |||||
|
23
|
23
09160-16043-000 WASHER(16.5X22X1)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09160-16043-000 |
from US $1.12 |
||
|
24
|
24
25575-84250-000
ケース,ギヤシフトコントロール,ロア
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25575-84250-000 |
— | ||
|
25
|
25
25573-84250-000
ケース,ギヤシフトコントロール,アッパ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25573-84250-000 |
— | ||
|
26
|
26
01517-06403-000
ボルト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-06403-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-0640B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0640B-000 |
from US $0.96 |
||
|
27
|
27
01537-06703-000 ボルトMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01537-06703-000 |
US $2.40 |
||
| replacement | |||||
|
27
|
27
01550-0670B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0670B-000 |
from US $4.80 |
||
|
28
|
28
04221-06129-000 PINMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
04221-06129-000 |
from US $0.96 |
||
|
29
|
29
25571-84251-000
シャフト,ギヤシフト/セレクト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25571-84251-000 |
— | ||
|
30
|
30
09440-17014-000
スプリング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-17014-000 |
— | ||
|
31
|
31
09440-17013-000 スプリングMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-17013-000 |
from US $8.13 |
||
| replacement | |||||
|
31
|
31
09440-17009-000 SPRINGSpring.gear shift plate MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-17009-000 |
from US $1.48 |
||
|
32
|
32
25541-82000-000
Lever,gear shft/select
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25541-82000-000 |
— | ||
|
33
|
33
09205-06004-000 PIN,SPRING(6X28)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06004-000 |
from US $0.36 |
||
|
34
|
34
09205-03016-000 PIN,SPRING(3.5X28)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03016-000 |
from US $0.41 |
||
|
35
|
35
25531-84250-000
ヨーク,ギヤシフトコントロール
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25531-84250-000 |
— | ||
|
36
|
36
09205-06014-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06014-000 |
— | ||
| replacements | |||||
|
36
|
36
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06007-000 |
from US $1.04 |
||
|
36
|
36
09205-06016-000 PIN,SPRING(6X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06016-000 |
from US $0.43 |
||
|
37
|
37
09205-03034-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03034-000 |
— | ||
| replacement | |||||
|
37
|
37
09205-03037-000 PIN,SPRING(3X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03037-000 |
from US $0.77 |
||
|
38
|
38
09448-16028-000
スプリング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09448-16028-000 |
— | ||
|
39
|
39
25582-84250-000
ガイド,フィフスツーリバースシフトインタロック
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25582-84250-000 |
— | ||
|
40
|
40
09205-05005-000
スプリングピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-05005-000 |
— | ||
| replacement | |||||
|
40
|
40
09205-05013-000 PIN,SPRING(5X22)Pin, spring (5x22) MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-05013-000 |
from US $2.94 |
||
|
41
|
41
25584-84250-000
ボルト,フィフスツーリバースインタロックガイド
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25584-84250-000 |
— | ||
|
42
|
42
08322-11083-000 WasherWasher MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
42
|
42
08322-0108B-000 WASHERMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0108B-000 |
from US $0.96 |
||
|
42
|
42
08322-0108A-000 WASHERMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0108A-000 |
from US $0.96 |
||
|
43
|
43
06111-10003-000 BALLMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.96 |
||
|
44
|
44
09440-07050-000
スプリング
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-07050-000 |
— | ||
| replacement | |||||
|
44
|
44
09440-07051-000 SPRINGMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-07051-000 |
from US $3.04 |
||
|
45
|
45
08322-11103-000 WASHER 105X18X16MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
45
|
45
08322-0110A-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
45
|
45
08322-0110B-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110B-000 |
from US $0.76 |
||
|
46
|
46
09128-10002-000 BOLT(10X9)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
|
47
|
47
25550-84250-000
レバー,ギヤセレクト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25550-84250-000 |
— | ||
|
48
|
48
09283-14005-000
SEAL,OIL(14X22X7.3)
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14005-000 |
— | ||
| replacement | |||||
|
48
|
48
09283-14006-000 SEAL,OIL(14X22X6)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14006-000 |
from US $3.87 |
||
|
49
|
49
25535-84252-000
アーム,ギヤセレクトコントロール
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25535-84252-000 |
— | ||
|
50
|
50
09205-06014-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06014-000 |
— | ||
| replacements | |||||
|
50
|
50
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06007-000 |
from US $1.04 |
||
|
50
|
50
09205-06016-000 PIN,SPRING(6X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06016-000 |
from US $0.43 |
||
|
51
|
51
09205-03034-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03034-000 |
— | ||
| replacement | |||||
|
51
|
51
09205-03037-000 PIN,SPRING(3X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03037-000 |
from US $0.77 |
||
|
52
|
52
25537-84250-000
ボルト,ギヤシフトシャフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25537-84250-000 |
— | ||
|
53
|
53
08322-21063-000
Washer
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
53
|
53
08322-0106B-000 WASHERMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0106B-000 |
from US $0.76 |
||
|
54
|
54
25590-84250-000
レバー,ギヤシフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25590-84250-000 |
— | ||
|
55
|
55
09283-14005-000
SEAL,OIL(14X22X7.3)
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14005-000 |
— | ||
| replacement | |||||
|
55
|
55
09283-14006-000 SEAL,OIL(14X22X6)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09283-14006-000 |
from US $3.87 |
||
|
56
|
56
25521-84251-000
アーム,ギヤシフトコントロール
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25521-84251-000 |
— | ||
|
57
|
57
09205-06014-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06014-000 |
— | ||
| replacements | |||||
|
57
|
57
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06007-000 |
from US $1.04 |
||
|
57
|
57
09205-06016-000 PIN,SPRING(6X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-06016-000 |
from US $0.43 |
||
|
58
|
58
09205-03034-000
ピン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03034-000 |
— | ||
| replacement | |||||
|
58
|
58
09205-03037-000 PIN,SPRING(3X25)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09205-03037-000 |
from US $0.77 |
||
|
59
|
59
25537-84250-000
ボルト,ギヤシフトシャフト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
25537-84250-000 |
— | ||
|
60
|
60
08322-21063-000
Washer
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
60
|
60
08322-0106B-000 WASHERMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0106B-000 |
from US $0.76 |
||
|
61
|
61
06111-10003-000 BALLMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.96 |
||
|
62
|
62
09440-07005-000 SPRINGMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09440-07005-000 |
from US $0.92 |
||
|
63
|
63
08322-11103-000 WASHER 105X18X16MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
63
|
63
08322-0110A-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
63
|
63
08322-0110B-000 WASHERWasher, knuckle end MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0110B-000 |
from US $0.76 |
||
|
64
|
64
09128-10002-000 BOLT(10X9)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
