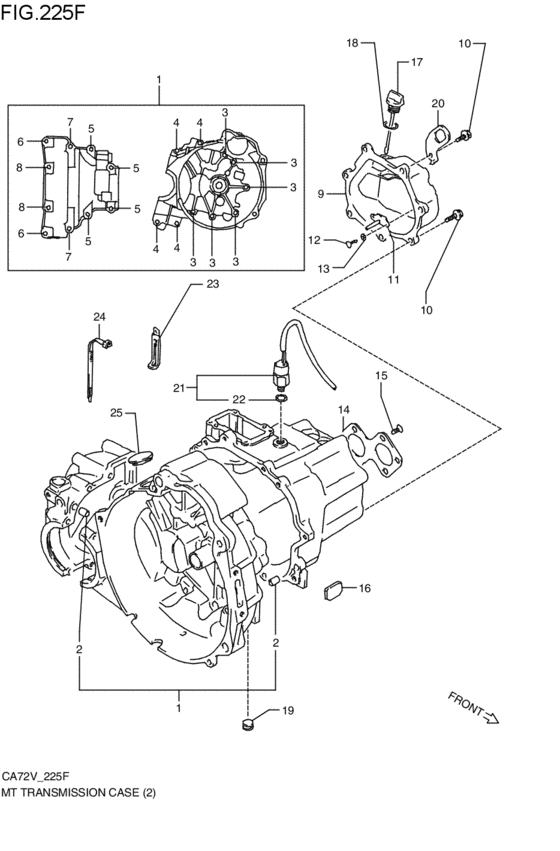

mt - transmission case (MT:DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-54A03-000
ケースアッシ,トランスミッション
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24700-54A03-000 |
— | ||
|
2
|
2
04211-09169-000 PINMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
04211-09169-000 |
from US $0.68 |
||
|
3
|
3
01517-08353-000
Bolt
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0835B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0835B-000 |
from US $1.28 |
||
|
3
|
3
01550-0835A-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
4
|
4
01517-08503-000
ボルト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08503-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0850A-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0850A-000 |
from US $5 |
||
|
4
|
4
01550-0850B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0850B-000 |
from US $1.22 |
||
|
5
|
5
01517-08553-000
ボルト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08553-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0855A-000 BoltBolt, gear holder MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0855A-000 |
from US $1.22 |
||
|
5
|
5
01550-0855B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0855B-000 |
from US $1.44 |
||
|
6
|
6
01537-08803-000 ボルトMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01537-08803-000 |
US $2.03 |
||
| replacements | |||||
|
6
|
6
01550-0880B-000 BoltBolt, muffler bracket & stand MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0880B-000 |
from US $3.05 |
||
|
6
|
6
01550-0880A-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0880A-000 |
from US $1.67 |
||
|
7
|
7
01517-08903-000
ボルト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08903-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0890B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0890B-000 |
from US $7.31 |
||
|
8
|
8
09104-08028-000
ボルト,8X120
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09104-08028-000 |
— | ||
|
9
|
9
24731-54A00-000
ケース,トランスミッション,サイド
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24731-54A00-000 |
— | ||
|
10
|
10
01517-08253-000
ボルト
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825A-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0825A-000 |
from US $0.47 |
||
|
10
|
10
01550-0825B-000 BoltMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0825B-000 |
from US $1.06 |
||
|
11
|
11
24735-54A00-000
カップ,インプットシャフトオイルレシーバ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24735-54A00-000 |
— | ||
|
12
|
12
02112-03066-000
Screw
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
02112-03066-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0306B-000 SCREWMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
02112-0306B-000 |
from US $2.52 |
||
|
13
|
13
08322-21036-000
Washer
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-21036-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0103B-000 WASHERMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
08322-0103B-000 |
from US $3.86 |
||
|
14
|
14
24725-82001-000
PLATE TM LEFT CASE
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24725-82001-000 |
— | ||
|
15
|
15
09120-06002-000
Screw (6x16)
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09120-06002-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-0616B-000 SCREWScrew, intake pipe MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
02122-0616B-000 |
from US $0.80 |
||
|
16
|
16
24718-52A00-000
MAGNET,T/M CASE
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24718-52A00-000 |
— | ||
|
17
|
17
24830-54A00-000 GAUGE,OIL LEVELMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
24830-54A00-000 |
US $6.29 |
||
|
18
|
18
09280-18005-000 O RING(D:2,ID:16.5)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09280-18005-000 |
from US $0.23 |
||
|
19
|
19
09246-16004-000
PLUG
マグネットナシ; MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09246-16004-000 |
— | ||
| replacements | |||||
|
19
|
19
09246-16010-000 PLUGマグネットナシ; MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09246-16010-000 |
US $4.37 |
||
|
19
|
19
09246-16021-000 Plug,t/m Oil Drainマグネットナシ; MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09246-16021-000 |
from US $4.37 |
||
|
20
|
20
11851-78111-000
フック,エンジン
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
11851-78111-000 |
— | ||
| replacement | |||||
|
20
|
20
11851-62B00-000 HOOKMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
11851-62B00-000 |
from US $1.87 |
||
|
21
|
21
37610-50A00-000
スイッチアッシ,バックアップランプ
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
37610-50A00-000 |
— | ||
| replacement | |||||
|
21
|
21
37610-50A01-000 SWITCH ASSY,BACK UP LAMPMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
37610-50A01-000 |
US $26.68 |
||
|
22
|
22
37611-50A00-000 O-RINGMT:DOHC:TURBO; 1986-07-01~1988-07-01 |
37611-50A00-000 |
US $2.69 |
||
|
23
|
23
09404-06413-000
Clamp throttle
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09404-06413-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-06432-000
CLAMP(L:65)
MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09404-06432-000 |
— | ||
|
23
|
23
09404-06039-000 Clamp(L:65)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09404-06039-000 |
from US $1.82 |
||
|
24
|
24
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09407-14403-000 |
from US $1.08 |
||
|
25
|
25
09250-30003-000 CAP(OD:36)MT:DOHC:TURBO; 1986-07-01~1988-07-01 |
09250-30003-000 |
from US $2.08 |
||
