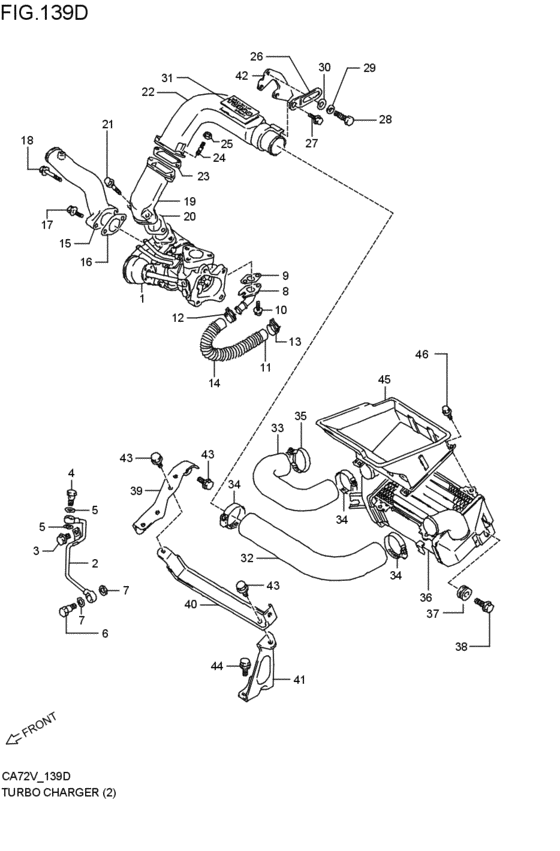

turbo charger (DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13900-54A50-000
チャージャアッシ,ターボ
DOHC:TURBO; 1986-07-01~1988-07-01 |
13900-54A50-000 |
— | ||
|
2
|
2
13930-54A50-000
パイプ,ターボオイルインテーク
DOHC:TURBO; 1986-07-01~1988-07-01 |
13930-54A50-000 |
— | ||
|
3
|
3
01517-08123-000
BOLT 8X12
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0812B-000 BoltPlug, drain DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0812B-000 |
from US $0.96 |
||
|
3
|
3
01550-0812A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0812A-000 |
from US $0.91 |
||
|
4
|
4
13948-85550-000
ボルト,ユニオン
DOHC:TURBO; 1986-07-01~1988-07-01 |
13948-85550-000 |
— | ||
| replacement | |||||
|
4
|
4
13948-85560-000 BOLT,UNION 8X20DOHC:TURBO; 1986-07-01~1988-07-01 |
13948-85560-000 |
US $5.92 |
||
|
5
|
5
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) DOHC:TURBO; 1986-07-01~1988-07-01 |
09168-08016-000 |
from US $1.22 |
||
|
6
|
6
09360-10023-000
Union
DOHC:TURBO; 1986-07-01~1988-07-01 |
09360-10023-000 |
— | ||
|
7
|
7
09168-10025-000
ガスケット,10X14X1
DOHC:TURBO; 1986-07-01~1988-07-01 |
09168-10025-000 |
— | ||
| replacement | |||||
|
7
|
7
09161-10009-000 WASHER(10X15X1.5)Lock washer DOHC:TURBO; 1986-07-01~1988-07-01 |
09161-10009-000 |
from US $1.06 |
||
|
8
|
8
13940-54A60-000
ジョイント,オイルドレーン
DOHC:TURBO; 1986-07-01~1988-07-01 |
13940-54A60-000 |
— | ||
|
9
|
9
13945-82171-000
ガスケット,オイルドレーン
DOHC:TURBO; 1986-07-01~1988-07-01 |
13945-82171-000 |
— | ||
| replacement | |||||
|
9
|
9
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain DOHC:TURBO; 1986-07-01~1988-07-01 |
13945-70G50-000 |
from US $4.68 |
||
|
10
|
10
01517-06123-000
Bolt
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
13946-54A50-000
Hose,turbo oil drain
DOHC:TURBO; 1986-07-01~1988-07-01 |
13946-54A50-000 |
— | ||
|
12
|
12
09401-18402-000 CLAMPDOHC:TURBO; 1986-07-01~1988-07-01 |
09401-18402-000 |
from US $1.10 |
||
| replacement | |||||
|
12
|
12
09401-18404-000 CLIPDOHC:TURBO; 1986-07-01~1988-07-01 |
09401-18404-000 |
from US $1.37 |
||
|
13
|
13
09401-20402-000
Clip, air hose no.3
DOHC:TURBO; 1986-07-01~1988-07-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-20406-000 CLIPDOHC:TURBO; 1986-07-01~1988-07-01 |
09401-20406-000 |
US $1.98 |
||
|
14
|
14
13971-81050-000
プロテクタ,オイルドレーン
DOHC:TURBO; 1986-07-01~1988-07-01 |
13971-81050-000 |
— | ||
| replacement | |||||
|
14
|
14
13971-8105V-000 INSULATOR,OIL DRAINDOHC:TURBO; 1986-07-01~1988-07-01 |
13971-8105V-000 |
US $12.16 |
||
|
15
|
15
13951-54A50-000
パイプ,ターボインテークエア
DOHC:TURBO; 1986-07-01~1988-07-01 |
13951-54A50-000 |
— | ||
|
16
|
16
13955-82150-000
ガスケット,インテークパイプエア
DOHC:TURBO; 1986-07-01~1988-07-01 |
13955-82150-000 |
— | ||
| replacement | |||||
|
16
|
16
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe DOHC:TURBO; 1986-07-01~1988-07-01 |
13955-56F00-000 |
US $2.28 |
||
|
17
|
17
01517-06203-000
Bolt
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0620B-000 BoltBolt, inspection cap DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
01550-0620A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
18
|
18
01537-06403-000
New Genuine Part
DOHC:TURBO; 1986-07-01~1988-07-01 |
01537-06403-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0640B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0640B-000 |
from US $1.12 |
||
|
19
|
19
13962-54A50-000
パイプ,ターボアウトエア,NO.2
DOHC:TURBO; 1986-07-01~1988-07-01 |
13962-54A50-000 |
— | ||
|
20
|
20
13965-81050-000
ガスケット,アウトレットパイプエア
DOHC:TURBO; 1986-07-01~1988-07-01 |
13965-81050-000 |
— | ||
| replacement | |||||
|
20
|
20
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe DOHC:TURBO; 1986-07-01~1988-07-01 |
13965-56F00-000 |
US $2.40 |
||
|
21
|
21
01537-06403-000
New Genuine Part
DOHC:TURBO; 1986-07-01~1988-07-01 |
01537-06403-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0640B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0640B-000 |
from US $1.12 |
||
|
22
|
22
13960-54A50-000
パイプ,ターボアウトエア,NO.1
DOHC:TURBO; 1986-07-01~1988-07-01 |
13960-54A50-000 |
— | ||
|
23
|
23
13969-54A50-000
GASKET,TURBO OUTLET AIR PIPE
DOHC:TURBO; 1986-07-01~1988-07-01 |
13969-54A50-000 |
— | ||
|
24
|
24
01421-06163-000
Bolt
DOHC:TURBO; 1986-07-01~1988-07-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
01421-0616A-000 BOLT,STUDDOHC:TURBO; 1986-07-01~1988-07-01 |
01421-0616A-000 |
from US $1.07 |
||
|
25
|
25
08316-16063-000 NutDOHC:TURBO; 1986-07-01~1988-07-01 |
08316-16063-000 |
from US $1.58 |
||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUTDOHC:TURBO; 1986-07-01~1988-07-01 |
08316-1006B-000 |
from US $0.80 |
||
|
26
|
26
13995-54A60-000
ブラケット,ターボアウトエアパイプ
DOHC:TURBO; 1986-07-01~1988-07-01 |
13995-54A60-000 |
— | ||
|
27
|
27
01517-08163-000
Bolt 8 x 16
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0816B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
27
|
27
01550-0816A-000 BoltBolt, rear DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
28
|
28
01107-08203-000
Bolt
DOHC:TURBO; 1986-07-01~1988-07-01 |
01107-08203-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-0820A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01500-0820A-000 |
from US $0.80 |
||
|
29
|
29
08321-21083-000
Washr,lk8.2x15.
DOHC:TURBO; 1986-07-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
29
|
29
08321-0108B-000 WASHER,LOCKDOHC:TURBO; 1986-07-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
29
|
29
08321-0108A-000 WASHER,LOCKDOHC:TURBO; 1986-07-01~1988-07-01 |
08321-0108A-000 |
from US $0.96 |
||
|
30
|
30
09160-08094-000 Washer 8x22x3Washer (8.2x20x1.6) DOHC:TURBO; 1986-07-01~1988-07-01 |
09160-08094-000 |
US $1.47 |
||
| replacements | |||||
|
30
|
30
09160-08054-000 WASHER(8.5X20X1.6)DOHC:TURBO; 1986-07-01~1988-07-01 |
09160-08054-000 |
from US $0.91 |
||
|
30
|
30
09160-08124-000 WASHER(8.5X20X1.6)DOHC:TURBO; 1986-07-01~1988-07-01 |
09160-08124-000 |
from US $0.77 |
||
|
31
|
31
13964-54A50-000
プレート,ターボアウトエアパイプ
DOHC:TURBO; 1986-07-01~1988-07-01 |
13964-54A50-000 |
— | ||
|
32
|
32
13966-54A51-000
ホース,インタクーラ,NO.1
DOHC:TURBO; 1986-07-01~1988-07-01 |
13966-54A51-000 |
— | ||
|
33
|
33
13967-54A51-000
ホース,インタクーラ,NO.2
DOHC:TURBO; 1986-07-01~1988-07-01 |
13967-54A51-000 |
— | ||
|
34
|
34
09402-43501-000
Clamp, tank
DOHC:TURBO; 1986-07-01~1988-07-01 |
09402-43501-000 |
— | ||
| replacement | |||||
|
34
|
34
09402-50511-000 CLAMPDOHC:TURBO; 1986-07-01~1988-07-01 |
09402-50511-000 |
from US $7.52 |
||
|
35
|
35
09402-57501-000 ClampDOHC:TURBO; 1986-07-01~1988-07-01 |
09402-57501-000 |
US $10.19 |
||
| replacement | |||||
|
35
|
35
09402-57511-000 CLAMPDOHC:TURBO; 1986-07-01~1988-07-01 |
09402-57511-000 |
from US $6.24 |
||
|
36
|
36
13620-54A51-000
クーラ,インタ
DOHC:TURBO; 1986-07-01~1988-07-01 |
13620-54A51-000 |
— | ||
|
37
|
37
09320-06013-000
Cushion
DOHC:TURBO; 1986-07-01~1988-07-01 |
09320-06013-000 |
— | ||
|
38
|
38
01517-08163-000
Bolt 8 x 16
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0816B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
38
|
38
01550-0816A-000 BoltBolt, rear DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
39
|
39
13991-54A50-000
ブラケット,インタクーラ,NO.1
DOHC:TURBO; 1986-07-01~1988-07-01 |
13991-54A50-000 |
— | ||
|
40
|
40
13992-54A50-000
ブラケット,インタクーラ,NO.2
DOHC:TURBO; 1986-07-01~1988-07-01 |
13992-54A50-000 |
— | ||
|
41
|
41
13993-54A50-000
ブラケット,インタクーラ,NO.3
DOHC:TURBO; 1986-07-01~1988-07-01 |
13993-54A50-000 |
— | ||
|
42
|
42
13994-54A50-000
ブラケット,インタクーラ,NO.4
DOHC:TURBO; 1986-07-01~1988-07-01 |
13994-54A50-000 |
— | ||
|
43
|
43
01517-08163-000
Bolt 8 x 16
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0816B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
43
|
43
01550-0816A-000 BoltBolt, rear DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
44
|
44
01517-08203-000
BOLT
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0820A-000 BoltBolt, funnel bracket DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
44
|
44
01550-0820B-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
45
|
45
13987-54A51-000
カバー,インタクーラ
DOHC:TURBO; 1986-07-01~1988-07-01 |
13987-54A51-000 |
— | ||
|
46
|
46
01517-06103-000
BOLT 6X10
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
46
|
46
01550-0610A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0610A-000 |
from US $0.96 |
||
|
46
|
46
01550-0610B-000 BoltBolt DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0610B-000 |
from US $0.96 |
||
