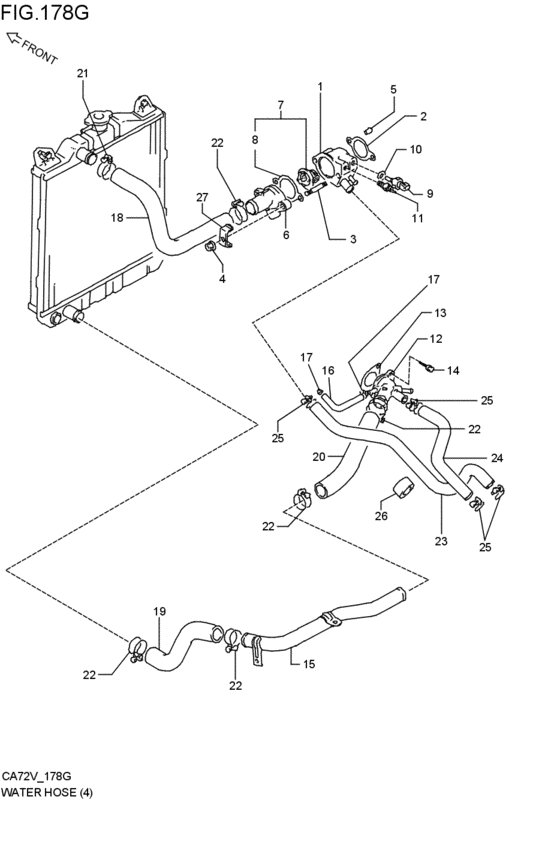

water hose (DOHC:TURBO; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- transmission
- MT
- Number of doors
- 3DR
- grade
- RSS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17690-53A00-000
ケース,サーモスタット
DOHC:TURBO; 1986-07-01~1987-03-01 |
17690-53A00-000 |
— | ||
| replacements | |||||
|
1
|
1
09246-05006-000 PLUG(1/8PT,H:5.5)DOHC:TURBO; 1986-07-01~1987-03-01 |
09246-05006-000 |
from US $1.76 |
||
|
1
|
1
17690-73B00-000
CASE,THERMOSTAT
DOHC:TURBO; 1986-07-01~1987-03-01 |
17690-73B00-000 |
— | ||
|
1
|
1
09246-05003-000
プラグ,1/8PT,H:5.5
DOHC:TURBO; 1986-07-01~1987-03-01 |
09246-05003-000 |
— | ||
|
1
|
1
17690-53A01-000
ケース,サーモスタット
DOHC:TURBO; 1987-03-01~1988-07-01 |
17690-53A01-000 |
— | ||
| replacements | |||||
|
1
|
1
09246-05006-000 PLUG(1/8PT,H:5.5)DOHC:TURBO; 1987-03-01~1988-07-01 |
09246-05006-000 |
from US $1.76 |
||
|
1
|
1
17690-73B00-000
CASE,THERMOSTAT
DOHC:TURBO; 1987-03-01~1988-07-01 |
17690-73B00-000 |
— | ||
|
1
|
1
09246-05003-000
プラグ,1/8PT,H:5.5
DOHC:TURBO; 1987-03-01~1988-07-01 |
09246-05003-000 |
— | ||
|
2
|
2
17699-53A00-000
ガスケット,サーモスタットケース
DOHC:TURBO; 1986-07-01~1987-03-01 |
17699-53A00-000 |
— | ||
| replacement | |||||
|
2
|
2
17699-53F01-000 GASKETDOHC:TURBO; 1986-07-01~1987-03-01 |
17699-53F01-000 |
from US $2.40 |
||
|
2
|
2
17699-53A01-000
ガスケット,サーモスタットキャップ
DOHC:TURBO; 1987-03-01~1988-07-01 |
17699-53A01-000 |
— | ||
| replacement | |||||
|
2
|
2
17699-53F01-000 GASKETDOHC:TURBO; 1987-03-01~1988-07-01 |
17699-53F01-000 |
from US $2.40 |
||
|
3
|
3
01411-08703-000
スタッドボルト
DOHC:TURBO; 1986-07-01~1988-07-01 |
01411-08703-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0870A-000 BOLT,STUDDOHC:TURBO; 1986-07-01~1988-07-01 |
01411-0870A-000 |
US $19.50 |
||
|
4
|
4
08316-16083-000 NutNut DOHC:TURBO; 1986-07-01~1988-07-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTDOHC:TURBO; 1986-07-01~1988-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
04211-11129-000 PINDOHC:TURBO; 1986-07-01~1987-03-01 |
04211-11129-000 |
from US $0.99 |
||
|
6
|
6
17561-53A00-000
キャップ,ウォータサーモスタツト
DOHC:TURBO; 1986-07-01~1988-07-01 |
17561-53A00-000 |
— | ||
| replacement | |||||
|
6
|
6
17561-60B00-000 CAP,WATER THERMOSTATDOHC:TURBO; 1986-07-01~1988-07-01 |
17561-60B00-000 |
from US $13.39 |
||
|
7
|
7
17600-82810-000
サーモスタット,ウォータ,82゜C
DOHC:TURBO; 1986-07-01~1988-07-01 |
17600-82810-000 |
— | ||
| replacement | |||||
|
7
|
7
17600-85811-000 THERMOSTAT SET,WATER 82 DEGDOHC:TURBO; 1986-07-01~1988-07-01 |
17600-85811-000 |
from US $21.38 |
||
|
8
|
8
17569-82001-000
GASKET WATER THERMOSTAT CAP
DOHC:TURBO; 1986-07-01~1988-07-01 |
17569-82001-000 |
— | ||
| replacement | |||||
|
8
|
8
17569-82001-H17 GASKET,WTR THERMO CAPDOHC:TURBO; 1986-07-01~1988-07-01 |
17569-82001-H17 |
from US $1.82 |
||
|
9
|
9
13650-84101-000
Sensor,water Temp
DENSO; DOHC:TURBO; 1986-07-01~1988-07-01 |
13650-84101-000 |
— | ||
|
10
|
10
09168-12007-000
ガスケット,12X21X2
DOHC:TURBO; 1986-07-01~1988-07-01 |
09168-12007-000 |
— | ||
| replacements | |||||
|
10
|
10
09168-12016-000 GASKET(12.2X21X0.8)DOHC:TURBO; 1986-07-01~1988-07-01 |
09168-12016-000 |
from US $1.28 |
||
|
10
|
10
09168-12018-000 GASKET(12X21X2)DOHC:TURBO; 1986-07-01~1988-07-01 |
09168-12018-000 |
from US $1.10 |
||
|
11
|
11
34850-82001-000
Gauge assy, water temperature
DENSO; DOHC:TURBO; 1986-07-01~1988-07-01 |
34850-82001-000 |
— | ||
| replacement | |||||
|
11
|
11
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; DOHC:TURBO; 1986-07-01~1988-07-01 |
34850-50A00-000 |
from US $34.79 |
||
|
12
|
12
17550-78121-000
キャップ,ウォータ,インレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17550-78121-000 |
— | ||
| replacement | |||||
|
12
|
12
17550-781V0-000 CASE,THERMOSTATSTATDOHC:TURBO; 1986-07-01~1988-07-01 |
17550-781V0-000 |
US $74.40 |
||
|
13
|
13
17559-73000-000
GASKET WATER INLET PIPE
DOHC:TURBO; 1986-07-01~1988-07-01 |
17559-73000-000 |
— | ||
| replacement | |||||
|
13
|
13
17559-73010-000 GASKET,WATER INLET PIPEDOHC:TURBO; 1986-07-01~1988-07-01 |
17559-73010-000 |
from US $1.52 |
||
|
14
|
14
01517-06203-000
Bolt
DOHC:TURBO; 1986-07-01~1988-07-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0620B-000 BoltBolt, inspection cap DOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
14
|
14
01550-0620A-000 BoltDOHC:TURBO; 1986-07-01~1988-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
15
|
15
17840-84200-000
パイプ,ラジエータ,アウトレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17840-84200-000 |
— | ||
|
16
|
16
09352-70121-13A
ホース,7X12X1130
L:1130>235; DOHC:TURBO; 1986-07-01~1988-07-01 |
09352-70121-13A |
— | ||
| replacement | |||||
|
16
|
16
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130>235; DOHC:TURBO; 1986-07-01~1988-07-01 |
09352-70121-00B |
from US $4.37 |
||
|
17
|
17
09401-11404-000
クリップ
DOHC:TURBO; 1986-07-01~1988-07-01 |
09401-11404-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-11415-000 CLIPDOHC:TURBO; 1986-07-01~1988-07-01 |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-11407-000
CLIP
DOHC:TURBO; 1986-07-01~1988-07-01 |
09401-11407-000 |
— | ||
|
18
|
18
17852-53A01-000
ホース,ラジエータ,インレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17852-53A01-000 |
— | ||
|
19
|
19
17854-54A51-000
ホース,ラジエータ,アウトレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17854-54A51-000 |
— | ||
|
20
|
20
17855-78101-000
ホース,ウォータ
DOHC:TURBO; 1986-07-01~1988-07-01 |
17855-78101-000 |
— | ||
| replacement | |||||
|
20
|
20
17856-50F10-000 HOSE,RADIATORDOHC:TURBO; 1986-07-01~1988-07-01 |
17856-50F10-000 |
US $11.25 |
||
|
21
|
21
09400-36312-000 CLAMPDOHC:TURBO; 1986-07-01~1988-07-01 |
09400-36312-000 |
from US $1.67 |
||
|
22
|
22
09400-34311-000 CLAMPCollier DOHC:TURBO; 1986-07-01~1988-07-01 |
09400-34311-000 |
from US $1.92 |
||
|
23
|
23
17871-53A00-000
ホース,ヒータ,インレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17871-53A00-000 |
— | ||
|
24
|
24
17872-84001-000
ホース,ヒータ,アウトレット
DOHC:TURBO; 1986-07-01~1988-07-01 |
17872-84001-000 |
— | ||
| replacement | |||||
|
24
|
24
17872-84002-000 HOSE,HEATER OUTLETDOHC:TURBO; 1986-07-01~1988-07-01 |
17872-84002-000 |
US $11.56 |
||
|
25
|
25
09400-22312-000 CLAMPDOHC:TURBO; 1986-07-01~1988-07-01 |
09400-22312-000 |
from US $1.82 |
||
|
26
|
26
09320-21002-000
PROTECTOR
DOHC:TURBO; 1986-07-01~1988-07-01 |
09320-21002-000 |
— | ||
|
27
|
27
17568-53A00-000 PLATE,EARTHDOHC:TURBO; 1986-07-01~1988-07-01 |
17568-53A00-000 |
US $3.24 |
||
