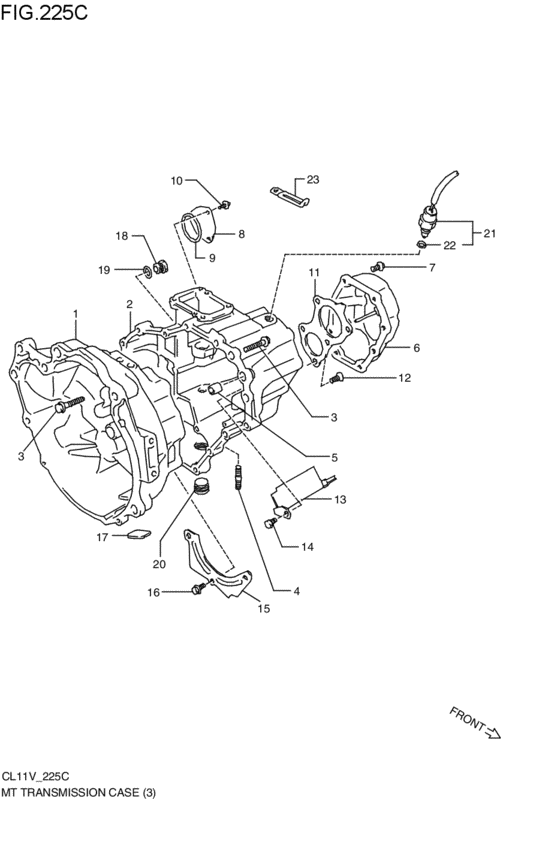

mt - transmission case (2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SXX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-73B00-000
ケース,トランスミッション,ライト
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1989-10-01 |
24711-73B00-000 |
— | ||
|
1
|
1
24711-73B01-000
ケース,トランスミッション,ライト
2WD:5MT:(2V,DOHC):TURBO; 1989-03-01~1990-01-01 |
24711-73B01-000 |
— | ||
|
2
|
2
24721-63D00-000
ケース,トランスミッション,レフト
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24721-63D00-000 |
— | ||
| replacements | |||||
|
2
|
2
09246-16010-000
PLUG
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09246-16010-000 |
— | ||
|
2
|
2
24721-63D02-000
CASE,T/M,L
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24721-63D02-000 |
— | ||
|
2
|
2
09246-16021-000 Plug,t/m Oil Drain2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09246-16021-000 |
from US $4.01 |
||
|
3
|
3
09103-08237-000 ボルト,8X402WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09103-08237-000 |
US $1.75 |
||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLT2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
09108-08221-000 BOLT,STUD2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09108-08221-000 |
US $24.30 |
||
|
5
|
5
09206-13011-000
ノックピン,10.4X13X14
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
5
|
5
04211-13149-000 PIN2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
04211-13149-000 |
from US $1.28 |
||
|
6
|
6
24730-73B51-000
Cover,transmission side
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24730-73B51-000 |
— | ||
| replacement | |||||
|
6
|
6
24730-73B52-000 COVER,TRANSAXLE SIDE2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24730-73B52-000 |
US $52.99 |
||
|
7
|
7
09135-06022-000
Bolt
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
7
|
7
09135-06027-000 BOLT(6X12)2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09135-06027-000 |
from US $1.12 |
||
|
8
|
8
24741-60D00-000 CAP,TRANSAXLE LEFT CASE2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24741-60D00-000 |
US $3.64 |
||
|
9
|
9
24761-50A00-000 O-RING,T/M LEFT CASE LOWER CAP2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24761-50A00-000 |
US $1.60 |
||
|
10
|
10
09135-06022-000
Bolt
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
10
|
10
09135-06027-000 BOLT(6X12)2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09135-06027-000 |
from US $1.12 |
||
|
11
|
11
24725-73B50-000
プレート,レフトケース
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24725-73B50-000 |
— | ||
| replacement | |||||
|
11
|
11
24725-73B51-000 PLATE,T/M LEFT CASE2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24725-73B51-000 |
US $17.96 |
||
|
12
|
12
09120-06002-000
Screw (6x16)
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09120-06002-000 |
— | ||
| replacement | |||||
|
12
|
12
02122-0616B-000 SCREWScrew, intake pipe 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
02122-0616B-000 |
from US $0.80 |
||
|
13
|
13
24810-73B00-000
GUTTER,INPUT OIL
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24810-73B00-000 |
— | ||
|
14
|
14
24828-70B00-000
ボルト,カウンタシャフトライトベアリングプレート
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24828-70B00-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0612B-000 BOLTBolt, upper 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-0612B-000 |
US $0.80 |
||
|
14
|
14
01570-0612A-000 BOLTBolt 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-0612A-000 |
from US $0.80 |
||
|
14
|
14
01570-06123-000
Bolt
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-06123-000 |
— | ||
|
15
|
15
24815-73B00-000 PLATE,LEFT CASE OIL HOLD2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24815-73B00-000 |
US $3.72 |
||
|
16
|
16
24828-70B00-000
ボルト,カウンタシャフトライトベアリングプレート
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24828-70B00-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0612B-000 BOLTBolt, upper 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-0612B-000 |
US $0.80 |
||
|
16
|
16
01570-0612A-000 BOLTBolt 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-0612A-000 |
from US $0.80 |
||
|
16
|
16
01570-06123-000
Bolt
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
01570-06123-000 |
— | ||
|
17
|
17
24718-52A00-000
MAGNET,T/M CASE
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
24718-52A00-000 |
— | ||
|
18
|
18
09247-18003-000 PLUG2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09247-18003-000 |
US $1.76 |
||
|
19
|
19
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09160-18018-000 |
US $0.96 |
||
|
20
|
20
09246-16010-000
PLUG
マグネットツキ; 2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09246-16010-000 |
— | ||
|
21
|
21
37610-70B11-000 SWITCH ASSY,BACK UP LAMP2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
37610-70B11-000 |
from US $28.94 |
||
|
22
|
22
09280-11002-000 O RING(D:1.9,ID:11.4)2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09280-11002-000 |
from US $0.88 |
||
|
23
|
23
09404-06404-000
Clamp, fuel hose
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09404-06404-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09404-06434-000 |
— | ||
|
23
|
23
09404-06433-000
CLAMP(L:80)
2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09404-06433-000 |
— | ||
|
23
|
23
09404-06436-000 Clamp(L:80)2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09404-06436-000 |
from US $2.13 |
||
|
23
|
23
09404-06036-000 Clamp(L:80)2WD:5MT:(2V,DOHC):TURBO; 1988-09-01~1990-01-01 |
09404-06036-000 |
from US $1.82 |
||
