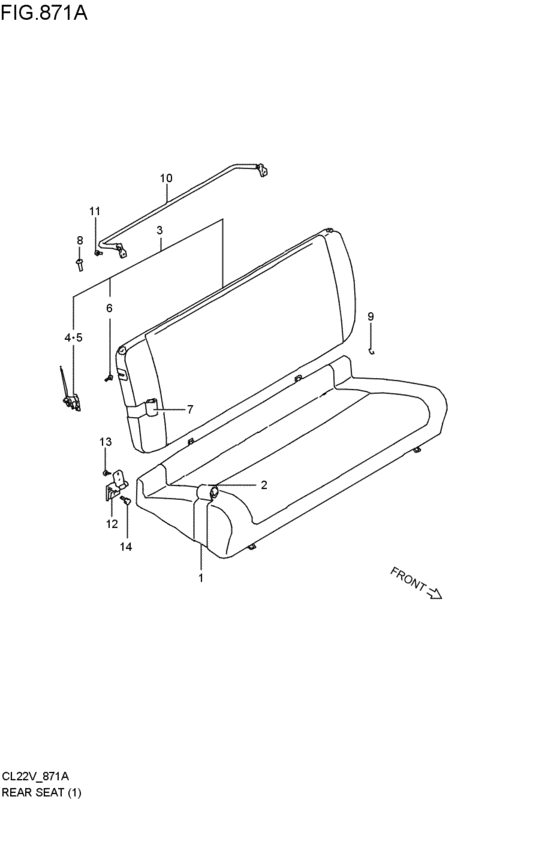

rear seat (HC; 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- HC
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87160-76B01-000
パッド,リヤシートクッション
HC; 1991-08-01~1993-05-01 |
87160-76B01-000 |
— | ||
|
2
|
2
87180-76B00-M41
トリム,リヤシートクッション
ブル-/ブラック; HC; 1991-08-01~1993-05-01 |
87180-76B00-M41 |
— | ||
|
3
|
3
87305-72B02-000
バックサブアッシ,リヤシート
HC; 1991-08-01~1993-05-01 |
87305-72B02-000 |
— | ||
| replacement | |||||
|
3
|
3
87305-71G00-000
バックサブアッシ,リヤ
HC; 1991-08-01~1993-05-01 |
87305-71G00-000 |
— | ||
|
4
|
4
87840-72B00-000
ロックアッシ,リヤシートバック,ライト
HC; 1991-08-01~1993-05-01 |
87840-72B00-000 |
— | ||
|
5
|
5
87940-72B00-000
ロックアッシ,リヤシートバック,レフト
HC; 1991-08-01~1993-05-01 |
87940-72B00-000 |
— | ||
|
6
|
6
02142-06106-000
Screw
HC; 1991-08-01~1993-05-01 |
02142-06106-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft HC; 1991-08-01~1993-05-01 |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREWHC; 1991-08-01~1993-05-01 |
02142-0610A-000 |
from US $0.96 |
||
|
7
|
7
87380-72B00-M41
トリム,リヤシートバック
ブル-/ブラック; HC; 1991-08-01~1993-05-01 |
87380-72B00-M41 |
— | ||
|
8
|
8
87846-82000-6GL
Knob,rear seat back look
ブラツク; HC; 1991-08-01~1993-05-01 |
87846-82000-6GL |
— | ||
| replacement | |||||
|
8
|
8
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK)ブラツク; HC; 1991-08-01~1993-05-01 |
87846-82000-5ES |
US $1.76 |
||
|
9
|
9
09387-19001-000 RINGHC; 1991-08-01~1993-05-01 |
09387-19001-000 |
from US $0.77 |
||
|
10
|
10
87350-72B00-0CE
バーアッシ,リヤシートバック(ブラック)
ブラツク; HC; 1991-08-01~1993-05-01 |
87350-72B00-0CE |
— | ||
|
11
|
11
02142-06104-000
Screw
HC; 1991-08-01~1993-05-01 |
02142-06104-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0610B-000 SCREWStopper, cl rlse cam shaft HC; 1991-08-01~1993-05-01 |
02142-0610B-000 |
from US $0.76 |
||
|
11
|
11
02142-0610A-000 SCREWHC; 1991-08-01~1993-05-01 |
02142-0610A-000 |
from US $0.96 |
||
|
12
|
12
87850-71B00-000
Hinge,rr seat back
HC; 1991-08-01~1993-05-01 |
87850-71B00-000 |
— | ||
|
13
|
13
09125-06036-000 SCREW(6X15)HC; 1991-08-01~1993-05-01 |
09125-06036-000 |
from US $0.16 |
||
|
14
|
14
01137-08166-000
BOLT
HC; 1991-08-01~1993-05-01 |
01137-08166-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-0816A-000 BoltHC; 1991-08-01~1993-05-01 |
01570-0816A-000 |
from US $1.12 |
||
