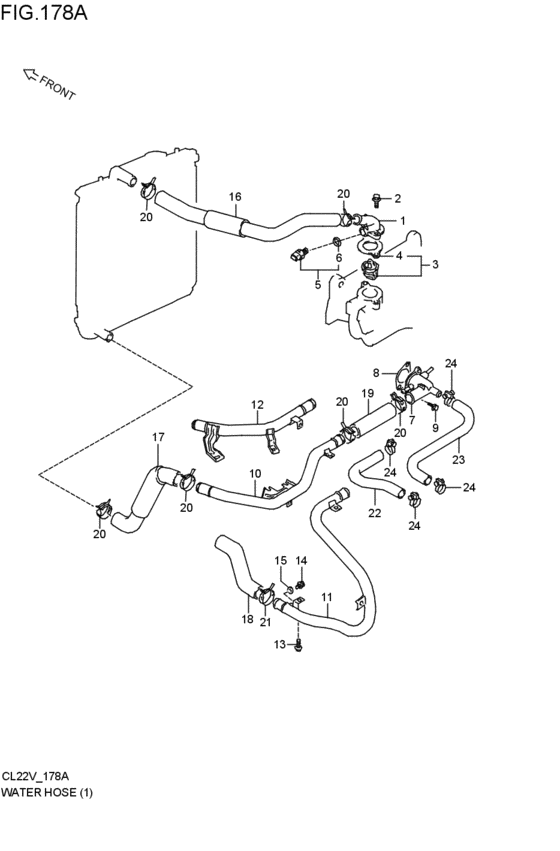

water hose (2V:CARB; 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- HC
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-72B52-000
キャップ,ウォータサーモスタツト
2V:CARB; 1991-08-01~1993-05-01 |
17561-72B52-000 |
— | ||
| replacement | |||||
|
1
|
1
17561-72B53-000 CAP,WATER THERMOSTAT2V:CARB; 1991-08-01~1993-05-01 |
17561-72B53-000 |
US $64 |
||
|
2
|
2
01517-08253-000
ボルト
2V:CARB; 1991-08-01~1993-05-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0825A-000 Bolt2V:CARB; 1991-08-01~1993-05-01 |
01550-0825A-000 |
from US $0.47 |
||
|
2
|
2
01550-0825B-000 Bolt2V:CARB; 1991-08-01~1993-05-01 |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
17600-82860-000
サーモスタット,ウォータ,82゜C
2V:CARB; 1991-08-01~1993-05-01 |
17600-82860-000 |
— | ||
| replacement | |||||
|
3
|
3
17600-85811-000 THERMOSTAT SET,WATER 82 DEG2V:CARB; 1991-08-01~1993-05-01 |
17600-85811-000 |
from US $21.38 |
||
|
4
|
4
17569-82001-H17 GASKET,WTR THERMO CAP2V:CARB; 1991-08-01~1993-05-01 |
17569-82001-H17 |
from US $1.82 |
||
|
5
|
5
17680-50F00-000
SWITCH,FAN THERMO
ガスケットアリ; 2V:CARB; 1991-08-01~1993-05-01 |
17680-50F00-000 |
— | ||
| replacement | |||||
|
5
|
5
17680-50F01-000 Switch Comp,rdtr Fanガスケットアリ; 2V:CARB; 1991-08-01~1993-05-01 |
17680-50F01-000 |
from US $36.80 |
||
|
6
|
6
17689-50F00-000 O-RING2V:CARB; 1991-08-01~1993-05-01 |
17689-50F00-000 |
from US $0.74 |
||
|
7
|
7
17550-77B00-000
キャップ,ウォータインレット
2V:CARB; 1991-08-01~1993-05-01 |
17550-77B00-000 |
— | ||
| replacement | |||||
|
7
|
7
17550-72X50-000
CAP,WATER INLET
2V:CARB; 1991-08-01~1993-05-01 |
17550-72X50-000 |
— | ||
|
8
|
8
17559-73000-H17
ガスケット,ウォータ,インレット
2V:CARB; 1991-08-01~1993-05-01 |
17559-73000-H17 |
— | ||
| replacement | |||||
|
8
|
8
17559-73010-000 GASKET,WATER INLET PIPE2V:CARB; 1991-08-01~1993-05-01 |
17559-73010-000 |
from US $1.52 |
||
|
9
|
9
01517-06203-000
Bolt
2V:CARB; 1991-08-01~1993-05-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0620B-000 BoltBolt, inspection cap 2V:CARB; 1991-08-01~1993-05-01 |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
01550-0620A-000 Bolt2V:CARB; 1991-08-01~1993-05-01 |
01550-0620A-000 |
from US $0.76 |
||
|
10
|
10
17840-70B00-000
パイプ,ラジエータ,アウトレット
2V:CARB:2WD:4MT; 1991-08-01~1993-05-01 |
17840-70B00-000 |
— | ||
| replacement | |||||
|
10
|
10
17840-70B0V-000 PIPE,RDTR OUTLET2V:CARB:2WD:4MT; 1991-08-01~1993-05-01 |
17840-70B0V-000 |
US $69.92 |
||
|
16
|
16
17852-60D00-000
ホース,ラジエータ,インレット
2V:CARB; 1991-08-01~1993-05-01 |
17852-60D00-000 |
— | ||
| replacement | |||||
|
16
|
16
17852-60D02-000
HOSE,RADIATOR INLET
2V:CARB; 1991-08-01~1993-05-01 |
17852-60D02-000 |
— | ||
|
17
|
17
17854-70B00-000
ホース,ラジエータ,アウトレット
2V:CARB:2WD:4MT; 1991-08-01~1993-05-01 |
17854-70B00-000 |
— | ||
| replacement | |||||
|
17
|
17
17854-70G00-000
HOSE,RADIATOR OUTLET
2V:CARB:2WD:4MT; 1991-08-01~1993-05-01 |
17854-70G00-000 |
— | ||
|
19
|
19
17855-70B00-000
ホース,ウォータ,インレット
2V:CARB; 1991-08-01~1993-05-01 |
17855-70B00-000 |
— | ||
| replacement | |||||
|
19
|
19
17856-50F10-000 HOSE,RADIATOR2V:CARB; 1991-08-01~1993-05-01 |
17856-50F10-000 |
US $11.25 |
||
|
20
|
20
17859-70B10-000
クリップ,ラジエータホース
2V:CARB; 1991-08-01~1993-05-01 |
17859-70B10-000 |
— | ||
| replacements | |||||
|
20
|
20
09402-32511-000 CLAMP2V:CARB; 1991-08-01~1993-05-01 |
09402-32511-000 |
from US $3.98 |
||
|
20
|
20
09402-32502-000 CLAMP2V:CARB; 1991-08-01~1993-05-01 |
09402-32502-000 |
from US $3.96 |
||
|
21
|
21
17858-70B11-000
クランプ,ラジエータホース
2V:CARB; 1991-08-01~1993-03-01 |
17858-70B11-000 |
— | ||
| replacement | |||||
|
21
|
21
09400-34311-000 CLAMPCollier 2V:CARB; 1991-08-01~1993-03-01 |
09400-34311-000 |
from US $1.92 |
||
|
21
|
21
17859-70B10-000
クリップ,ラジエータホース
2V:CARB; 1993-04-01~1993-05-01 |
17859-70B10-000 |
— | ||
| replacements | |||||
|
21
|
21
09402-32511-000 CLAMP2V:CARB; 1993-04-01~1993-05-01 |
09402-32511-000 |
from US $3.98 |
||
|
21
|
21
09402-32502-000 CLAMP2V:CARB; 1993-04-01~1993-05-01 |
09402-32502-000 |
from US $3.96 |
||
|
22
|
22
17871-72B10-000 HOSE,HEATER INLET2V:CARB; 1991-08-01~1993-05-01 |
17871-72B10-000 |
US $8.43 |
||
|
23
|
23
17872-72B00-000
ホース,ヒータ,アウトレット
2V:CARB; 1991-08-01~1993-05-01 |
17872-72B00-000 |
— | ||
| replacement | |||||
|
23
|
23
17872-72B50-000 HOSE,HEATER OUTLET2V:CARB; 1991-08-01~1993-05-01 |
17872-72B50-000 |
US $67.20 |
||
|
24
|
24
09400-21311-000
Сlamp
2V:CARB; 1991-08-01~1993-05-01 |
09400-21311-000 |
— | ||
| replacement | |||||
|
24
|
24
09401-18403-000 CLIPClip, heater hose 2V:CARB; 1991-08-01~1993-05-01 |
09401-18403-000 |
from US $1.53 |
||
