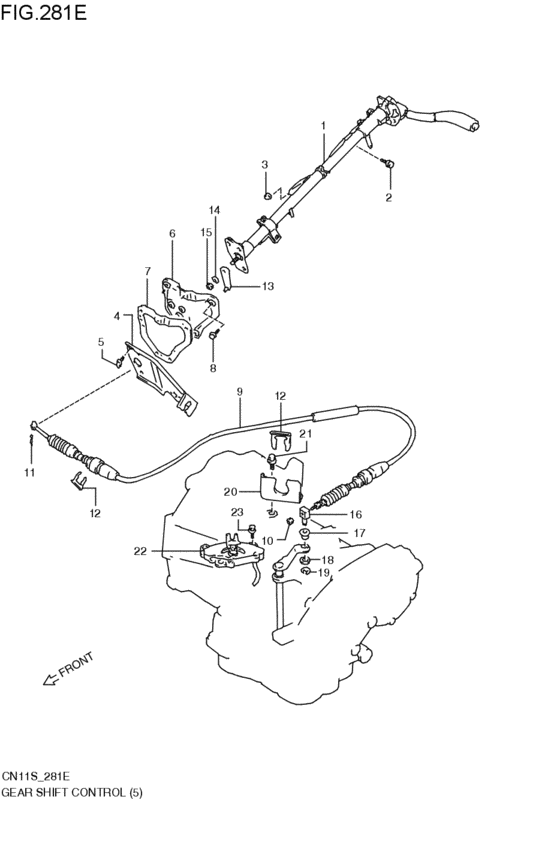

gearlever control (JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- ST
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-71B40-5SF
セレクタアッシ,マニュアル(ブルーブラック)
JATCO,ブルーブラック; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28100-71B40-5SF |
— | ||
|
2
|
2
01517-08126-000
Bolt, front
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01517-08126-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0812B-000 BoltPlug, drain JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0812B-000 |
from US $0.96 |
||
|
2
|
2
01550-0812A-000 BoltJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0812A-000 |
from US $0.91 |
||
|
3
|
3
08316-26086-000
Nut
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08316-26086-000 |
— | ||
| replacements | |||||
|
3
|
3
08316-2008A-000 NUTJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08316-2008A-000 |
from US $0.80 |
||
|
3
|
3
08316-20087-000 NUTJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08316-20087-000 |
from US $3.77 |
||
|
4
|
4
28220-71B61-000
ブラケット,セレクタケーブルレバーサイド
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28220-71B61-000 |
— | ||
|
5
|
5
01517-08163-000
Bolt 8 x 16
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BoltJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BoltBolt, rear JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
28115-71B61-000
カバー,コラムシフトダッシュホール
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28115-71B61-000 |
— | ||
|
7
|
7
28119-71B61-000
プレート,コラムシフトダッシュカバー
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28119-71B61-000 |
— | ||
|
8
|
8
01517-06123-000
Bolt
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BoltBolt, clamp JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BoltJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
28210-71B61-000
ケーブルアッシ,マニュアルセレクタ
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28210-71B61-000 |
— | ||
|
10
|
10
09140-06017-000
ナット
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
09140-06017-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0006A-000 NUTJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08310-0006A-000 |
from US $0.76 |
||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08310-0006B-000 |
from US $0.76 |
||
|
11
|
11
09385-08004-000 PIN,SNAPJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
09385-08004-000 |
from US $1.28 |
||
|
12
|
12
09383-19002-000
クリップ
JATCO,CHKK; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
09383-19002-000 |
— | ||
| replacement | |||||
|
12
|
12
09383-19001-000 E RINGClip JATCO,CHKK; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
09383-19001-000 |
from US $2.34 |
||
|
13
|
13
28132-71B61-000
レバー,ケーブルコネクト
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28132-71B61-000 |
— | ||
|
14
|
14
08322-11106-000
Washer 10.5x18x1.6
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-11106-000 |
— | ||
| replacements | |||||
|
14
|
14
08322-0110B-000 WASHERWasher, knuckle end JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-0110B-000 |
from US $0.76 |
||
|
14
|
14
08322-0110A-000 WASHERWasher, knuckle end JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-0110A-000 |
from US $0.80 |
||
|
15
|
15
08319-21085-000
Nut
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08319-21085-000 |
— | ||
| replacements | |||||
|
15
|
15
08319-2108B-000 NUTJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08319-2108B-000 |
US $14 |
||
|
15
|
15
08319-2108A-000 NUTNut, lower JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08319-2108A-000 |
from US $3.35 |
||
|
16
|
16
28291-78233-000 JOINT,CABLEJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28291-78233-000 |
from US $0.43 |
||
|
17
|
17
09305-08012-000 BUSHJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
09305-08012-000 |
from US $1.15 |
||
|
18
|
18
08322-11086-000
Washer
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-11086-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-0108B-000 |
from US $0.96 |
||
|
18
|
18
08322-0108A-000 WASHERJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08322-0108A-000 |
from US $0.96 |
||
|
19
|
19
08332-11066-000
Circlip
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08332-11066-000 |
— | ||
| replacements | |||||
|
19
|
19
08332-1106B-000 E RINGCirclip JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08332-1106B-000 |
from US $0.96 |
||
|
19
|
19
08332-1106A-000 E RINGE ring, pinion JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
08332-1106A-000 |
from US $0.27 |
||
|
20
|
20
28221-71B72-000
ブラケット,セレクトケーブル
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
28221-71B72-000 |
— | ||
|
21
|
21
01517-08166-000
Bolt 8x16
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01517-08166-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0816B-000 BoltJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0816B-000 |
from US $0.91 |
||
|
22
|
22
37720-71B10-000
スイッチアッシ,シフト
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
37720-71B10-000 |
— | ||
| replacement | |||||
|
22
|
22
37720-71B20-000 SWITCH ASSY,SHIFTJATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
37720-71B20-000 |
US $137.63 |
||
|
23
|
23
01517-05123-000
ボルト
JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01517-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-0512B-000 BoltBolt JATCO; AT:4V:(SG,ST); 1989-04-01~1990-01-01 |
01550-0512B-000 |
from US $0.70 |
||
