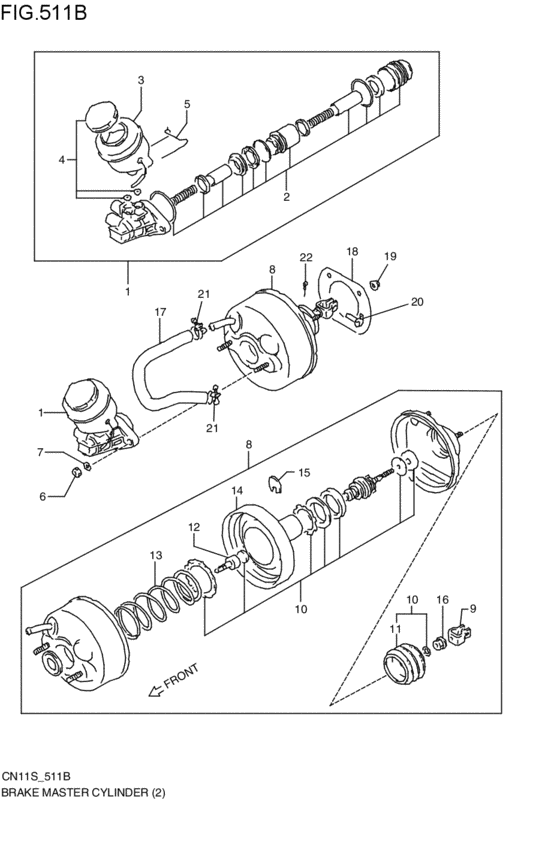

brakes master cylinder (DOHC; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- R
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-70B40-000
Cylinder assy,brake master
DOHC; 1989-04-01~1990-01-01 |
51100-70B40-000 |
— | ||
|
2
|
2
51810-70B40-000
PISTON SET,BRAKE MASTER
DOHC; 1989-04-01~1990-01-01 |
51810-70B40-000 |
— | ||
|
3
|
3
51210-70B40-000
リザーバ,マスタシリンダ
DOHC; 1989-04-01~1990-01-01 |
51210-70B40-000 |
— | ||
|
4
|
4
51290-70B40-000
キャップセット,リザーバ
DOHC; 1989-04-01~1990-01-01 |
51290-70B40-000 |
— | ||
| replacement | |||||
|
4
|
4
51290-69D00-000 CAP SET,RESERVOIRDOHC; 1989-04-01~1990-01-01 |
51290-69D00-000 |
US $202.40 |
||
|
5
|
5
51233-70B40-000
リテーナ,リザーバ
DOHC; 1989-04-01~1990-01-01 |
51233-70B40-000 |
— | ||
|
6
|
6
08310-22086-000
Nut
DOHC; 1989-04-01~1990-01-01 |
08310-22086-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUTDOHC; 1989-04-01~1990-01-01 |
08310-0008B-000 |
from US $0.96 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper DOHC; 1989-04-01~1990-01-01 |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
08321-21086-000
Wsherlck8.2x15.2x1.6
DOHC; 1989-04-01~1990-01-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCKDOHC; 1989-04-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCKDOHC; 1989-04-01~1990-01-01 |
08321-0108A-000 |
from US $0.96 |
||
|
8
|
8
51300-70B41-000
ブースタアッシ,ブレーキマスタ
DOHC; 1989-04-01~1990-01-01 |
51300-70B41-000 |
— | ||
|
9
|
9
51182-70B40-000
クレビス,シリンダプッシュロッド
DOHC; 1989-04-01~1990-01-01 |
51182-70B40-000 |
— | ||
| replacement | |||||
|
9
|
9
51182-60D10-000 CLEVIS,CYLINDER PUSH RODDOHC; 1989-04-01~1990-01-01 |
51182-60D10-000 |
US $14.32 |
||
|
10
|
10
51390-70B40-000
リペアキット,ブレーキマスタ
DOHC; 1989-04-01~1990-01-01 |
51390-70B40-000 |
— | ||
|
11
|
11
51330-70B40-000
ブーツ,ブースタボディ
DOHC; 1989-04-01~1990-01-01 |
51330-70B40-000 |
— | ||
|
12
|
12
51355-70B40-000
ロッドアッシ,ブースタ,ピストン
DOHC; 1989-04-01~1990-01-01 |
51355-70B40-000 |
— | ||
|
13
|
13
51360-70B40-000
スプリング,ブースタピストン
DOHC; 1989-04-01~1990-01-01 |
51360-70B40-000 |
— | ||
|
14
|
14
51363-70B40-000
ピストン,ブースタ
DOHC; 1989-04-01~1990-01-01 |
51363-70B40-000 |
— | ||
|
15
|
15
51364-70B41-000
キー,バルブストッパ
DOHC; 1989-04-01~1990-01-01 |
51364-70B41-000 |
— | ||
|
16
|
16
08316-16106-000
Nut
DOHC; 1989-04-01~1990-01-01 |
08316-16106-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUTDOHC; 1989-04-01~1990-01-01 |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
51010-70B40-000
ホース,ブレーキバキューム
DOHC; 1989-04-01~1990-01-01 |
51010-70B40-000 |
— | ||
| replacement | |||||
|
17
|
17
51010-60D40-000
ホース,ブレーキバキューム
DOHC; 1989-04-01~1990-01-01 |
51010-60D40-000 |
— | ||
|
18
|
18
51132-84001-000
パッキング,ブレーキマスタシリンダ
DOHC; 1989-04-01~1990-01-01 |
51132-84001-000 |
— | ||
| replacement | |||||
|
18
|
18
51132-82003-000 PACKING,BRAKE MASTER CYLINDERDOHC; 1989-04-01~1990-01-01 |
51132-82003-000 |
from US $1.60 |
||
|
19
|
19
09159-08052-000
NUT 8MM
DOHC; 1989-04-01~1990-01-01 |
09159-08052-000 |
— | ||
| replacement | |||||
|
19
|
19
09159-08135-000 NUTDOHC; 1989-04-01~1990-01-01 |
09159-08135-000 |
from US $0.81 |
||
|
20
|
20
09200-08068-000
ピン
DOHC; 1989-04-01~1990-01-01 |
09200-08068-000 |
— | ||
| replacement | |||||
|
20
|
20
09200-08069-000 PINDOHC; 1989-04-01~1990-01-01 |
09200-08069-000 |
from US $1.37 |
||
|
21
|
21
09400-19302-000
Сlamp
DOHC; 1989-04-01~1990-01-01 |
09400-19302-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-15404-000 CLIPDOHC; 1989-04-01~1990-01-01 |
09401-15404-000 |
from US $1.33 |
||
|
22
|
22
04111-25208-000
25 x 20 cotter
DOHC; 1989-04-01~1990-01-01 |
04111-25208-000 |
— | ||
| replacement | |||||
|
22
|
22
04111-2520A-000 PINDOHC; 1989-04-01~1990-01-01 |
04111-2520A-000 |
from US $0.80 |
||
