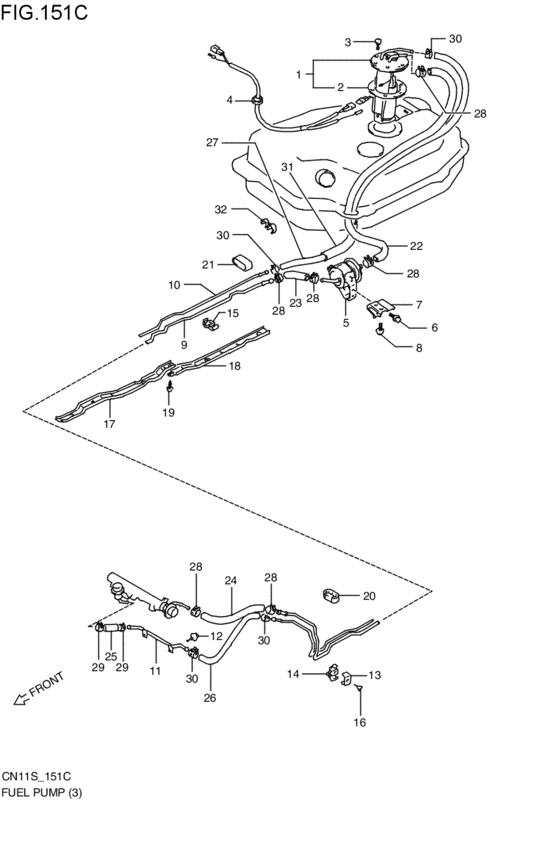

Fuel Pump (DOHC; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- R
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-54E00-000 PUMP ASSY,FUELDENSO; DOHC; 1989-04-01~1990-01-01 |
15100-54E00-000 |
US $760.32 |
||
|
2
|
2
15111-85550-000 GASKET,FUEL PUMPDENSO; DOHC; 1989-04-01~1990-01-01 |
15111-85550-000 |
US $24.80 |
||
|
3
|
3
02112-05087-000 SCREWDOHC; 1989-04-01~1990-01-01 |
02112-05087-000 |
from US $0.80 |
||
|
4
|
4
15109-70B00-000
Harness,wiring,no.2
DENSO; DOHC; 1989-04-01~1990-01-01 |
15109-70B00-000 |
— | ||
|
5
|
5
15410-72B50-000
フィルタ,フューエル
DENSO; DOHC; 1989-04-01~1990-01-01 |
15410-72B50-000 |
— | ||
| replacement | |||||
|
5
|
5
15410-51E01-000 FILTER,FUELDENSO; DOHC; 1989-04-01~1990-01-01 |
15410-51E01-000 |
US $61.56 |
||
|
6
|
6
01517-06123-000
Bolt
DOHC; 1989-04-01~1990-01-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp DOHC; 1989-04-01~1990-01-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
15421-72B50-000
ブラケット,フューエルフィルタ
DOHC; 1989-04-01~1990-01-01 |
15421-72B50-000 |
— | ||
|
8
|
8
01517-08123-000
BOLT 8X12
DOHC; 1989-04-01~1990-01-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain DOHC; 1989-04-01~1990-01-01 |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
15811-72B50-000
パイプ,フューエル
DOHC; 1989-04-01~1990-01-01 |
15811-72B50-000 |
— | ||
| replacement | |||||
|
9
|
9
15811-65F4V-000
パイプ,フューエル
DOHC; 1989-04-01~1990-01-01 |
15811-65F4V-000 |
— | ||
|
10
|
10
15861-72B50-000
パイプ,フューエルリターン
DOHC; 1989-04-01~1990-01-01 |
15861-72B50-000 |
— | ||
| replacement | |||||
|
10
|
10
15861-65F40-000
パイプ,フューエルリターン
DOHC; 1989-04-01~1990-01-01 |
15861-65F40-000 |
— | ||
|
11
|
11
15820-73B50-000
パイプ,フューエル
DOHC; 1989-04-01~1990-01-01 |
15820-73B50-000 |
— | ||
| replacement | |||||
|
11
|
11
15820-64D00-000
パイプ,フューエル
DOHC; 1989-04-01~1990-01-01 |
15820-64D00-000 |
— | ||
|
12
|
12
01517-06103-000
BOLT 6X10
DOHC; 1989-04-01~1990-01-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0610A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0610A-000 |
from US $0.96 |
||
|
12
|
12
01550-0610B-000 BoltBolt DOHC; 1989-04-01~1990-01-01 |
01550-0610B-000 |
from US $0.96 |
||
|
13
|
13
15818-53A00-000 STAY,FUEL PIPEDOHC; 1989-04-01~1990-01-01 |
15818-53A00-000 |
US $2.72 |
||
|
14
|
14
15819-53A00-000 CLAMP,FUEL PIPE,NO.4DOHC; 1989-04-01~1990-01-01 |
15819-53A00-000 |
US $3.64 |
||
|
15
|
15
15819-84150-000 CLAMP,FUEL PIPE,NO.4DOHC; 1989-04-01~1990-01-01 |
15819-84150-000 |
US $3.28 |
||
|
16
|
16
02122-06203-000
Screw
DOHC; 1989-04-01~1990-01-01 |
02122-06203-000 |
— | ||
| replacements | |||||
|
16
|
16
02122-0620B-000 SCREWDOHC; 1989-04-01~1990-01-01 |
02122-0620B-000 |
from US $3.04 |
||
|
16
|
16
02122-0620A-000 SCREWDOHC; 1989-04-01~1990-01-01 |
02122-0620A-000 |
from US $0.80 |
||
|
17
|
17
15871-72B00-000
カバー,フューエルパイプ,NO.1
DOHC; 1989-04-01~1990-01-01 |
15871-72B00-000 |
— | ||
| replacement | |||||
|
17
|
17
15871-70G01-000
COVER,FUEL PIPE
DOHC; 1989-04-01~1990-01-01 |
15871-70G01-000 |
— | ||
|
18
|
18
15872-72B00-000
カバー,フューエルパイプ,NO.2
DOHC; 1989-04-01~1990-01-01 |
15872-72B00-000 |
— | ||
|
19
|
19
03541-05103-000
Screw5 x 10
DOHC; 1989-04-01~1990-01-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
19
|
19
03541-0510B-000 SCREWDOHC; 1989-04-01~1990-01-01 |
03541-0510B-000 |
from US $0.80 |
||
|
19
|
19
03541-0510A-000 SCREWScrew, rr cover DOHC; 1989-04-01~1990-01-01 |
03541-0510A-000 |
from US $0.68 |
||
|
20
|
20
15818-72B50-000 CUSHION,FUEL PIPEDOHC; 1989-04-01~1990-01-01 |
15818-72B50-000 |
US $2.50 |
||
|
21
|
21
15439-70B00-000 CUSHION,FUEL PIPEDOHC; 1989-04-01~1990-01-01 |
15439-70B00-000 |
US $2.58 |
||
|
22
|
22
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>550; DOHC; 1989-04-01~1990-01-01 |
09356-75137-600 |
from US $115.33 |
||
|
23
|
23
09356-75137-300
ホース,7.5X13.5X300
L:300>140; DOHC; 1989-04-01~1990-01-01 |
09356-75137-300 |
— | ||
| replacement | |||||
|
23
|
23
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:300>140; DOHC; 1989-04-01~1990-01-01 |
09356-75137-600 |
from US $115.33 |
||
|
24
|
24
09356-75137-300
ホース,7.5X13.5X300
L:300>240; DOHC; 1989-04-01~1990-01-01 |
09356-75137-300 |
— | ||
| replacement | |||||
|
24
|
24
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:300>240; DOHC; 1989-04-01~1990-01-01 |
09356-75137-600 |
from US $115.33 |
||
|
25
|
25
09356-58126-300
ホース,5.8X12.2X300
L:300>75; DOHC; 1989-04-01~1990-01-01 |
09356-58126-300 |
— | ||
| replacement | |||||
|
25
|
25
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:300>75; DOHC; 1989-04-01~1990-01-01 |
09356-58127-600 |
from US $13.64 |
||
|
26
|
26
09356-58137-300
ホース,5.8X12.8X300
L:300>250; DOHC; 1989-04-01~1990-01-01 |
09356-58137-300 |
— | ||
| replacements | |||||
|
26
|
26
09356-55117-00B
HOSE(5.5X11.5X2000)
L:300>250; DOHC; 1989-04-01~1990-01-01 |
09356-55117-00B |
— | ||
|
26
|
26
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:300>250; DOHC; 1989-04-01~1990-01-01 |
09356-55117-600 |
from US $58.16 |
||
|
27
|
27
09356-58126-00A
ホース,5.8X12.2X1000
L:1000>760; DOHC; 1989-04-01~1990-01-01 |
09356-58126-00A |
— | ||
| replacement | |||||
|
27
|
27
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) L:1000>760; DOHC; 1989-04-01~1990-01-01 |
09356-58125-00A |
from US $21.40 |
||
|
28
|
28
09401-12402-000
Clip, lower
DOHC; 1989-04-01~1990-01-01 |
09401-12402-000 |
— | ||
| replacement | |||||
|
28
|
28
09401-12404-000 CLIPClip DOHC; 1989-04-01~1990-01-01 |
09401-12404-000 |
from US $1.10 |
||
|
29
|
29
09401-11405-000 CLAMPDOHC; 1989-04-01~1990-01-01 |
09401-11405-000 |
from US $0.20 |
||
|
30
|
30
09401-11408-000
Clip
DOHC; 1989-04-01~1990-01-01 |
09401-11408-000 |
— | ||
| replacements | |||||
|
30
|
30
09401-11415-000 CLIPDOHC; 1989-04-01~1990-01-01 |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
09401-11407-000
CLIP
DOHC; 1989-04-01~1990-01-01 |
09401-11407-000 |
— | ||
|
31
|
31
09320-13016-000 CUSHIONL:280>110; DOHC; 1989-04-01~1990-01-01 |
09320-13016-000 |
US $52.30 |
||
|
32
|
32
09408-00121-000 CLAMPDOHC; 1989-04-01~1990-01-01 |
09408-00121-000 |
US $1.76 |
||
