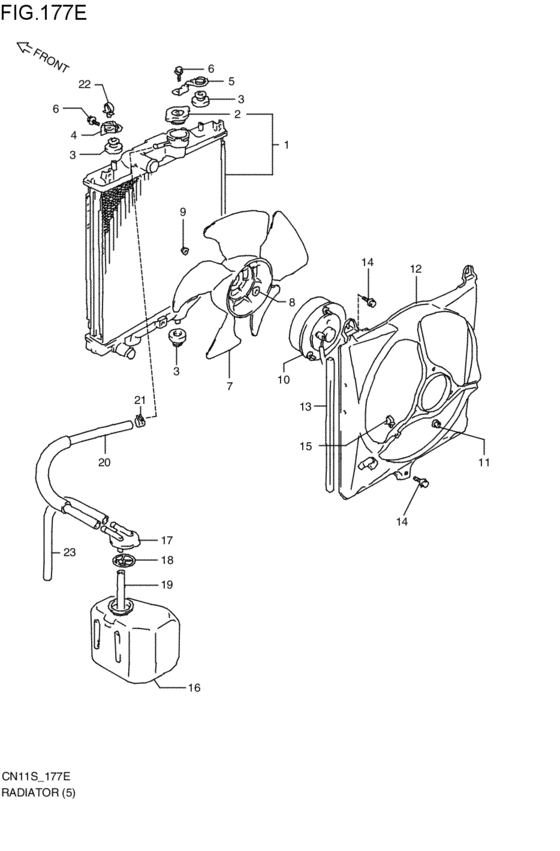

radiator (DOHC; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- R
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-72B51-000
ラジエータアッシ
DENSO; DOHC:MT; 1989-04-01~1990-01-01 |
17700-72B51-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-73G90-000
Radiator assy
DENSO; DOHC:MT; 1989-04-01~1990-01-01 |
17700-73G90-000 |
— | ||
|
2
|
2
17920-60B20-000
RADIATOR CAP
DENSO; DOHC; 1989-04-01~1990-01-01 |
17920-60B20-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9DENSO; DOHC; 1989-04-01~1990-01-01 |
17920-60B21-000 |
from US $17.60 |
||
|
3
|
3
17879-70B00-000
マウント,ラジエータサポート
DOHC; 1989-04-01~1990-01-01 |
17879-70B00-000 |
— | ||
| replacement | |||||
|
3
|
3
17879-70B01-000 MOUNT,RDTR SUPPORTDOHC; 1989-04-01~1990-01-01 |
17879-70B01-000 |
US $16.80 |
||
|
4
|
4
17862-70B01-000
ブラケット,ラジエータサポート
DOHC; 1989-04-01~1990-01-01 |
17862-70B01-000 |
— | ||
|
5
|
5
17861-70B01-000
ブラケット,ラジエータサポート
DOHC; 1989-04-01~1990-01-01 |
17861-70B01-000 |
— | ||
| replacement | |||||
|
5
|
5
17860-60810-000
Bracket set,radiator supprot
DOHC; 1989-04-01~1990-01-01 |
17860-60810-000 |
— | ||
|
6
|
6
01517-06103-000
BOLT 6X10
DOHC; 1989-04-01~1990-01-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0610A-000 |
from US $0.96 |
||
|
6
|
6
01550-0610B-000 BoltBolt DOHC; 1989-04-01~1990-01-01 |
01550-0610B-000 |
from US $0.96 |
||
|
7
|
7
17111-53A00-000
ファン,エンジンクーリング
DOHC:MT; 1989-04-01~1990-01-01 |
17111-53A00-000 |
— | ||
|
8
|
8
17119-84100-000
WASHER,FAN
DOHC; 1989-04-01~1990-01-01 |
17119-84100-000 |
— | ||
|
9
|
9
17118-53A00-000
ナット,ファン
DOHC; 1989-04-01~1990-01-01 |
17118-53A00-000 |
— | ||
| replacements | |||||
|
9
|
9
08316-2005A-000 NUTDOHC; 1989-04-01~1990-01-01 |
08316-2005A-000 |
from US $0.80 |
||
|
9
|
9
08316-26053-000 NUT 5MMDOHC; 1989-04-01~1990-01-01 |
08316-26053-000 |
US $0.97 |
||
|
10
|
10
17120-71B00-000
モータアッシ
DOHC:MT; 1989-04-01~1990-01-01 |
17120-71B00-000 |
— | ||
|
11
|
11
08316-26063-000
Nut
DOHC; 1989-04-01~1990-01-01 |
08316-26063-000 |
— | ||
| replacements | |||||
|
11
|
11
08316-2006A-000 NUTDOHC; 1989-04-01~1990-01-01 |
08316-2006A-000 |
from US $0.76 |
||
|
11
|
11
08316-1006B-000 NUTDOHC; 1989-04-01~1990-01-01 |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
17760-73B00-000
シュラウド,ファン
DOHC; 1989-04-01~1990-01-01 |
17760-73B00-000 |
— | ||
|
13
|
13
17799-84010-000
SEAL,FAN SHROUD
L:360>330; DOHC; 1989-04-01~1990-01-01 |
17799-84010-000 |
— | ||
|
14
|
14
01517-06103-000
BOLT 6X10
DOHC; 1989-04-01~1990-01-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0610A-000 |
from US $0.96 |
||
|
14
|
14
01550-0610B-000 BoltBolt DOHC; 1989-04-01~1990-01-01 |
01550-0610B-000 |
from US $0.96 |
||
|
15
|
15
09408-00061-000
Clamp, decomp read
DOHC; 1989-04-01~1990-01-01 |
09408-00061-000 |
— | ||
| replacement | |||||
|
15
|
15
09403-08405-000 CLAMPClamp, decomp lead DOHC; 1989-04-01~1990-01-01 |
09403-08405-000 |
from US $3.47 |
||
|
16
|
16
17931-70B00-000
タンク,ウォータリザーバ
DOHC; 1989-04-01~1990-01-01 |
17931-70B00-000 |
— | ||
| replacement | |||||
|
16
|
16
17931-70B10-000
TANK,WATER RESERVE
DOHC; 1989-04-01~1990-01-01 |
17931-70B10-000 |
— | ||
|
17
|
17
17932-60D00-000
キャップ,ウォータリザーブタンク
DOHC; 1989-04-01~1990-01-01 |
17932-60D00-000 |
— | ||
| replacement | |||||
|
17
|
17
17932-60D01-000 CAP,WATER RESERVOIR TANKDOHC; 1989-04-01~1990-01-01 |
17932-60D01-000 |
US $4.01 |
||
|
18
|
18
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap DOHC; 1989-04-01~1990-01-01 |
17933-60B00-000 |
from US $1.98 |
||
|
19
|
19
09352-70111-300
ホース,7X11X300
L:300>115; DOHC; 1989-04-01~1990-01-01 |
09352-70111-300 |
— | ||
| replacement | |||||
|
19
|
19
09352-70111-600 HOSE(7X11X600)L:300>115; DOHC; 1989-04-01~1990-01-01 |
09352-70111-600 |
from US $6.84 |
||
|
20
|
20
17938-70B10-000
ホース,リザーバ
DOHC; 1989-04-01~1990-01-01 |
17938-70B10-000 |
— | ||
| replacement | |||||
|
20
|
20
17938-65FM0-000
HOSE,RADIATOR TO RSVR TANK
DOHC; 1989-04-01~1990-01-01 |
17938-65FM0-000 |
— | ||
|
21
|
21
09401-11404-000
クリップ
DOHC; 1989-04-01~1990-01-01 |
09401-11404-000 |
— | ||
| replacements | |||||
|
21
|
21
09401-11415-000 CLIPDOHC; 1989-04-01~1990-01-01 |
09401-11415-000 |
from US $1.06 |
||
|
21
|
21
09401-11407-000
CLIP
DOHC; 1989-04-01~1990-01-01 |
09401-11407-000 |
— | ||
|
22
|
22
09408-00030-000
Clip
DOHC; 1989-04-01~1990-01-01 |
09408-00030-000 |
— | ||
| replacement | |||||
|
22
|
22
09403-13409-000 CLAMPDOHC; 1989-04-01~1990-01-01 |
09403-13409-000 |
US $14 |
||
|
23
|
23
09352-70111-300
ホース,7X11X300
L:300>220; DOHC; 1989-04-01~1990-01-01 |
09352-70111-300 |
— | ||
| replacement | |||||
|
23
|
23
09352-70111-600 HOSE(7X11X600)L:300>220; DOHC; 1989-04-01~1990-01-01 |
09352-70111-600 |
from US $6.84 |
||
