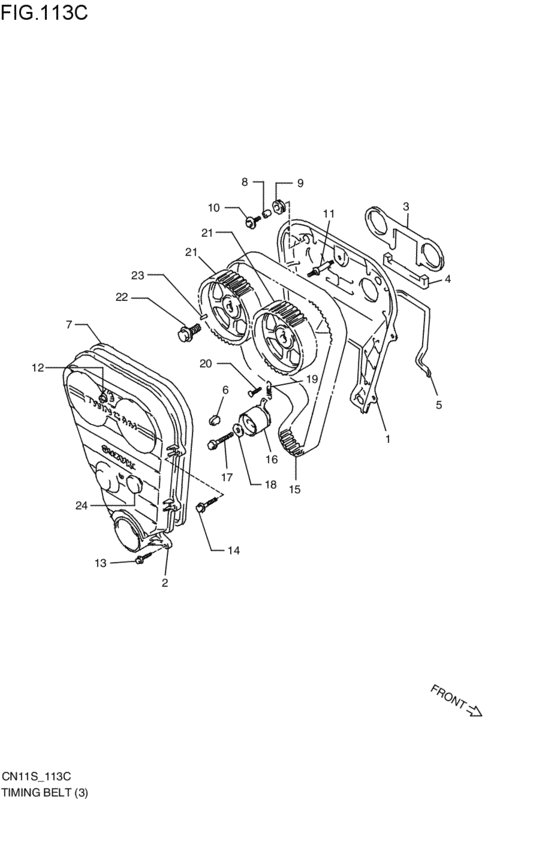

timing belt (DOHC; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- R
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11360-72B00-000
Cover, timing belt, inside
DOHC; 1989-07-01~1990-01-01 |
11360-72B00-000 |
— | ||
|
1
|
1
11360-72X00-000
カバー,タイミングベルトインサイド
DOHC; 1989-04-01~1989-07-01 |
11360-72X00-000 |
— | ||
|
2
|
2
11390-72B00-000
カバー,タイミングベルト,アウトサイド
DOHC; 1989-04-01~1990-01-01 |
11390-72B00-000 |
— | ||
| replacements | |||||
|
2
|
2
11390-72B02-000
COVER,TIMING BELT OUTSIDE
DOHC; 1989-04-01~1990-01-01 |
11390-72B02-000 |
— | ||
|
2
|
2
11488-69D01-000
STUD BOLT
DOHC; 1989-04-01~1990-01-01 |
11488-69D01-000 |
— | ||
|
2
|
2
72999-67H00-000 CAP,OD:40DOHC; 1989-04-01~1990-01-01 |
72999-67H00-000 |
from US $4.32 |
||
|
2
|
2
09250-30002-000
キャップ,OD:30
DOHC; 1989-04-01~1990-01-01 |
09250-30002-000 |
— | ||
|
2
|
2
11390-72B01-000
カバー,タイミングベルト,アウトサイド
DOHC; 1990-01-01~1990-01-01 |
11390-72B01-000 |
— | ||
| replacements | |||||
|
2
|
2
11390-72B02-000
COVER,TIMING BELT OUTSIDE
DOHC; 1990-01-01~1990-01-01 |
11390-72B02-000 |
— | ||
|
2
|
2
11488-69D01-000
STUD BOLT
DOHC; 1990-01-01~1990-01-01 |
11488-69D01-000 |
— | ||
|
3
|
3
11486-53A00-000
シール,NO.5
DOHC; 1989-04-01~1990-01-01 |
11486-53A00-000 |
— | ||
|
4
|
4
11487-53A00-000
シール,NO.6
DOHC; 1989-04-01~1990-01-01 |
11487-53A00-000 |
— | ||
|
5
|
5
11383-60C02-000
シール,タイミングカバーインサイド,NO.1
DOHC; 1989-04-01~1990-01-01 |
11383-60C02-000 |
— | ||
|
6
|
6
11394-70B00-000 SEALDOHC; 1989-04-01~1990-01-01 |
11394-70B00-000 |
from US $1.49 |
||
|
7
|
7
11396-72B00-000
シール,タイミングベルトカバー,アウトサイド
DOHC; 1989-04-01~1990-01-01 |
11396-72B00-000 |
— | ||
| replacement | |||||
|
7
|
7
11396-71C00-000 SEAL,TIMING BELT COVER OUTDOHC; 1989-04-01~1990-01-01 |
11396-71C00-000 |
from US $5.02 |
||
|
8
|
8
09180-06106-000 SPACER(6.8X10X7)DOHC; 1989-04-01~1990-01-01 |
09180-06106-000 |
from US $0.92 |
||
|
9
|
9
09308-10004-000 GROMMETDOHC; 1989-04-01~1990-01-01 |
09308-10004-000 |
from US $0.90 |
||
|
10
|
10
09116-06113-000
ボルト,6X16
DOHC; 1989-04-01~1990-01-01 |
09116-06113-000 |
— | ||
| replacement | |||||
|
10
|
10
09116-06167-000 BOLT(6X20)Bolt (6x20) DOHC; 1989-04-01~1990-01-01 |
09116-06167-000 |
from US $1.37 |
||
|
11
|
11
11488-53A01-000
スタッドボルト
DOHC; 1989-04-01~1990-01-01 |
11488-53A01-000 |
— | ||
|
12
|
12
08316-16063-000 NutDOHC; 1989-04-01~1990-01-01 |
08316-16063-000 |
from US $1.58 |
||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUTDOHC; 1989-04-01~1990-01-01 |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
01517-06163-000
Bolt
DOHC; 1989-04-01~1990-01-01 |
01517-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
01517-06203-000
Bolt
DOHC; 1989-04-01~1990-01-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0620B-000 BoltBolt, inspection cap DOHC; 1989-04-01~1990-01-01 |
01550-0620B-000 |
from US $0.76 |
||
|
14
|
14
01550-0620A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0620A-000 |
from US $0.76 |
||
|
15
|
15
12761-72B10-000
ベルト,タイミング
DOHC; 1989-04-01~1990-01-01 |
12761-72B10-000 |
— | ||
| replacements | |||||
|
15
|
15
11407-72B10-000
BELT SET,TIMING
DOHC; 1989-04-01~1990-01-01 |
11407-72B10-000 |
— | ||
|
15
|
15
11407-72B30-000
BELT SET,TIMING
DOHC; 1989-04-01~1990-01-01 |
11407-72B30-000 |
— | ||
|
16
|
16
12810-81401-000
テンショナアッシ,タイミングベルト
DOHC; 1989-04-01~1990-01-01 |
12810-81401-000 |
— | ||
| replacement | |||||
|
16
|
16
12810-81402-000 TENSIONER ASSY,TIMING BELTDOHC; 1989-04-01~1990-01-01 |
12810-81402-000 |
US $158.40 |
||
|
17
|
17
01517-08406-000
Bolt
DOHC; 1989-04-01~1990-01-01 |
01517-08406-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0840B-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0840B-000 |
from US $1.12 |
||
|
17
|
17
01550-0840A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-0840A-000 |
from US $1.12 |
||
|
18
|
18
08322-11083-000 WasherWasher DOHC; 1989-04-01~1990-01-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERDOHC; 1989-04-01~1990-01-01 |
08322-0108B-000 |
from US $0.96 |
||
|
18
|
18
08322-0108A-000 WASHERDOHC; 1989-04-01~1990-01-01 |
08322-0108A-000 |
from US $0.96 |
||
|
19
|
19
12821-70B02-000 SPRING,TENSIONERDOHC; 1989-04-01~1990-01-01 |
12821-70B02-000 |
US $5.28 |
||
|
20
|
20
02112-06206-000
Screw
DOHC; 1989-04-01~1990-01-01 |
02112-06206-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0620B-000 SCREWDOHC; 1989-04-01~1990-01-01 |
02112-0620B-000 |
US $0.96 |
||
|
20
|
20
02112-0620A-000 SCREWScrew, holder DOHC; 1989-04-01~1990-01-01 |
02112-0620A-000 |
from US $0.96 |
||
|
21
|
21
12741-53A01-000
Pulley,camshaft timing
DOHC; 1989-04-01~1990-01-01 |
12741-53A01-000 |
— | ||
|
22
|
22
01537-12256-000
ボルト
DOHC; 1989-04-01~1990-01-01 |
01537-12256-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1225A-000 BoltDOHC; 1989-04-01~1990-01-01 |
01550-1225A-000 |
from US $1.44 |
||
|
23
|
23
04221-05109-000 PINDOHC; 1989-04-01~1990-01-01 |
04221-05109-000 |
from US $0.38 |
||
|
24
|
24
09250-30002-000
キャップ,OD:30
DOHC; 1990-01-01~1990-01-01 |
09250-30002-000 |
— | ||
