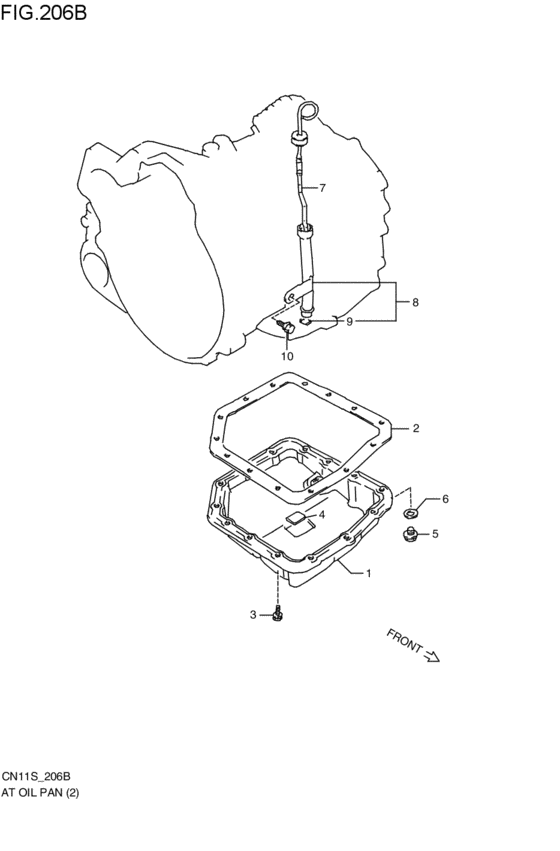

at - oil pan (AISIN; AT:DOHC; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- R
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-55A10-000 PAN,T/M OILAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24761-55A10-000 |
US $87.22 |
||
|
2
|
2
24784-55A10-000
ガスケット,トランスミッションオイルパン
AISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24784-55A10-000 |
— | ||
|
3
|
3
24882-85501-000 BOLT,T/M OIL PANAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24882-85501-000 |
US $1.52 |
||
|
4
|
4
24861-78230-000 MAGNET,OIL CLEANERAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24861-78230-000 |
US $2.58 |
||
|
5
|
5
09247-10007-000 PLUGAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
09247-10007-000 |
from US $2.43 |
||
|
6
|
6
09168-12009-000 GASKET(12X16.7X2)AISIN; AT:DOHC; 1989-04-01~1990-01-01 |
09168-12009-000 |
from US $1.22 |
||
|
7
|
7
24830-72B20-000
ゲージ,トランスミッションオイルレベル
AISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24830-72B20-000 |
— | ||
|
8
|
8
24770-72B20-000
チューブアッシ,トランスミッションオイルフィラ
AISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24770-72B20-000 |
— | ||
|
9
|
9
24785-82300-000 O-RING,OIL FILLER TUBEAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
24785-82300-000 |
US $1.62 |
||
|
10
|
10
01137-06163-000
ボルト
AISIN; AT:DOHC; 1989-04-01~1990-01-01 |
01137-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0616B-000 BoltAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
01570-0616B-000 |
from US $0.80 |
||
|
10
|
10
01570-0616A-000 BoltAISIN; AT:DOHC; 1989-04-01~1990-01-01 |
01570-0616A-000 |
from US $0.96 |
||
