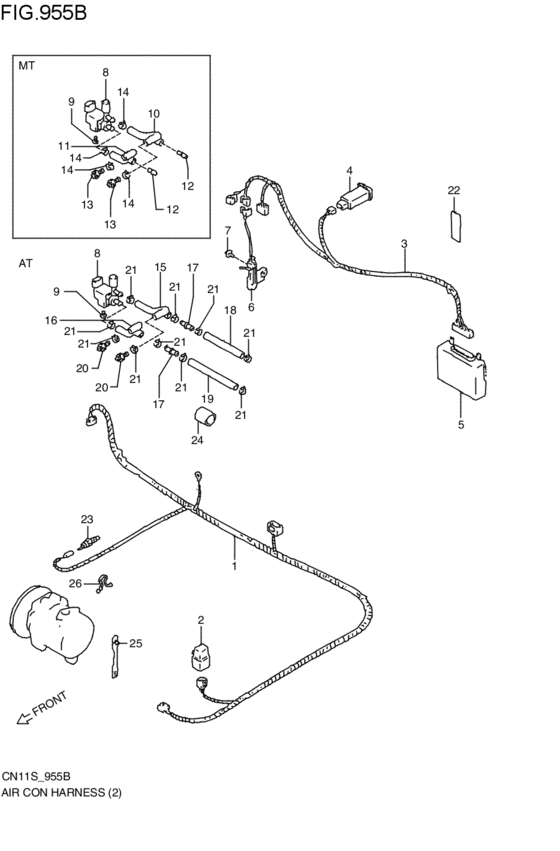

air-conditioner harness (2WD:SM; 1989-07-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- DOHC
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- SM
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95531-70B10-000
ハーネス,エンジンルーム
2WD:SM; 1989-07-01~1990-01-01 |
95531-70B10-000 |
— | ||
|
2
|
2
95551-70B00-000
リレー,エンジンクーリングファン
DENSO; 2WD:SM; 1989-07-01~1990-01-01 |
95551-70B00-000 |
— | ||
| replacement | |||||
|
2
|
2
95576-73A00-000 RELAY ASSY,CLG FANDENSO; 2WD:SM; 1989-07-01~1990-01-01 |
95576-73A00-000 |
from US $21.60 |
||
|
3
|
3
95532-70B10-000
ハーネス,インナ
2WD:SM; 1989-07-01~1990-01-01 |
95532-70B10-000 |
— | ||
|
4
|
4
95521-70B01-000
スイッチアッシ,エアコンディショナ
2WD:SM; 1989-07-01~1990-01-01 |
95521-70B01-000 |
— | ||
| replacement | |||||
|
4
|
4
95521-70B02-000 SWITCH,A/C2WD:SM; 1989-07-01~1990-01-01 |
95521-70B02-000 |
US $68.82 |
||
|
5
|
5
95510-70B00-000
コントローラ,エアコン
2WD:SM; 1989-07-01~1990-01-01 |
95510-70B00-000 |
— | ||
| replacement | |||||
|
5
|
5
95510-60D03-000
CONTROLLER,A/C
2WD:SM; 1989-07-01~1990-01-01 |
95510-60D03-000 |
— | ||
|
8
|
8
95161-70B10-000
バルブ,バキュームスイッチング
2WD:SM; 1989-07-01~1990-01-01 |
95161-70B10-000 |
— | ||
| replacement | |||||
|
8
|
8
95161-60D00-000 VSV,IDLE UP2WD:SM; 1989-07-01~1990-01-01 |
95161-60D00-000 |
US $68.40 |
||
|
9
|
9
02112-06083-000
Screw
2WD:SM; 1989-07-01~1990-01-01 |
02112-06083-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0608A-000 SCREW2WD:SM; 1989-07-01~1990-01-01 |
02112-0608A-000 |
from US $0.91 |
||
|
15
|
15
95172-70B21-000
ホース,アイドルアップEPI
2WD:SM:AT; 1989-07-01~1990-01-01 |
95172-70B21-000 |
— | ||
|
16
|
16
95171-70B21-000
ホース,アイドルアップEPI
2WD:SM:AT; 1989-07-01~1990-01-01 |
95171-70B21-000 |
— | ||
|
17
|
17
95182-70B10-000
ユニオン,ホースジョイント
2WD:SM:AT; 1989-07-01~1990-01-01 |
95182-70B10-000 |
— | ||
| replacement | |||||
|
17
|
17
09367-08001-000 JOINTJoint, fuel hose 2WD:SM:AT; 1989-07-01~1990-01-01 |
09367-08001-000 |
from US $1.98 |
||
|
18
|
18
95175-70B20-000
ホース,アイドルアップEPI,AT
2WD:SM:AT; 1989-07-01~1990-01-01 |
95175-70B20-000 |
— | ||
| replacements | |||||
|
18
|
18
09354-65113-600
HOSE(6.5X11.5X600)
2WD:SM:AT; 1989-07-01~1990-01-01 |
09354-65113-600 |
— | ||
|
18
|
18
44421-12FR0-000 HOSE2WD:SM:AT; 1989-07-01~1990-01-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
18
|
18
09354-70122-300
New Genuine Part
2WD:SM:AT; 1989-07-01~1990-01-01 |
09354-70122-300 |
— | ||
|
18
|
18
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) 2WD:SM:AT; 1989-07-01~1990-01-01 |
09355-70125-600 |
from US $6.54 |
||
|
18
|
18
09355-65001-600 Hose(6.5X11.5X600)2WD:SM:AT; 1989-07-01~1990-01-01 |
09355-65001-600 |
from US $14.74 |
||
|
19
|
19
95176-70B20-000
ホース,アイドルアップEPI,AT
2WD:SM:AT; 1989-07-01~1990-01-01 |
95176-70B20-000 |
— | ||
| replacements | |||||
|
19
|
19
09354-65113-600
HOSE(6.5X11.5X600)
2WD:SM:AT; 1989-07-01~1990-01-01 |
09354-65113-600 |
— | ||
|
19
|
19
44421-12FR0-000 HOSE2WD:SM:AT; 1989-07-01~1990-01-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
19
|
19
09354-70122-300
New Genuine Part
2WD:SM:AT; 1989-07-01~1990-01-01 |
09354-70122-300 |
— | ||
|
19
|
19
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) 2WD:SM:AT; 1989-07-01~1990-01-01 |
09355-70125-600 |
from US $6.54 |
||
|
19
|
19
09355-65001-600 Hose(6.5X11.5X600)2WD:SM:AT; 1989-07-01~1990-01-01 |
09355-65001-600 |
from US $14.74 |
||
|
20
|
20
95181-70B01-000
ユニオン,バキュームホース
2WD:SM:AT; 1989-07-01~1990-01-01 |
95181-70B01-000 |
— | ||
| replacement | |||||
|
20
|
20
95181-70B00-000
ユニオン,バキュームホース
2WD:SM:AT; 1989-07-01~1990-01-01 |
95181-70B00-000 |
— | ||
|
21
|
21
09401-12402-000
Clip, lower
2WD:SM:AT; 1989-07-01~1990-01-01 |
09401-12402-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-12404-000 CLIPClip 2WD:SM:AT; 1989-07-01~1990-01-01 |
09401-12404-000 |
from US $1.10 |
||
|
22
|
22
36930-82000-000
カバー
2WD:SM; 1989-07-01~1990-01-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
36930-82010-000 COVER,HARNESSCover, roof wire 2WD:SM; 1989-07-01~1990-01-01 |
36930-82010-000 |
from US $1.51 |
||
|
23
|
23
34850-82001-000
Gauge assy, water temperature
DENSO; 2WD:SM; 1989-07-01~1990-01-01 |
34850-82001-000 |
— | ||
| replacement | |||||
|
23
|
23
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; 2WD:SM; 1989-07-01~1990-01-01 |
34850-50A00-000 |
from US $34.79 |
||
|
24
|
24
15439-73B00-000
CUSHION,VACUUM HOSE
2WD:SM:AT; 1989-07-01~1990-01-01 |
15439-73B00-000 |
— | ||
|
25
|
25
09407-05403-000 CLAMP,L:882WD:SM; 1989-07-01~1990-01-01 |
09407-05403-000 |
from US $0.91 |
||
|
26
|
26
09408-00020-000 CLIPClamp, lead wire 2WD:SM; 1989-07-01~1990-01-01 |
09408-00020-000 |
US $9.90 |
||
