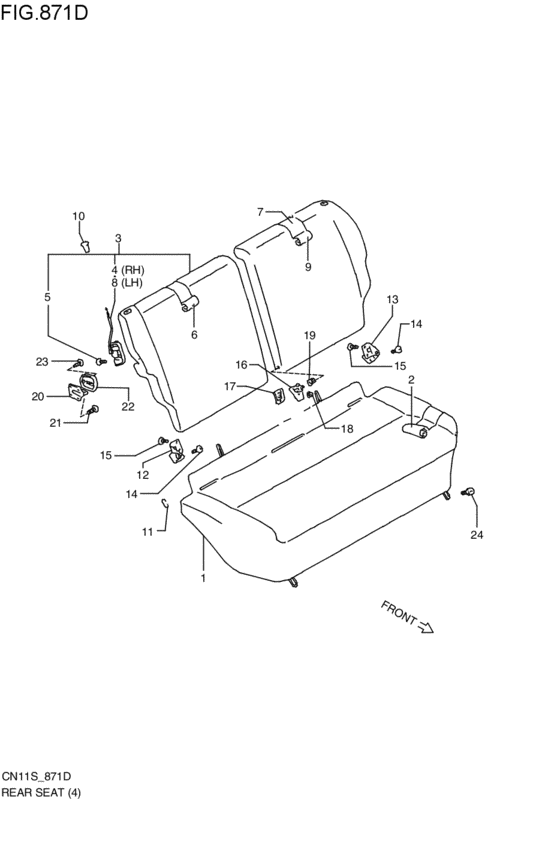

rear seat (5DR:L; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- L
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87160-71B01-000
パッド,リヤシートクッション
5DR:L; 1989-04-01~1990-01-01 |
87160-71B01-000 |
— | ||
|
2
|
2
87180-71B20-3SJ
トリム,リヤシートクッション
グレー; 5DR:L; 1989-04-01~1989-07-01 |
87180-71B20-3SJ |
— | ||
|
2
|
2
87180-71B21-3SJ
トリム,リヤシートクッション
グレー; 5DR:L; 1989-07-01~1990-01-01 |
87180-71B21-3SJ |
— | ||
|
3
|
3
87305-70B40-000
バックサブアッシ,リヤシート,ライト
5DR:L; 1989-04-01~1990-01-01 |
87305-70B40-000 |
— | ||
|
4
|
4
87840-70B40-000
ロックアッシ,リヤシートバック,ライト
5DR:L; 1989-04-01~1990-01-01 |
87840-70B40-000 |
— | ||
|
5
|
5
02142-06106-000
Screw
5DR:L; 1989-04-01~1990-01-01 |
02142-06106-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0610B-000 SCREWStopper, cl rlse cam shaft 5DR:L; 1989-04-01~1990-01-01 |
02142-0610B-000 |
from US $0.76 |
||
|
5
|
5
02142-0610A-000 SCREW5DR:L; 1989-04-01~1990-01-01 |
02142-0610A-000 |
from US $0.96 |
||
|
6
|
6
87380-70B40-3SJ
トリム,リヤシートバック,ライト
5DR:L; 1989-04-01~1990-01-01 |
87380-70B40-3SJ |
— | ||
|
7
|
7
87705-70B40-000
バックサブアッシ,リヤシート,レフト
5DR:L; 1989-04-01~1990-01-01 |
87705-70B40-000 |
— | ||
|
8
|
8
87940-70B40-000
ロックアッシ,リヤシートバック,レフト
5DR:L; 1989-04-01~1990-01-01 |
87940-70B40-000 |
— | ||
|
9
|
9
87780-70B40-3SJ
トリム,リヤシートバック,レフト
5DR:L; 1989-04-01~1990-01-01 |
87780-70B40-3SJ |
— | ||
|
10
|
10
87846-82000-5RT
KNOB
グレ-; 5DR:L; 1989-04-01~1990-01-01 |
87846-82000-5RT |
— | ||
| replacement | |||||
|
10
|
10
87846-82000-T01 KNOB,RR SEAT BACK LOCKグレ-; 5DR:L; 1989-04-01~1990-01-01 |
87846-82000-T01 |
US $1.76 |
||
|
11
|
11
09387-19001-000 RING5DR:L; 1989-04-01~1990-01-01 |
09387-19001-000 |
from US $0.77 |
||
|
12
|
12
87850-70B00-000 HINGE,RR SEAT BACK,R5DR:L; 1989-04-01~1990-01-01 |
87850-70B00-000 |
US $11.19 |
||
|
13
|
13
87950-70B00-000 HINGE,RR SEAT BACK,L5DR:L; 1989-04-01~1990-01-01 |
87950-70B00-000 |
US $11.19 |
||
|
14
|
14
09125-06036-000 SCREW(6X15)5DR:L; 1989-04-01~1990-01-01 |
09125-06036-000 |
from US $0.16 |
||
|
15
|
15
09125-06036-000 SCREW(6X15)5DR:L; 1989-04-01~1990-01-01 |
09125-06036-000 |
from US $0.16 |
||
|
16
|
16
87860-70B00-000
HINGE,RR BACK,CTR
5DR:L; 1989-04-01~1990-01-01 |
87860-70B00-000 |
— | ||
|
17
|
17
87880-70B00-000
GUSSET,RR BACK CTR HINGE
5DR:L; 1989-04-01~1990-01-01 |
87880-70B00-000 |
— | ||
|
18
|
18
08316-26066-000
Nut 6mm
5DR:L; 1989-04-01~1990-01-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
18
|
18
08316-2006A-000 NUT5DR:L; 1989-04-01~1990-01-01 |
08316-2006A-000 |
from US $0.76 |
||
|
18
|
18
08316-1006B-000 NUT5DR:L; 1989-04-01~1990-01-01 |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
83531-78000-000
CASE,RR SEAT BACK HINGE PIN
5DR:L; 1989-04-01~1990-01-01 |
83531-78000-000 |
— | ||
|
20
|
20
87870-84020-000
STRIKER,RR SEAT BACK LOCK
5DR:L; 1989-04-01~1990-01-01 |
87870-84020-000 |
— | ||
|
21
|
21
09125-06036-000 SCREW(6X15)5DR:L; 1989-04-01~1990-01-01 |
09125-06036-000 |
from US $0.16 |
||
|
22
|
22
87890-84000-5RT
カバー,リヤシートバックストライカ(グレー)
グレ-; 5DR:L; 1989-04-01~1990-01-01 |
87890-84000-5RT |
— | ||
| replacement | |||||
|
22
|
22
87890-84000-6GL
COVER,RR SEAT BACK STRIKER
グレ-; 5DR:L; 1989-04-01~1990-01-01 |
87890-84000-6GL |
— | ||
|
23
|
23
03141-04085-000
New Genuine Part
5DR:L; 1989-04-01~1990-01-01 |
03141-04085-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0408A-000 SCREW5DR:L; 1989-04-01~1990-01-01 |
03141-0408A-000 |
from US $0.79 |
||
|
24
|
24
09136-06017-000 SCREW(6X16)5DR:L; 1989-04-01~1990-01-01 |
09136-06017-000 |
from US $0.80 |
||
