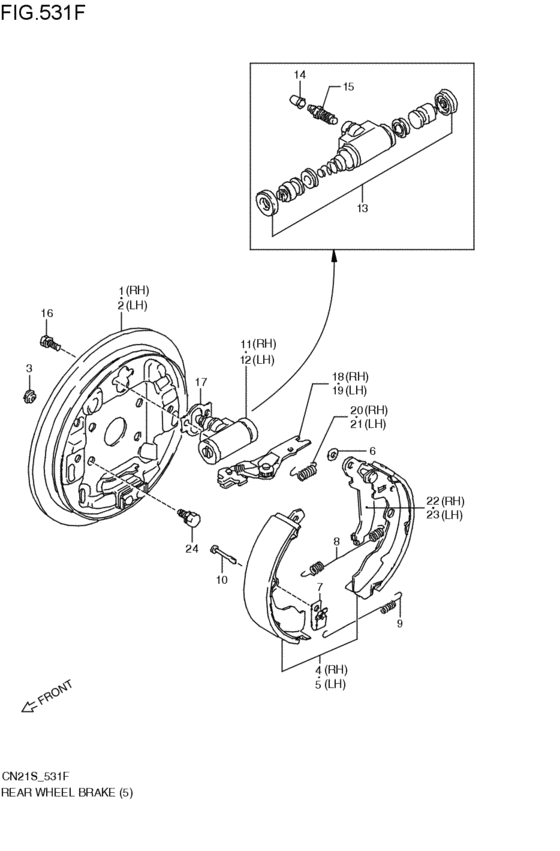

rear wheel brakes (2WD:RSX; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- RSX
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53101-50A10-000 PLATE,RR BRAKE BACKING,RABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53101-50A10-000 |
US $110.03 |
||
|
2
|
2
53102-50A10-000 PLATE,RR BRAKE BACKING,LABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53102-50A10-000 |
US $163.39 |
||
|
3
|
3
53141-84010-000 PLUG,BACKING PLATEABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53141-84010-000 |
from US $0.83 |
||
|
4
|
4
53820-70B00-000
シューセット,リヤブレーキ,ライト
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53820-70B00-000 |
— | ||
| replacement | |||||
|
4
|
4
53800-60800-000 SHOE SET,RR BRAKE NON ASBESTOSABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53800-60800-000 |
US $72.13 |
||
|
5
|
5
53830-70B00-000
シューセット,リヤブレーキ,レフト
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53830-70B00-000 |
— | ||
|
6
|
6
09148-06005-000
Nut seat moldin
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
09148-06005-000 |
— | ||
| replacement | |||||
|
6
|
6
09148-06008-000 NUTNut, adjuster knob ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
09148-06008-000 |
from US $0.83 |
||
|
7
|
7
52243-84010-000 SPRING,SHOE HOLD DOWNABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
52243-84010-000 |
from US $2.21 |
||
|
8
|
8
53231-84010-000 SPRING,SHOE RETURN UPRABSナシ UPPER; 2WD:RSX; 1990-01-01~1991-08-01 |
53231-84010-000 |
US $7.36 |
||
|
9
|
9
53232-70B00-000
スプリング,シューリターン
ABSナシ LOWER; 2WD:RSX; 1990-01-01~1991-08-01 |
53232-70B00-000 |
— | ||
| replacement | |||||
|
9
|
9
53232-70G00-000 SPRING,SHOE RETURN LOWERABSナシ LOWER; 2WD:RSX; 1990-01-01~1991-08-01 |
53232-70G00-000 |
US $5.47 |
||
|
10
|
10
53241-84010-000 PIN,SHOE HOLD DOWNABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53241-84010-000 |
US $2.88 |
||
|
11
|
11
53401-70B11-000
シリンダアッシ,リヤホイール,ライト
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53401-70B11-000 |
— | ||
| replacement | |||||
|
11
|
11
53401-70B12-000
CYLINDER ASSY,RR WHEEL,R
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53401-70B12-000 |
— | ||
|
12
|
12
53402-70B11-000
シリンダアッシ,リヤホイール,レフト
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53402-70B11-000 |
— | ||
| replacement | |||||
|
12
|
12
53402-70B12-000 CYLINDER ASSY,RR WHEEL,LABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53402-70B12-000 |
US $230 |
||
|
13
|
13
53810-70B10-000
カップ/ブーツセット
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53810-70B10-000 |
— | ||
| replacement | |||||
|
13
|
13
53810-70B11-000
PISTON CUP&BOOT SET
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53810-70B11-000 |
— | ||
|
14
|
14
52474-60010-000
キャップ,ブリーダプラグ
ABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
52474-60010-000 |
— | ||
| replacements | |||||
|
14
|
14
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug ABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
55156-66310-000 |
from US $1.98 |
||
|
14
|
14
59122-18410-000
Cap, bleeder plug
ABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
59122-18410-000 |
— | ||
|
15
|
15
55151-81400-000
プラグ,ブリーダ
ABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
55151-81400-000 |
— | ||
| replacement | |||||
|
15
|
15
55151-78451-000 PLUG,BLEEDERABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
55151-78451-000 |
from US $4.32 |
||
|
16
|
16
52476-84010-000
ボルト
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
52476-84010-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0610A-000 BoltABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
01570-0610A-000 |
from US $2.48 |
||
|
16
|
16
01570-06103-000
Bolt
ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
01570-06103-000 |
— | ||
|
17
|
17
53446-50A10-000 SEAT,REAR WHEEL CYLINDERABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
53446-50A10-000 |
US $2.29 |
||
|
18
|
18
53702-84010-000 STRUT ASSY,PARKING SHOEABSナシ RH; 2WD:RSX; 1990-01-01~1991-08-01 |
53702-84010-000 |
US $50.40 |
||
|
19
|
19
53701-84010-000 STRUT ASSY,PARKING SHOEABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
53701-84010-000 |
US $56 |
||
|
20
|
20
53716-84010-000 SPRING,STRUT SHOE RETURN RABSナシ RH; 2WD:RSX; 1990-01-01~1991-08-01 |
53716-84010-000 |
US $2.24 |
||
|
21
|
21
53715-84010-000 SPRING,STRUT SHOE RETURN LABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
53715-84010-000 |
US $6.40 |
||
|
22
|
22
53751-50A10-000 LEVER,PARKING SHOEABSナシ RH; 2WD:RSX; 1990-01-01~1991-08-01 |
53751-50A10-000 |
US $20.80 |
||
|
23
|
23
53761-50A10-000 LEVER,PARKING SHOEABSナシ LH; 2WD:RSX; 1990-01-01~1991-08-01 |
53761-50A10-000 |
US $21.60 |
||
|
24
|
24
09117-08070-000 BOLT(8X19)ABSナシ; 2WD:RSX; 1990-01-01~1991-08-01 |
09117-08070-000 |
US $19.10 |
||
