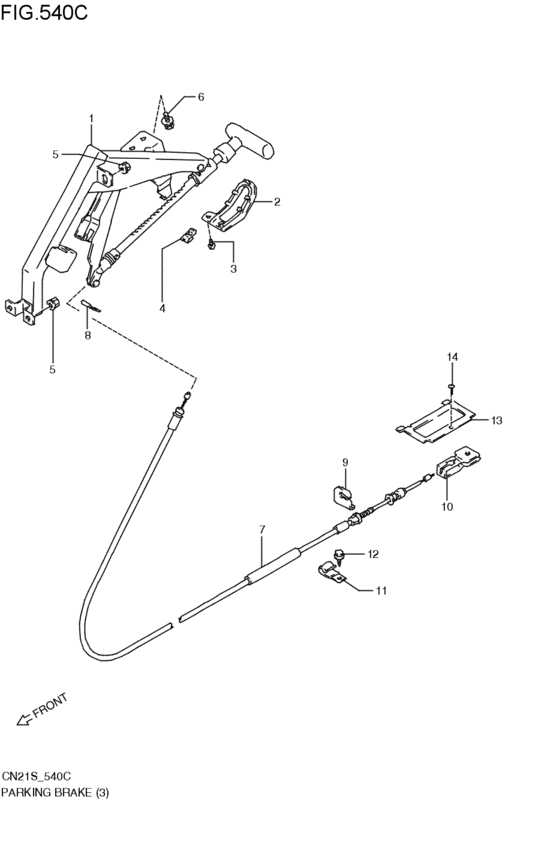

parking brakes (TYPE1:SD,TYPE2:(AQ,BQ); 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- 5DR
- grade
- BQ
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54000-70B30-000
レバーアッシ,パーキングブレーキ
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
54000-70B30-000 |
— | ||
|
2
|
2
73841-71B10-6GL
ガーニッシュ,パーキングレバー(ブラック)
ブラック; TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
73841-71B10-6GL |
— | ||
|
3
|
3
03242-05165-000
Screw
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
03242-05165-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0516A-000 SCREWTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
03241-0516A-000 |
from US $0.76 |
||
|
4
|
4
09148-05005-000 NUTTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09148-05005-000 |
US $1.28 |
||
|
5
|
5
09159-08052-000
NUT 8MM
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09159-08052-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-08135-000 NUTTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09159-08135-000 |
from US $0.81 |
||
|
6
|
6
01187-08205-000
Bolt
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
01187-08205-000 |
— | ||
| replacement | |||||
|
6
|
6
01580-0820A-000 BoltTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
01580-0820A-000 |
from US $0.91 |
||
|
7
|
7
54410-70B30-000
ケーブル,パーキングブレーキ,フロント
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
54410-70B30-000 |
— | ||
|
8
|
8
54493-50A40-000 CLIP,PARKING CABLE,FRTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
54493-50A40-000 |
US $4.27 |
||
|
9
|
9
54495-70B30-000 STRENGTH,PARKING CABLETYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
54495-70B30-000 |
US $5.63 |
||
|
10
|
10
54310-50A40-000
イコライザ,パーキングブレーキ
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
54310-50A40-000 |
— | ||
|
11
|
11
09403-09301-000
CLAMP
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09403-09301-000 |
— | ||
| replacement | |||||
|
11
|
11
09403-09329-000 ClampTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09403-09329-000 |
US $16.20 |
||
|
12
|
12
09132-06008-000 SCREW(6X12)TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
09132-06008-000 |
US $12.90 |
||
|
13
|
13
75431-51A00-000
リッド,パーキングワイヤブラケット
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
75431-51A00-000 |
— | ||
|
14
|
14
03241-05088-000
スクリュ
TYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
03241-05088-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0508A-000 SCREWTYPE2:(AQ,BQ); 1991-01-01~1991-08-01 |
03241-0508A-000 |
US $0.80 |
||
