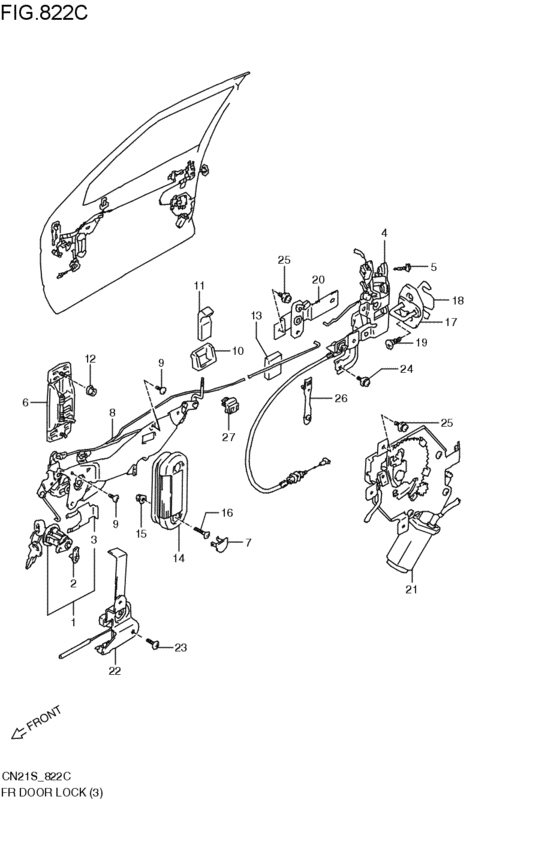

front door lock (SDR:RH; SDR; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- SDR
- grade
- CG
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82200-50870-000
シリンダ,フロントドアロック,ライト
RH; SDR:TYPE2; 1991-01-01~1991-08-01 |
82200-50870-000 |
— | ||
| replacement | |||||
|
1
|
1
82200-70831-000
シリンダ,フロントドアラッチ,ライト
RH; SDR:TYPE2; 1991-01-01~1991-08-01 |
82200-70831-000 |
— | ||
|
2
|
2
82287-60A00-000 HOLDERRH; SDR; 1990-01-01~1991-08-01 |
82287-60A00-000 |
from US $1.60 |
||
|
3
|
3
82577-61A00-000 RETAINER,RR GATE LATCHRH; SDR; 1990-01-01~1991-08-01 |
82577-61A00-000 |
from US $2.07 |
||
|
4
|
4
82201-73B11-000
ラッチアッシ,フロントドア,ライト
RH; SDR; 1990-01-01~1991-08-01 |
82201-73B11-000 |
— | ||
|
5
|
5
02132-56166-000
スクリュ
RH; SDR; 1990-01-01~1991-08-01 |
02132-56166-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-5616B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02122-5616B-000 |
US $0.80 |
||
|
6
|
6
82810-73B10-5PK
ハンドル,フロントドアアウタ,ライト(ブラック)
RH,ブラック; SDR; 1990-01-01~1991-08-01 |
82810-73B10-5PK |
— | ||
|
7
|
7
82981-73B00-6GL
キャップ,ドアインサイドハンドル(ブラック)
RH,ブラック; SDR:TYPE2; 1991-01-01~1991-08-01 |
82981-73B00-6GL |
— | ||
|
8
|
8
83210-73B11-000
リンク,フロントドアインサイド,ライト
RH; SDR; 1990-01-01~1991-08-01 |
83210-73B11-000 |
— | ||
|
9
|
9
02142-06106-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02142-06106-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft RH; SDR; 1990-01-01~1991-08-01 |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02142-0610A-000 |
from US $0.96 |
||
|
10
|
10
82971-70B02-5PK CASE,DR INS LOCK KNOBRH,ブラック; SDR; 1990-01-01~1991-08-01 |
82971-70B02-5PK |
US $6 |
||
|
11
|
11
82973-70B01-5PK
KNOB,DOOR INSIDE LOCK
RH,ブラック; SDR; 1990-01-01~1991-08-01 |
82973-70B01-5PK |
— | ||
|
12
|
12
08316-26066-000
Nut 6mm
RH; SDR; 1990-01-01~1991-08-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
12
|
12
08316-2006A-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
08316-1006B-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
77591-75000-000 PADRH; SDR; 1990-01-01~1991-08-01 |
77591-75000-000 |
from US $0.56 |
||
|
14
|
14
82910-73B00-6GL
ハンドル,ドアインサイド,ライト(ブラック)
RH,ブラック; SDR:TYPE2; 1991-01-01~1991-08-01 |
82910-73B00-6GL |
— | ||
|
15
|
15
08316-26066-000
Nut 6mm
RH; SDR; 1990-01-01~1991-08-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
15
|
15
08316-2006A-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-2006A-000 |
from US $0.76 |
||
|
15
|
15
08316-1006B-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
02112-06256-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02112-06256-000 |
— | ||
| replacements | |||||
|
16
|
16
02112-0625B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02112-0625B-000 |
US $0.80 |
||
|
16
|
16
02112-0625A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02112-0625A-000 |
from US $0.80 |
||
|
17
|
17
82630-73B10-000
ストライカ,ドアラッチ,ライト
RH; SDR; 1990-01-01~1991-08-01 |
82630-73B10-000 |
— | ||
|
18
|
18
82681-80100-000 SPACER,STRIKERRH; SDR; 1990-01-01~1991-08-01 |
82681-80100-000 |
US $1.60 |
||
|
19
|
19
09137-08010-000
スクリュ,8X25
RH; SDR; 1990-01-01~1991-08-01 |
09137-08010-000 |
— | ||
|
20
|
20
83270-73B10-000
ベルクランク,フロントドア,ライト
RH; SDR; 1990-01-01~1991-08-01 |
83270-73B10-000 |
— | ||
|
21
|
21
83301-73B11-000
クロージャアッシ,フロントドア,ライト
RH; SDR; 1990-01-01~1991-08-01 |
83301-73B11-000 |
— | ||
|
22
|
22
83370-73B10-000
キャンセル,フロントドア
RH; SDR; 1990-01-01~1991-08-01 |
83370-73B10-000 |
— | ||
|
23
|
23
02142-06106-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02142-06106-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0610B-000 SCREWStopper, cl rlse cam shaft RH; SDR; 1990-01-01~1991-08-01 |
02142-0610B-000 |
from US $0.76 |
||
|
23
|
23
02142-0610A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02142-0610A-000 |
from US $0.96 |
||
|
24
|
24
02112-76126-000
SCREW
RH; SDR; 1990-01-01~1991-08-01 |
02112-76126-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-7612B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02112-7612B-000 |
from US $1.12 |
||
|
25
|
25
02112-76126-000
SCREW
RH; SDR; 1990-01-01~1991-08-01 |
02112-76126-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-7612B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02112-7612B-000 |
from US $1.12 |
||
|
26
|
26
09407-05403-000 CLAMP,L:88RH; SDR; 1990-01-01~1991-08-01 |
09407-05403-000 |
from US $0.91 |
||
|
27
|
27
83271-63D10-000 CLIP,DR R/CON RODRH; SDR; 1990-01-01~1991-08-01 |
83271-63D10-000 |
from US $1.60 |
||
