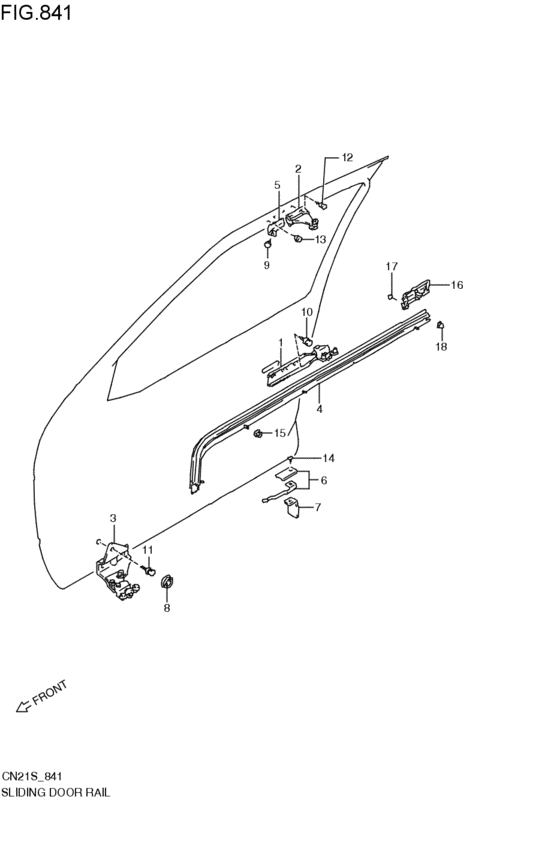

slide door rail (スライドドア(ライト); SDR; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- SDR
- grade
- CG
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84110-73B02-000
ヒンジアッシ,スライド,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84110-73B02-000 |
— | ||
|
2
|
2
84120-73B03-000
アームアッシ,フロントドアアッパ,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84120-73B03-000 |
— | ||
|
3
|
3
84130-73B02-000
アームアッシ,スライドロア,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84130-73B02-000 |
— | ||
|
4
|
4
84150-73B01-000
レールアッシ,センタガイド,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84150-73B01-000 |
— | ||
|
5
|
5
84161-73B00-000
ブラケット,フロントドアアッパストッパ,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84161-73B00-000 |
— | ||
|
6
|
6
84170-73B02-000
スプリング,ロアレール,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84170-73B02-000 |
— | ||
|
7
|
7
84173-73B00-000
ブラケット,ロアレールスプリング,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84173-73B00-000 |
— | ||
|
8
|
8
09250-25007-000 CAP(OD:25.0)RH; SDR; 1990-01-01~1991-08-01 |
09250-25007-000 |
from US $1.31 |
||
|
9
|
9
09321-08022-000 CUSHIONRH; SDR; 1990-01-01~1991-08-01 |
09321-08022-000 |
from US $3.04 |
||
|
10
|
10
01174-08166-000
ボルト
RH; SDR; 1990-01-01~1991-08-01 |
01174-08166-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0816A-000 BoltRH; SDR; 1990-01-01~1991-08-01 |
01580-0816A-000 |
from US $0.96 |
||
|
11
|
11
01174-08206-000
ボルト
RH; SDR; 1990-01-01~1991-08-01 |
01174-08206-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0820A-000 BoltRH; SDR; 1990-01-01~1991-08-01 |
01580-0820A-000 |
from US $0.91 |
||
|
12
|
12
01177-06166-000
Bolt, rear
RH; SDR; 1990-01-01~1991-08-01 |
01177-06166-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0616A-000 BoltRH; SDR; 1990-01-01~1991-08-01 |
01580-0616A-000 |
from US $0.96 |
||
|
13
|
13
01177-06166-000
Bolt, rear
RH; SDR; 1990-01-01~1991-08-01 |
01177-06166-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0616A-000 BoltRH; SDR; 1990-01-01~1991-08-01 |
01580-0616A-000 |
from US $0.96 |
||
|
14
|
14
02142-05103-000
Screw 5x10
RH; SDR; 1990-01-01~1991-08-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0510B-000 SCREWBolt RH; SDR; 1990-01-01~1991-08-01 |
02142-0510B-000 |
from US $0.72 |
||
|
15
|
15
08316-26066-000
Nut 6mm
RH; SDR; 1990-01-01~1991-08-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
15
|
15
08316-2006A-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-2006A-000 |
from US $0.76 |
||
|
15
|
15
08316-1006B-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
08316-1006B-000 |
from US $0.80 |
||
|
16
|
16
77311-73B00-5PK
ガーニッシュ,センタレール,ライト(ブラック)
RH,ブラック; SDR; 1990-01-01~1991-08-01 |
77311-73B00-5PK |
— | ||
|
17
|
17
03241-04165-000
Screw, front
RH; SDR; 1990-01-01~1991-08-01 |
03241-04165-000 |
— | ||
| replacement | |||||
|
17
|
17
03242-0416B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
03242-0416B-000 |
from US $2.88 |
||
|
18
|
18
09148-04021-000 NUTRH; SDR; 1990-01-01~1991-08-01 |
09148-04021-000 |
from US $0.29 |
||
