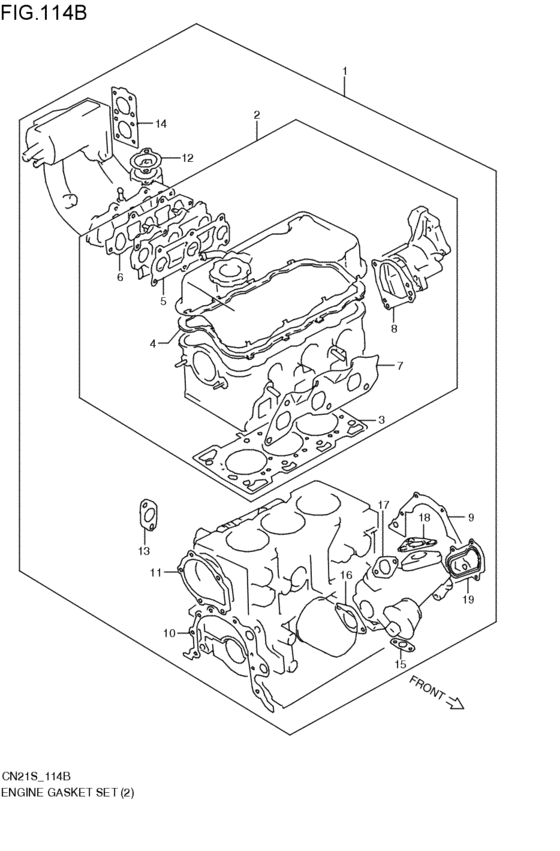

engine gasket set (2V:TURBO; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SX
- type
- TYPE2
- body
- S
- 寒冷地
- COLD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-63885-000
ガスケットセット,エンジン
2V:TURBO; 1990-01-01~1991-08-01 |
11400-63885-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-63834-000
ガスケットセット,エンジン
2V:TURBO; 1990-01-01~1991-08-01 |
11401-63834-000 |
— | ||
|
2
|
2
11100-70821-000
ガスケットセット,シリンダヘッド
2V:TURBO; 1990-01-01~1991-08-01 |
11100-70821-000 |
— | ||
|
3
|
3
11141-81401-000 GASKET,CYL HEAD2V:TURBO; 1990-01-01~1991-08-01 |
11141-81401-000 |
from US $66.42 |
||
|
4
|
4
11189-62C00-000 GASKET,CYL HEAD COVER2V:TURBO; 1990-01-01~1991-08-01 |
11189-62C00-000 |
US $17.61 |
||
| replacement | |||||
|
4
|
4
11189-78101-000 Gasket, Cylinder Head Cover2V:TURBO; 1990-01-01~1991-08-01 |
11189-78101-000 |
US $25.60 |
||
|
5
|
5
13119-54A01-000
ガスケット,インテークマニホールド
2V:TURBO; 1990-01-01~1991-08-01 |
13119-54A01-000 |
— | ||
| replacement | |||||
|
5
|
5
13119-84360-000 GASKET,INTK MANF2V:TURBO; 1990-01-01~1991-08-01 |
13119-84360-000 |
from US $3.94 |
||
|
6
|
6
13159-72B50-000 GASKET,PLATE2V:TURBO; 1990-01-01~1991-08-01 |
13159-72B50-000 |
US $30.40 |
||
|
7
|
7
14140-81050-000
ガスケット,エキゾーストマニホールド
2V:TURBO; 1990-01-01~1991-08-01 |
14140-81050-000 |
— | ||
| replacement | |||||
|
7
|
7
14141-67F02-000 GASKET,EXH MANF2V:TURBO; 1990-01-01~1991-08-01 |
14141-67F02-000 |
from US $15.91 |
||
|
8
|
8
11169-70D00-000
ガスケット,ケース
2V:TURBO; 1990-01-01~1991-08-01 |
11169-70D00-000 |
— | ||
| replacement | |||||
|
8
|
8
11169-70D01-000 GASKET,DISTRIBUTOR CASE2V:TURBO; 1990-01-01~1991-08-01 |
11169-70D01-000 |
US $2.56 |
||
|
9
|
9
11349-73010-000 GASKET,OIL SEAL HSG2V:TURBO; 1990-01-01~1991-08-01 |
11349-73010-000 |
US $6.40 |
||
|
10
|
10
16119-73012-000 GASKET,OIL PUMP CASE2V:TURBO; 1990-01-01~1991-08-01 |
16119-73012-000 |
US $22.40 |
||
| replacement | |||||
|
10
|
10
16119-76G00-000 GASKET,OIL PUMP CASE2V:TURBO; 1990-01-01~1991-08-01 |
16119-76G00-000 |
US $8.64 |
||
|
11
|
11
17431-73001-000 GASKET,WATER PUMP2V:TURBO; 1990-01-01~1991-08-01 |
17431-73001-000 |
US $1.82 |
||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAP2V:TURBO; 1990-01-01~1991-08-01 |
17569-82001-H17 |
US $2.24 |
||
|
13
|
13
17559-73000-H17
ガスケット,ウォータ,インレット
2V:TURBO; 1990-01-01~1991-08-01 |
17559-73000-H17 |
— | ||
| replacement | |||||
|
13
|
13
17559-73010-000 GASKET,WATER INLET PIPE2V:TURBO; 1990-01-01~1991-08-01 |
17559-73010-000 |
from US $1.52 |
||
|
14
|
14
13421-64D00-000
ガスケット,スロットルボディ
2V:TURBO; 1990-01-01~1991-08-01 |
13421-64D00-000 |
— | ||
| replacement | |||||
|
14
|
14
13421-64D03-000 GASKET,THROTTLE BODY2V:TURBO; 1990-01-01~1991-08-01 |
13421-64D03-000 |
US $2.40 |
||
|
15
|
15
13945-56F00-000
ガスケット,オイルドレーン
2V:TURBO; 1990-01-01~1991-08-01 |
13945-56F00-000 |
— | ||
| replacement | |||||
|
15
|
15
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain 2V:TURBO; 1990-01-01~1991-08-01 |
13945-70G50-000 |
from US $4.68 |
||
|
16
|
16
13955-82150-000
ガスケット,インテークパイプエア
2V:TURBO; 1990-01-01~1991-08-01 |
13955-82150-000 |
— | ||
| replacement | |||||
|
16
|
16
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe 2V:TURBO; 1990-01-01~1991-08-01 |
13955-56F00-000 |
from US $2.14 |
||
|
17
|
17
13965-81050-000
ガスケット,アウトレットパイプエア
2V:TURBO; 1990-01-01~1991-08-01 |
13965-81050-000 |
— | ||
| replacement | |||||
|
17
|
17
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe 2V:TURBO; 1990-01-01~1991-08-01 |
13965-56F00-000 |
from US $2.07 |
||
|
18
|
18
14181-84150-000
ガスケット,ターボチャージャ
2V:TURBO; 1990-01-01~1991-08-01 |
14181-84150-000 |
— | ||
| replacement | |||||
|
18
|
18
14181-81051-000 GASKET,EXH FLANGE2V:TURBO; 1990-01-01~1991-08-01 |
14181-81051-000 |
US $20 |
||
|
19
|
19
14182-72B50-000
ガスケット,ターボアウトレットパイプ
2V:TURBO; 1990-01-01~1991-08-01 |
14182-72B50-000 |
— | ||
| replacement | |||||
|
19
|
19
14182-72B51-000 GASKET,T/C OUTLET PIPE2V:TURBO; 1990-01-01~1991-08-01 |
14182-72B51-000 |
US $40 |
||
