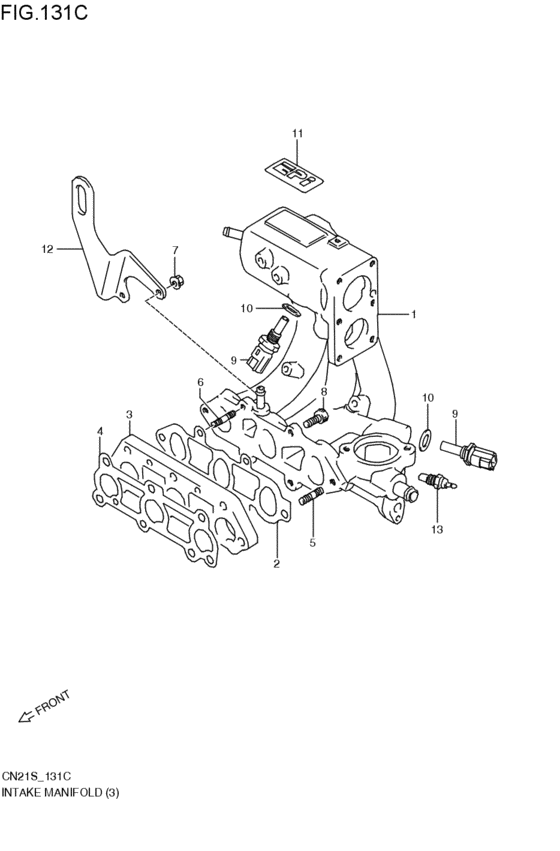

intake manifold (2V:TURBO; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SX
- type
- TYPE2
- body
- S
- 寒冷地
- COLD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-52E01-000
マニホールド,インテーク
2V:TURBO; 1990-01-01~1991-08-01 |
13110-52E01-000 |
— | ||
| replacements | |||||
|
1
|
1
01570-0610A-000 Bolt2V:TURBO; 1990-01-01~1991-08-01 |
01570-0610A-000 |
from US $2.48 |
||
|
1
|
1
09251-07004-000 CAP2V:TURBO; 1990-01-01~1991-08-01 |
09251-07004-000 |
US $43.40 |
||
|
1
|
1
09401-12404-000 CLIPClip 2V:TURBO; 1990-01-01~1991-08-01 |
09401-12404-000 |
from US $1.52 |
||
|
1
|
1
09407-12404-000 CLAMP(L:140)2V:TURBO; 1990-01-01~1991-08-01 |
09407-12404-000 |
US $2.08 |
||
|
1
|
1
13110-52E05-000
マニホールド,インテーク
2V:TURBO; 1990-01-01~1991-08-01 |
13110-52E05-000 |
— | ||
|
1
|
1
18115-74F10-000
バルブ,EGRコントロール
2V:TURBO; 1990-01-01~1991-08-01 |
18115-74F10-000 |
— | ||
|
1
|
1
36737-50E00-000
BRACKET,INJECTOR HARN
2V:TURBO; 1990-01-01~1991-08-01 |
36737-50E00-000 |
— | ||
|
1
|
1
01570-06103-000
Bolt
2V:TURBO; 1990-01-01~1991-08-01 |
01570-06103-000 |
— | ||
|
2
|
2
13159-72B50-000 GASKET,PLATE2V:TURBO; 1990-01-01~1991-08-01 |
13159-72B50-000 |
US $30.40 |
||
|
3
|
3
13151-72B52-000
プレート,インテークマニホールド
2V:TURBO; 1990-01-01~1991-08-01 |
13151-72B52-000 |
— | ||
|
4
|
4
13119-54A01-000
ガスケット,インテークマニホールド
2V:TURBO; 1990-01-01~1991-08-01 |
13119-54A01-000 |
— | ||
| replacement | |||||
|
4
|
4
13119-84360-000 GASKET,INTK MANF2V:TURBO; 1990-01-01~1991-08-01 |
13119-84360-000 |
from US $3.94 |
||
|
5
|
5
01421-06163-000
Bolt
2V:TURBO; 1990-01-01~1991-08-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0616A-000 BOLT,STUD2V:TURBO; 1990-01-01~1991-08-01 |
01421-0616A-000 |
from US $1.07 |
||
|
6
|
6
01421-06203-000
Stud bolt (l:20)(green)
2V:TURBO; 1990-01-01~1991-08-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0620A-000 BOLT,STUD2V:TURBO; 1990-01-01~1991-08-01 |
01421-0620A-000 |
from US $1.12 |
||
|
7
|
7
08316-16063-000 Nut2V:TURBO; 1990-01-01~1991-08-01 |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT2V:TURBO; 1990-01-01~1991-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
07110-08165-000
Bolt
2V:TURBO; 1990-01-01~1991-08-01 |
07110-08165-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0816A-000 BOLT2V:TURBO; 1990-01-01~1991-08-01 |
07130-0816A-000 |
from US $1.06 |
||
|
9
|
9
13650-61B00-000 SENSOR,TEMPDENSO; 2V:TURBO; 1990-01-01~1991-08-01 |
13650-61B00-000 |
from US $46.40 |
||
|
10
|
10
09168-12016-000 GASKET(12.2X21X0.8)2V:TURBO; 1990-01-01~1991-08-01 |
09168-12016-000 |
from US $1.12 |
||
|
11
|
11
11965-64D01-000
プレート,サージタンク
2V:TURBO; 1990-01-01~1991-08-01 |
11965-64D01-000 |
— | ||
|
12
|
12
11851-52E00-000
フック,エンジン
2V:TURBO; 1990-01-01~1991-08-01 |
11851-52E00-000 |
— | ||
|
13
|
13
34850-70B10-000 GAUGE ASSY,WATER TEMPDENSO; 2V:TURBO; 1990-01-01~1991-08-01 |
34850-70B10-000 |
US $48 |
||
