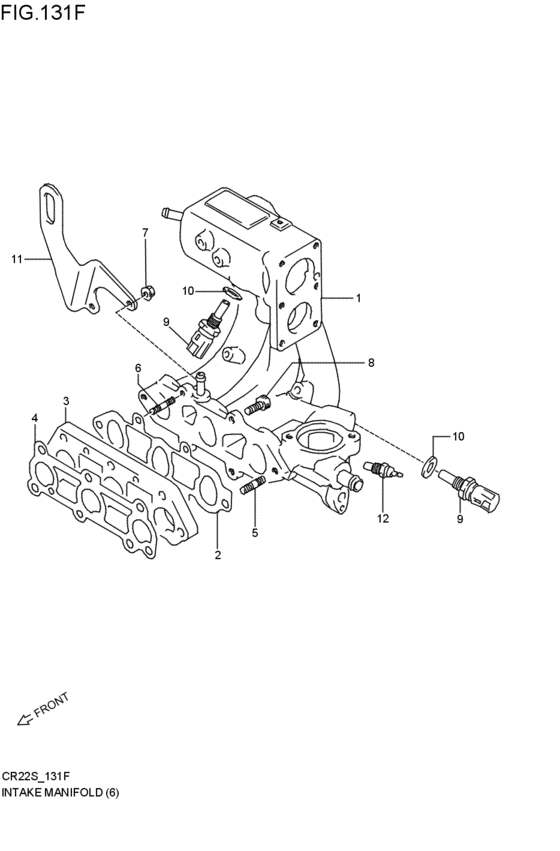

intake manifold (2V:EPI; 1994-03-01~1994-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- AA
- type
- TYPE5
- body
- S
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-64F01-000
マニホールド,インテーク
2V:EPI; 1994-03-01~1994-11-01 |
13110-64F01-000 |
— | ||
|
2
|
2
13159-72B50-000 GASKET,PLATE2V:EPI; 1994-03-01~1994-11-01 |
13159-72B50-000 |
US $30.40 |
||
|
3
|
3
13150-64F00-000
プレート,インテークマニホールド
2V:EPI; 1994-03-01~1994-11-01 |
13150-64F00-000 |
— | ||
|
4
|
4
13119-84360-000 GASKET,INTK MANF2V:EPI; 1994-03-01~1994-11-01 |
13119-84360-000 |
from US $3.94 |
||
|
5
|
5
01421-06163-000
Bolt
2V:EPI; 1994-03-01~1994-11-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0616A-000 BOLT,STUD2V:EPI; 1994-03-01~1994-11-01 |
01421-0616A-000 |
from US $1.07 |
||
|
6
|
6
01421-06203-000
Stud bolt (l:20)(green)
2V:EPI; 1994-03-01~1994-11-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0620A-000 BOLT,STUD2V:EPI; 1994-03-01~1994-11-01 |
01421-0620A-000 |
from US $1.15 |
||
|
7
|
7
08316-10063-000
Nut
2V:EPI; 1994-03-01~1994-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT2V:EPI; 1994-03-01~1994-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
07130-08163-000
Bolt
2V:EPI; 1994-03-01~1994-11-01 |
07130-08163-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0816A-000 Bolt2V:EPI; 1994-03-01~1994-11-01 |
07130-0816A-000 |
from US $1.06 |
||
|
9
|
9
13650-61B00-000 SENSOR,TEMPDENSO; 2V:EPI; 1994-03-01~1994-11-01 |
13650-61B00-000 |
from US $39.02 |
||
|
10
|
10
09168-12016-000 GASKET(12.2X21X0.8)2V:EPI; 1994-03-01~1994-11-01 |
09168-12016-000 |
from US $1.28 |
||
|
11
|
11
11851-73001-000
フック,エンジン
2V:EPI; 1994-03-01~1994-11-01 |
11851-73001-000 |
— | ||
| replacement | |||||
|
11
|
11
11851-62B00-000 HOOK2V:EPI; 1994-03-01~1994-11-01 |
11851-62B00-000 |
from US $1.87 |
||
|
12
|
12
34850-70B10-000 GAUGE ASSY,WATER TEMPDENSO; 2V:EPI; 1994-03-01~1994-11-01 |
34850-70B10-000 |
US $48 |
||
