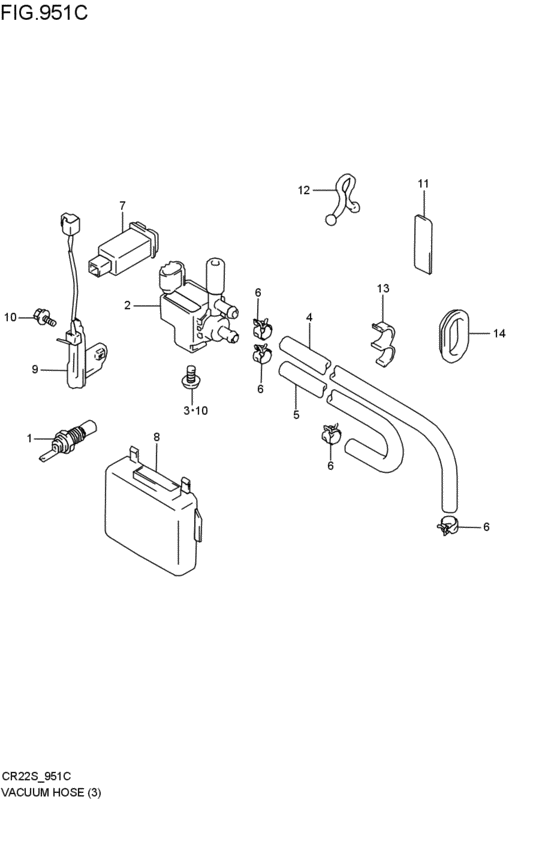

vacuum hose (EPI:AA; 1994-04-01~1994-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- AA
- type
- TYPE5
- body
- S
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature EPI:AA; 1994-04-01~1994-11-01 |
34850-50A00-000 |
from US $34.79 |
||
|
2
|
2
95161-60D00-000 VSV,IDLE UPEPI:AA; 1994-04-01~1994-11-01 |
95161-60D00-000 |
US $68.40 |
||
|
3
|
3
01550-06103-000
Bolt, front
EPI:AA; 1994-04-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt EPI:AA; 1994-04-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
3
|
3
01550-0610A-000 BoltEPI:AA; 1994-04-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
4
|
4
95172-52E01-000
ホース,アイドルアップEPI
EPI:AA; 1994-04-01~1994-11-01 |
95172-52E01-000 |
— | ||
|
5
|
5
95172-60D01-000
ホース,アイドルアップEPI
L:600>250; EPI:AA; 1994-04-01~1994-11-01 |
95172-60D01-000 |
— | ||
|
6
|
6
09401-11407-000
CLIP
EPI:AA; 1994-04-01~1994-11-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
6
|
6
09401-11415-000 CLIPEPI:AA; 1994-04-01~1994-11-01 |
09401-11415-000 |
from US $1.06 |
||
|
7
|
7
95521-70B02-000 SWITCH,A/CEPI:AA; 1994-04-01~1994-11-01 |
95521-70B02-000 |
US $68.82 |
||
|
8
|
8
95510-60D03-000
CONTROLLER,A/C
EPI:AA; 1994-04-01~1994-11-01 |
95510-60D03-000 |
— | ||
|
9
|
9
95522-70B00-000 SWITCH,ACCEL OFFEPI:AA; 1994-04-01~1994-11-01 |
95522-70B00-000 |
US $40.48 |
||
|
10
|
10
01550-06103-000
Bolt, front
EPI:AA; 1994-04-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610B-000 BoltBolt EPI:AA; 1994-04-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
10
|
10
01550-0610A-000 BoltEPI:AA; 1994-04-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
11
|
11
36930-82000-000
カバー
EPI:AA; 1994-04-01~1994-11-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
36930-82010-000 COVER,HARNESSCover, roof wire EPI:AA; 1994-04-01~1994-11-01 |
36930-82010-000 |
from US $1.51 |
||
|
12
|
12
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) EPI:AA; 1994-04-01~1994-11-01 |
09408-00012-000 |
from US $3.37 |
||
|
13
|
13
09408-00043-000 CLAMPHolder, fuse case EPI:AA; 1994-04-01~1994-11-01 |
09408-00043-000 |
US $9.60 |
||
|
14
|
14
89511-84030-000 GROMMET,FUEL HOSEEPI:AA; 1994-04-01~1994-11-01 |
89511-84030-000 |
US $4.64 |
||
