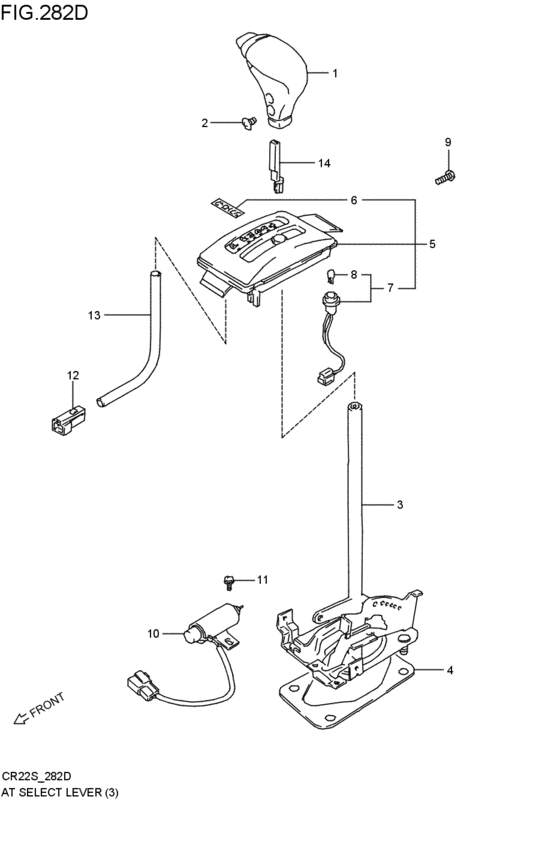

select lever (4AT; 1991-08-01~1994-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- RS-X
- type
- TYPE5
- body
- S
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28160-58E00-5ES
ノブアッシ,セレクタレバー(ブラック)
オフブラック; 4AT; 1991-08-01~1994-11-01 |
28160-58E00-5ES |
— | ||
| replacement | |||||
|
1
|
1
28160-58E11-000 KNOB ASSY,SEL LEVERオフブラック; 4AT; 1991-08-01~1994-11-01 |
28160-58E11-000 |
US $71.39 |
||
|
2
|
2
09125-05117-000 SCREW(5X6)Screw (5x6) 4AT; 1991-08-01~1994-11-01 |
09125-05117-000 |
from US $0.72 |
||
|
3
|
3
28110-58E00-000
レバーアッシ,セレクト
4AT; 1991-08-01~1994-11-01 |
28110-58E00-000 |
— | ||
|
4
|
4
28115-82302-000
SHEET,SEL LEVER HOUSING
4AT; 1991-08-01~1994-11-01 |
28115-82302-000 |
— | ||
|
5
|
5
28150-58E00-000
インジケータアッシ,セレクト
4AT; 1991-08-01~1994-11-01 |
28150-58E00-000 |
— | ||
|
6
|
6
28156-61A40-000 EMBLEM,SHIFT LOCK4AT; 1991-08-01~1994-11-01 |
28156-61A40-000 |
US $2.83 |
||
|
7
|
7
28159-62B00-000
ランプアッシ,イルミネーション
4AT; 1991-08-01~1994-11-01 |
28159-62B00-000 |
— | ||
| replacement | |||||
|
7
|
7
28159-62E00-000 LAMP ASSY,ILLUM4AT; 1991-08-01~1994-11-01 |
28159-62E00-000 |
US $12.14 |
||
|
8
|
8
09471-12077-000 BULB(12V1.7W,T10,WB121)4AT; 1991-08-01~1994-11-01 |
09471-12077-000 |
from US $1.52 |
||
|
9
|
9
02142-05103-000
Screw 5x10
4AT; 1991-08-01~1994-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0510B-000 SCREWBolt 4AT; 1991-08-01~1994-11-01 |
02142-0510B-000 |
from US $0.72 |
||
|
10
|
10
38890-62B10-000 SOLENOID,SHIFT LOCK4AT; 1991-08-01~1994-11-01 |
38890-62B10-000 |
US $253.92 |
||
|
11
|
11
09138-05005-000 SCREW(5X10)4AT; 1991-08-01~1994-11-01 |
09138-05005-000 |
from US $0.56 |
||
|
12
|
12
28117-64B60-000 COUPLER,SWITCH WIRE4AT; 1991-08-01~1994-11-01 |
28117-64B60-000 |
US $0.83 |
||
|
13
|
13
28118-64B60-000
チューブ,スイッチワイヤ
4AT; 1991-08-01~1994-11-01 |
28118-64B60-000 |
— | ||
| replacement | |||||
|
13
|
13
28118-64B61-000 TUBE,SWITCH WIRE HARNESS4AT; 1991-08-01~1994-11-01 |
28118-64B61-000 |
US $1.88 |
||
|
14
|
14
28164-62B50-000 GUIDE,DETENT RELEASE ROD4AT; 1991-08-01~1994-11-01 |
28164-62B50-000 |
from US $5.24 |
||
