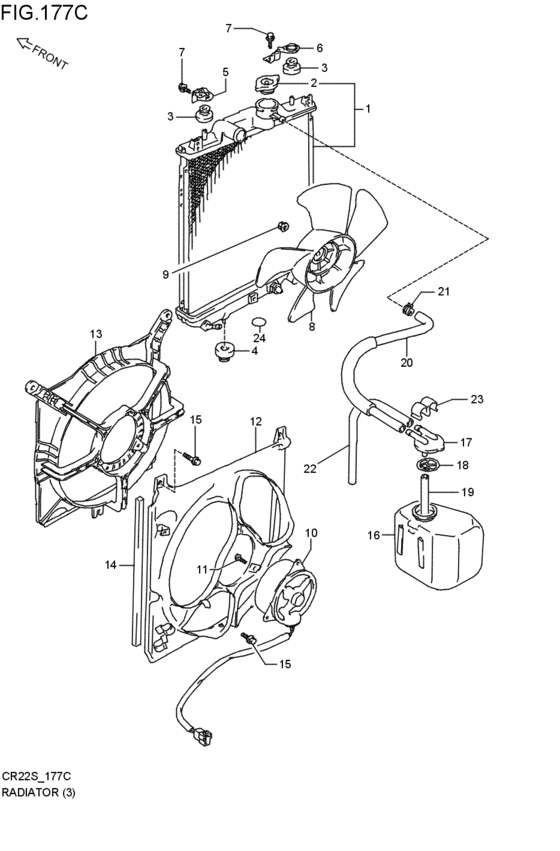

radiator (2WD:4V:CARB:3AT; 1991-08-01~1994-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- 5DR
- grade
- BP
- type
- TYPE4
- body
- S
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-60D10-000
ラジエータアッシ
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17700-60D10-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-71G20-000 RADIATOR ASSY2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17700-71G20-000 |
US $492.80 |
||
|
2
|
2
17920-66F00-000 CAP ASSY R2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17920-66F00-000 |
US $27.11 |
||
| replacement | |||||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.12WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17920-66F01-000 |
from US $24.03 |
||
|
3
|
3
17879-70B01-000 MOUNT,RDTR SUPPORT2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17879-70B01-000 |
US $16.80 |
||
|
4
|
4
17879-60D00-000 MOUNT,RDTR SUPPORT LWR2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17879-60D00-000 |
US $3.75 |
||
|
5
|
5
17862-60D01-000
ブラケット,ラジエータサポート,レフト
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17862-60D01-000 |
— | ||
|
6
|
6
17861-60D01-000
ブラケット,ラジエータサポート,ライト
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17861-60D01-000 |
— | ||
| replacement | |||||
|
6
|
6
17860-60810-000
Bracket set,radiator supprot
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17860-60810-000 |
— | ||
|
7
|
7
01550-06103-000
Bolt, front
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610B-000 BoltBolt 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
7
|
7
01550-0610A-000 Bolt2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
8
|
8
17111-62D51-000 FAN,ENG COOLING2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17111-62D51-000 |
from US $37.87 |
||
|
9
|
9
08316-10053-000
Nut
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1005A-000 NUT2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
08316-1005A-000 |
from US $0.96 |
||
|
10
|
10
17120-62D50-000 MOTOR,ENG COOLING2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17120-62D50-000 |
US $336.72 |
||
|
11
|
11
02142-05103-000
Screw 5x10
2WD:4V:CARB:3AT; 1991-08-01~1992-02-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0510B-000 SCREWBolt 2WD:4V:CARB:3AT; 1991-08-01~1992-02-01 |
02142-0510B-000 |
from US $0.72 |
||
|
12
|
12
17760-61D00-000 SHROUD,ENGINE COOLING FAN2WD:4V:CARB:3AT; 1991-08-01~1992-02-01 |
17760-61D00-000 |
US $75.07 |
||
|
13
|
13
17761-61F00-000
SHROUD,ENGINE COOLING FAN
2WD:4V:CARB:3AT; 1992-02-01~1994-11-01 |
17761-61F00-000 |
— | ||
|
14
|
14
17799-61D00-000 SEAL,FAN SHROUD2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17799-61D00-000 |
US $4.38 |
||
|
15
|
15
01550-06123-000
Bolt
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BoltBolt, clamp 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 Bolt2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
17931-70B10-000
TANK,WATER RESERVE
2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17931-70B10-000 |
— | ||
|
17
|
17
17932-60D01-000 CAP,WATER RESERVOIR TANK2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17932-60D01-000 |
US $4.01 |
||
|
18
|
18
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17933-60B00-000 |
from US $1.98 |
||
|
19
|
19
09352-70111-600 HOSE(7X11X600)L:600>115; 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
09352-70111-600 |
from US $6.84 |
||
|
20
|
20
17938-65X50-000
ホース,ラジエータツーリザーバタンク
L:385>360; 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17938-65X50-000 |
— | ||
| replacement | |||||
|
20
|
20
17938-65FM0-000
HOSE,RADIATOR TO RSVR TANK
L:385>360; 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
17938-65FM0-000 |
— | ||
|
21
|
21
09401-11407-000
CLIP
2WD:4V:CARB:3AT; 1991-08-01~1993-05-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-11415-000 CLIP2WD:4V:CARB:3AT; 1991-08-01~1993-05-01 |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
09352-70111-600 HOSE(7X11X600)L:600>220; 2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
09352-70111-600 |
from US $6.84 |
||
|
23
|
23
09408-00100-000 CLIP2WD:4V:CARB:3AT; 1991-08-01~1994-11-01 |
09408-00100-000 |
US $19.50 |
||
|
24
|
24
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 2WD:4V:CARB:3AT; 1991-11-01~1994-11-01 |
84761-50X50-000 |
from US $6.72 |
||
