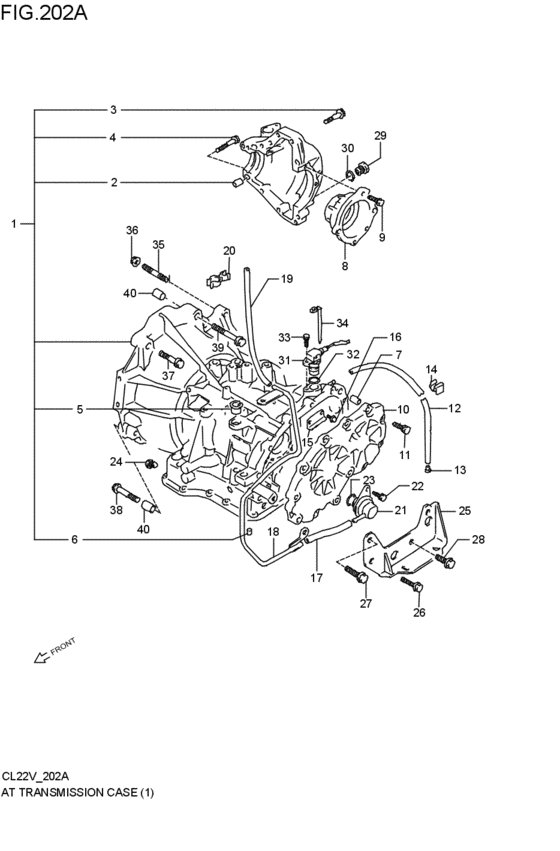

at - transmission case (2WD:3AT; 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 3AT
- grade
- DG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-61D00-000
ケースアッシ,トランスミッション
2WD:3AT; 1991-08-01~1993-05-01 |
24700-61D00-000 |
— | ||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
2WD:3AT; 1991-08-01~1993-05-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN2WD:3AT; 1991-08-01~1993-05-01 |
04211-13149-000 |
from US $1.44 |
||
|
3
|
3
01517-08456-000
Bolt 8x45 (l:45)
2WD:3AT; 1991-08-01~1993-05-01 |
01517-08456-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0845B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0845B-000 |
from US $1.06 |
||
|
3
|
3
01550-0845A-000 BoltBolt, oil pump (s) 2WD:3AT; 1991-08-01~1993-05-01 |
01550-0845A-000 |
US $5.03 |
||
|
4
|
4
01517-08556-000
Bolt 8x55 (l:55)
2WD:3AT; 1991-08-01~1993-05-01 |
01517-08556-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0855B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0855B-000 |
from US $1.58 |
||
|
4
|
4
01550-0855A-000 BoltBolt, gear holder 2WD:3AT; 1991-08-01~1993-05-01 |
01550-0855A-000 |
from US $1.22 |
||
|
5
|
5
24714-71B70-000 BUSH,MNL SHIFT SHAFT2WD:3AT; 1991-08-01~1993-05-01 |
24714-71B70-000 |
US $5.96 |
||
|
6
|
6
09202-06035-000 PIN2WD:3AT; 1991-08-01~1993-05-01 |
09202-06035-000 |
US $37.20 |
||
|
7
|
7
09206-13011-000
ノックピン,10.4X13X14
2WD:3AT; 1991-08-01~1993-05-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
7
|
7
04211-13149-000 PIN2WD:3AT; 1991-08-01~1993-05-01 |
04211-13149-000 |
from US $1.44 |
||
|
8
|
8
24721-61D00-000
ハウジング,サイドベアリング
2WD:3AT; 1991-08-01~1993-05-01 |
24721-61D00-000 |
— | ||
| replacement | |||||
|
8
|
8
24721-61D01-000
HOUSING,SIDE BEARING
2WD:3AT; 1991-08-01~1993-05-01 |
24721-61D01-000 |
— | ||
|
9
|
9
09117-08077-000
ボルト,8X25
2WD:3AT; 1991-08-01~1993-05-01 |
09117-08077-000 |
— | ||
| replacement | |||||
|
9
|
9
24883-85500-000 BOLT,HOUSING2WD:3AT; 1991-08-01~1993-05-01 |
24883-85500-000 |
US $2.50 |
||
|
10
|
10
24731-71B70-000
Cover,t/m,rear
2WD:3AT; 1991-08-01~1993-05-01 |
24731-71B70-000 |
— | ||
|
11
|
11
01937-08256-000
ボルト
2WD:3AT; 1991-08-01~1993-05-01 |
01937-08256-000 |
— | ||
| replacement | |||||
|
11
|
11
01570-0825B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01570-0825B-000 |
from US $1.28 |
||
|
12
|
12
09352-50823-600
HOSE(5X8.2X600)
L:600>380; 2WD:3AT; 1991-08-01~1993-05-01 |
09352-50823-600 |
— | ||
| replacements | |||||
|
12
|
12
44420-44AR0-000 HOSE SET,FUELL:600>380; 2WD:3AT; 1991-08-01~1993-05-01 |
44420-44AR0-000 |
US $11.95 |
||
|
12
|
12
09352-50005-600 Hose(5X8.2X600)L:600>380; 2WD:3AT; 1991-08-01~1993-05-01 |
09352-50005-600 |
from US $4.10 |
||
|
13
|
13
09250-06013-000
プラグ
2WD:3AT; 1991-08-01~1993-05-01 |
09250-06013-000 |
— | ||
| replacement | |||||
|
13
|
13
09250-06014-000
PLUG(OD:9)
2WD:3AT; 1991-08-01~1993-05-01 |
09250-06014-000 |
— | ||
|
14
|
14
24897-61D00-000 CLAMP,BREATHER HOSE2WD:3AT; 1991-08-01~1993-05-01 |
24897-61D00-000 |
US $1.51 |
||
|
15
|
15
24751-71B70-000
プレート,ブリーザ
2WD:3AT; 1991-08-01~1993-05-01 |
24751-71B70-000 |
— | ||
|
16
|
16
01517-06126-000
Bolt m6x1x12
2WD:3AT; 1991-08-01~1993-05-01 |
01517-06126-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BoltBolt, clamp 2WD:3AT; 1991-08-01~1993-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
09358-35754-300
ホース,3.5X7.5X300
L:300>70; 2WD:3AT; 1991-08-01~1993-05-01 |
09358-35754-300 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:300>70; 2WD:3AT; 1991-08-01~1993-05-01 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:300>70; 2WD:3AT; 1991-08-01~1993-05-01 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
24898-71B71-000
パイプ,バキューム
2WD:3AT; 1991-08-01~1993-05-01 |
24898-71B71-000 |
— | ||
| replacement | |||||
|
18
|
18
24898-61D1V-000
PIPE,VACUUM
2WD:3AT; 1991-08-01~1993-05-01 |
24898-61D1V-000 |
— | ||
|
19
|
19
09358-35754-600
ホース,3.5X7.5X600
L:600>350; 2WD:3AT; 1991-08-01~1993-05-01 |
09358-35754-600 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:600>350; 2WD:3AT; 1991-08-01~1993-05-01 |
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:600>350; 2WD:3AT; 1991-08-01~1993-05-01 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09408-00111-000 CLAMP2WD:3AT; 1991-08-01~1993-05-01 |
09408-00111-000 |
US $2.08 |
||
|
21
|
21
24781-71B70-000
ダイヤフラム,バキューム
2WD:3AT; 1991-08-01~1993-05-01 |
24781-71B70-000 |
— | ||
| replacement | |||||
|
21
|
21
24781-71B80-000 DIAPHRAGM,VACUUM2WD:3AT; 1991-08-01~1993-05-01 |
24781-71B80-000 |
from US $38.09 |
||
|
22
|
22
01517-06126-000
Bolt m6x1x12
2WD:3AT; 1991-08-01~1993-05-01 |
01517-06126-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BoltBolt, clamp 2WD:3AT; 1991-08-01~1993-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
26584-71B70-000
Oリング
2WD:3AT; 1991-08-01~1993-05-01 |
26584-71B70-000 |
— | ||
| replacement | |||||
|
23
|
23
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe 2WD:3AT; 1991-08-01~1993-05-01 |
09280-16005-000 |
from US $2.27 |
||
|
24
|
24
24822-71B71-000
プラグ,ブースタ
2WD:3AT; 1991-08-01~1993-05-01 |
24822-71B71-000 |
— | ||
| replacements | |||||
|
24
|
24
24822-58E00-000
PLUG,BOOSTER
2WD:3AT; 1991-08-01~1993-05-01 |
24822-58E00-000 |
— | ||
|
24
|
24
24822-58E01-000 Plug,booster2WD:3AT; 1991-08-01~1993-05-01 |
24822-58E01-000 |
US $5 |
||
|
25
|
25
11870-61D00-000
ブラケット,トランスミッションマウンチング
2WD:3AT; 1991-08-01~1993-05-01 |
11870-61D00-000 |
— | ||
| replacement | |||||
|
25
|
25
11871-61D11-000
Bracket,t/m mtg
2WD:3AT; 1991-08-01~1993-05-01 |
11871-61D11-000 |
— | ||
|
26
|
26
01517-08356-000
Bolt, front
2WD:3AT; 1991-08-01~1993-05-01 |
01517-08356-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0835B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0835B-000 |
from US $1.28 |
||
|
26
|
26
01550-0835A-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0835A-000 |
from US $1.06 |
||
|
27
|
27
01537-10356-000
ボルト
2WD:3AT; 1991-08-01~1993-05-01 |
01537-10356-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1035A-000 BoltBolt, fr fork upper 2WD:3AT; 1991-08-01~1993-05-01 |
01550-1035A-000 |
from US $1.62 |
||
|
28
|
28
01517-10206-000
ボルト
2WD:3AT; 1991-08-01~1993-05-01 |
01517-10206-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1020A-000 BoltBolt, bal sprocket 2WD:3AT; 1991-08-01~1993-05-01 |
01550-1020A-000 |
from US $0.96 |
||
|
29
|
29
24823-71B70-000
PLUG,DRAIN
2WD:3AT; 1991-08-01~1993-05-01 |
24823-71B70-000 |
— | ||
|
30
|
30
24824-71B70-000
ガスケット,ドレーンプラグ
2WD:3AT; 1991-08-01~1993-05-01 |
24824-71B70-000 |
— | ||
| replacement | |||||
|
30
|
30
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) 2WD:3AT; 1991-08-01~1993-05-01 |
09160-18018-000 |
from US $0.32 |
||
|
31
|
31
26140-61D00-000 SENSOR ASSY,SPEED2WD:3AT; 1991-08-01~1993-05-01 |
26140-61D00-000 |
US $130.27 |
||
|
32
|
32
09280-20007-000
Oリング,19.8X1.9
2WD:3AT; 1991-08-01~1993-05-01 |
09280-20007-000 |
— | ||
|
33
|
33
01517-06166-000
Bolt
2WD:3AT; 1991-08-01~1993-05-01 |
01517-06166-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-0616B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-0616B-000 |
from US $0.76 |
||
|
34
|
34
09407-14407-000 CLAMP(L:145)Band 2WD:3AT; 1991-08-01~1993-05-01 |
09407-14407-000 |
from US $2.08 |
||
|
35
|
35
01421-10353-000
Stud 10x1.25x55
2WD:3AT; 1991-08-01~1993-05-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
35
|
35
01421-1035A-000 BOLT,STUD2WD:3AT; 1991-08-01~1993-05-01 |
01421-1035A-000 |
from US $4.13 |
||
|
35
|
35
01421-1035B-000 BOLT,STUD2WD:3AT; 1991-08-01~1993-05-01 |
01421-1035B-000 |
US $17.30 |
||
|
36
|
36
08316-16103-000 Nut2WD:3AT; 1991-08-01~1993-05-01 |
08316-16103-000 |
from US $1.30 |
||
| replacement | |||||
|
36
|
36
08316-1010B-000 NUT2WD:3AT; 1991-08-01~1993-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
37
|
37
01537-10453-000 ボルト2WD:3AT; 1991-08-01~1993-05-01 |
01537-10453-000 |
US $2.05 |
||
| replacement | |||||
|
37
|
37
01550-1045B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-1045B-000 |
from US $1.28 |
||
|
38
|
38
01517-10553-000
ボルト
2WD:3AT; 1991-08-01~1993-05-01 |
01517-10553-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-1055B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-1055B-000 |
from US $1.60 |
||
|
38
|
38
01550-10557-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-10557-000 |
from US $1.37 |
||
|
39
|
39
01537-10603-000
New Genuine Part
2WD:3AT; 1991-08-01~1993-05-01 |
01537-10603-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-1060B-000 Bolt2WD:3AT; 1991-08-01~1993-05-01 |
01550-1060B-000 |
US $1.60 |
||
|
40
|
40
09206-13011-000
ノックピン,10.4X13X14
2WD:3AT; 1991-08-01~1993-05-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
40
|
40
04211-13149-000 PIN2WD:3AT; 1991-08-01~1993-05-01 |
04211-13149-000 |
from US $1.44 |
||
