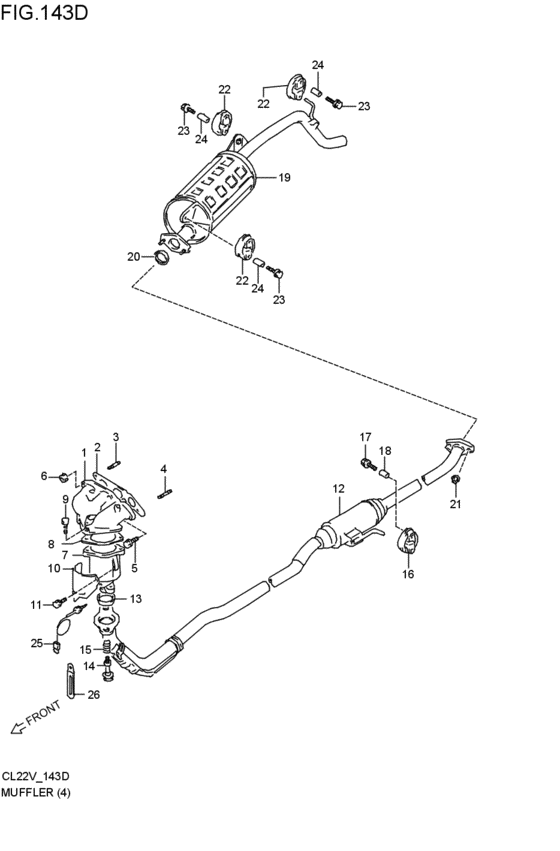

muffler (4V:CARB:2WD; 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 3AT
- grade
- DG
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-63D00-000
マニホールド,エキゾースト
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14111-63D00-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-63D10-000
MANIFOLD,EXH
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14111-63D10-000 |
— | ||
|
2
|
2
14141-70D10-000
ガスケット,エキゾーストマニホールド
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14141-70D10-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-63F00-000 GASKET,EXH MANF4V:CARB:2WD; 1991-08-01~1993-05-01 |
14141-63F00-000 |
US $43.20 |
||
|
3
|
3
14118-81400-000
スタッドボルト
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14118-81400-000 |
— | ||
| replacement | |||||
|
3
|
3
14119-81402-000 STUD BOLT4V:CARB:2WD; 1991-08-01~1993-05-01 |
14119-81402-000 |
US $2.72 |
||
|
4
|
4
14119-81400-000
スタッドボルト
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14119-81400-000 |
— | ||
| replacement | |||||
|
4
|
4
14119-81402-000 STUD BOLT4V:CARB:2WD; 1991-08-01~1993-05-01 |
14119-81402-000 |
US $2.72 |
||
|
5
|
5
01517-08253-000
ボルト
4V:CARB:2WD; 1991-08-01~1993-05-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0825A-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0825A-000 |
from US $0.47 |
||
|
5
|
5
01550-0825B-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0825B-000 |
from US $1.06 |
||
|
6
|
6
08316-16083-000 NutNut 4V:CARB:2WD; 1991-08-01~1993-05-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT4V:CARB:2WD; 1991-08-01~1993-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
14100-62811-000
ケースセット,キャタリスト
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14100-62811-000 |
— | ||
| replacements | |||||
|
7
|
7
11641-70B02-000
BRACKET,ENG FR MTG
4V:CARB:2WD; 1991-08-01~1993-05-01 |
11641-70B02-000 |
— | ||
|
7
|
7
11660-70B02-000
STIFFENER,FR MTG BRKT
4V:CARB:2WD; 1991-08-01~1993-05-01 |
11660-70B02-000 |
— | ||
|
7
|
7
14100-62831-000
CASE SET,CATALYST
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14100-62831-000 |
— | ||
|
7
|
7
14810-840V0-000 FUSE,THERMO CATALYST4V:CARB:2WD; 1991-08-01~1993-05-01 |
14810-840V0-000 |
US $122.91 |
||
|
8
|
8
14181-78000-000
ガスケット,キャタリストケース
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14181-78000-000 |
— | ||
| replacement | |||||
|
8
|
8
14181-62F00-000 GASKET,CATALYST CASE4V:CARB:2WD; 1991-08-01~1993-05-01 |
14181-62F00-000 |
US $8.80 |
||
|
9
|
9
09103-10020-000 BOLT(10X25)4V:CARB:2WD; 1991-08-01~1993-05-01 |
09103-10020-000 |
US $6.88 |
||
|
10
|
10
14171-70B01-000
カバー,キャタリストケース
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14171-70B01-000 |
— | ||
| replacement | |||||
|
10
|
10
14171-70B0V-000
COVER,CATALYST CASE
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14171-70B0V-000 |
— | ||
|
11
|
11
01517-06103-000
BOLT 6X10
4V:CARB:2WD; 1991-08-01~1993-05-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610A-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0610A-000 |
from US $0.96 |
||
|
11
|
11
01550-0610B-000 BoltBolt 4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0610B-000 |
from US $0.96 |
||
|
12
|
12
14190-70B04-000 PIPE,EXHAUST4V:CARB:2WD; 1991-08-01~1993-05-01 |
14190-70B04-000 |
US $294.40 |
||
|
13
|
13
14183-78501-000
リング,エキゾーストパイプ
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14183-78501-000 |
— | ||
| replacement | |||||
|
13
|
13
14183-75FC0-000 RING,SEAL EXH PIPE4V:CARB:2WD; 1991-08-01~1993-05-01 |
14183-75FC0-000 |
from US $14.09 |
||
|
14
|
14
09119-10056-000
ボルト,10X53.5
4V:CARB:2WD; 1991-08-01~1993-05-01 |
09119-10056-000 |
— | ||
| replacement | |||||
|
14
|
14
14493-76G01-000 BOLT,EXH PIPE4V:CARB:2WD; 1991-08-01~1993-05-01 |
14493-76G01-000 |
from US $3.04 |
||
|
15
|
15
14492-82001-000 SPRING,EXH PIPECHKK; 4V:CARB:2WD; 1991-08-01~1993-05-01 |
14492-82001-000 |
from US $1.28 |
||
|
16
|
16
14281-78010-000
Mounting, muffler
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-60G01-000 MOUNTING,MUF4V:CARB:2WD; 1991-08-01~1993-05-01 |
14281-60G01-000 |
from US $5.96 |
||
|
17
|
17
01517-08353-000
Bolt
4V:CARB:2WD; 1991-08-01~1993-05-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0835B-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0835B-000 |
from US $1.28 |
||
|
17
|
17
01550-0835A-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0835A-000 |
from US $1.06 |
||
|
18
|
18
09180-08057-000
Spacer
4V:CARB:2WD; 1991-08-01~1993-05-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-08227-000 SPACER(8.2X12.5X23.5)4V:CARB:2WD; 1991-08-01~1993-05-01 |
09180-08227-000 |
from US $1.04 |
||
|
19
|
19
14300-62D00-000
マフラ
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14300-62D00-000 |
— | ||
| replacement | |||||
|
19
|
19
14300-71GP0-000 MUFFLER4V:CARB:2WD; 1991-08-01~1993-05-01 |
14300-71GP0-000 |
US $241.04 |
||
|
20
|
20
14182-60B00-000
GASKET,EXH PIPE
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
20
|
20
14182-60B01-000 Gasket,exh Pipe4V:CARB:2WD; 1991-08-01~1993-05-01 |
14182-60B01-000 |
from US $3.34 |
||
|
21
|
21
08316-16103-000 Nut4V:CARB:2WD; 1991-08-01~1993-05-01 |
08316-16103-000 |
from US $1.30 |
||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUT4V:CARB:2WD; 1991-08-01~1993-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
14281-78010-000
Mounting, muffler
4V:CARB:2WD; 1991-08-01~1993-05-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
22
|
22
14281-60G01-000 MOUNTING,MUF4V:CARB:2WD; 1991-08-01~1993-05-01 |
14281-60G01-000 |
from US $5.96 |
||
|
23
|
23
01517-08353-000
Bolt
4V:CARB:2WD; 1991-08-01~1993-05-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0835B-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0835B-000 |
from US $1.28 |
||
|
23
|
23
01550-0835A-000 Bolt4V:CARB:2WD; 1991-08-01~1993-05-01 |
01550-0835A-000 |
from US $1.06 |
||
|
24
|
24
09180-08057-000
Spacer
4V:CARB:2WD; 1991-08-01~1993-05-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
24
|
24
09180-08227-000 SPACER(8.2X12.5X23.5)4V:CARB:2WD; 1991-08-01~1993-05-01 |
09180-08227-000 |
from US $1.04 |
||
|
25
|
25
14810-84000-000
Thermo fuse,ctlst
NGK; 4V:CARB:2WD; 1991-08-01~1993-05-01 |
14810-84000-000 |
— | ||
| replacement | |||||
|
25
|
25
14810-8400V-000
THERMO FUSE,CTLST
NGK; 4V:CARB:2WD; 1991-08-01~1993-05-01 |
14810-8400V-000 |
— | ||
|
26
|
26
09404-08403-000
Clamp
4V:CARB:2WD; 1991-08-01~1993-05-01 |
09404-08403-000 |
— | ||
| replacement | |||||
|
26
|
26
09404-08420-000 CLAMP(L:120 T:1.0)4V:CARB:2WD; 1991-08-01~1993-05-01 |
09404-08420-000 |
from US $1.22 |
||
