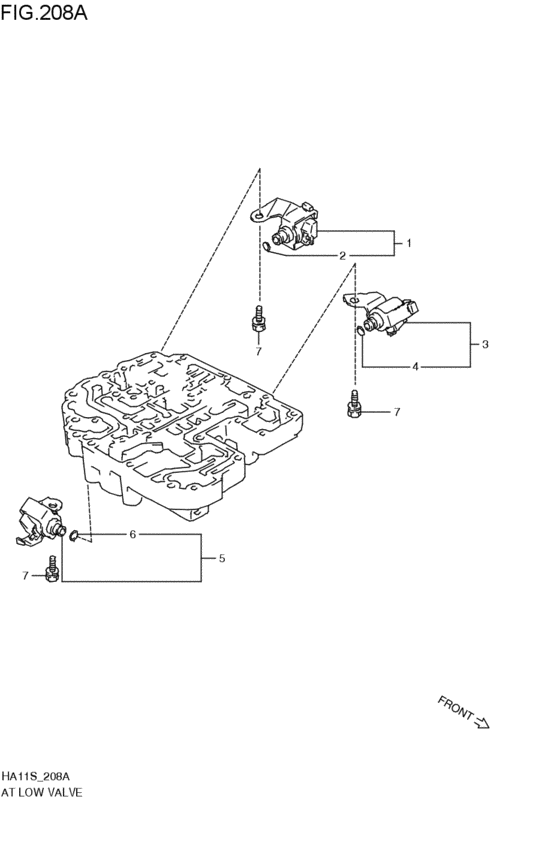

at - lower valve body (AISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994 - 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- AI
- number of the gears
- 3AT
- body
- S
- air bag
- AB-N
- abs
- ABS-N
- power steering
- PWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24753-62D00-000 SOLENOID ASSY,DIRECT CLUTCHAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24753-62D00-000 |
US $233.60 |
||
|
2
|
2
24786-82300-000 O-RING,SOLENOID T/MAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24786-82300-000 |
US $1.92 |
||
|
3
|
3
24752-62D00-000
SOLENOID ASSY,1-2 SHIFT
AISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24752-62D00-000 |
— | ||
|
4
|
4
24786-82300-000 O-RING,SOLENOID T/MAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24786-82300-000 |
US $1.92 |
||
|
5
|
5
24754-62D01-000 SOLENOID ASSY,CUTBACKAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24754-62D01-000 |
US $126.96 |
||
|
6
|
6
24786-82300-000 O-RING,SOLENOID T/MAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
24786-82300-000 |
US $1.92 |
||
|
7
|
7
26599-85500-000 BOLT,SOLENOIDAISIN; 3AT:TURBO:2V:2WD; 1994-10-01~1997-03-01 |
26599-85500-000 |
US $1.77 |
