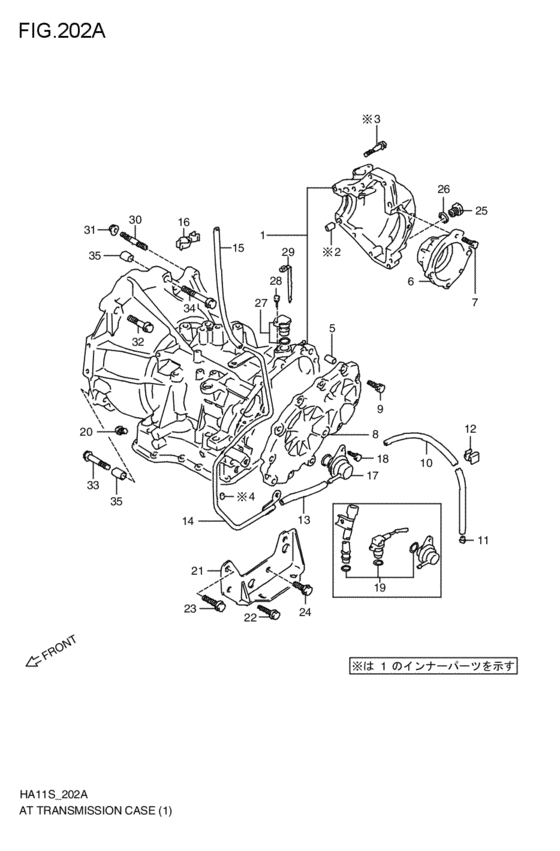

at - transmission case (JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994 - 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- AI
- number of the gears
- 3AT
- body
- S
- air bag
- AB-N
- abs
- ABS-N
- power steering
- PWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-61D10-000
ケースアッシ,トランスミッション
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1995-10-01 |
24700-61D10-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-61D11-000
CASE ASSY,T/M
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1995-10-01 |
24700-61D11-000 |
— | ||
|
1
|
1
24700-61D11-000
CASE ASSY,T/M
JATCO,SUZUKI; 3AT:2WD; 1995-11-01~1996-02-01 |
24700-61D11-000 |
— | ||
|
1
|
1
24700-61D20-000
ケースアッシ,トランスミッション
JATCO,SUZUKI; 3AT:2WD; 1996-02-01~1997-03-01 |
24700-61D20-000 |
— | ||
| replacements | |||||
|
1
|
1
09247-14044-000 DRAIN PLUG (M14x1.5)JATCO,SUZUKI; 3AT:2WD; 1996-02-01~1997-03-01 |
09247-14044-000 |
from US $1.67 |
||
|
1
|
1
24824-71B71-000 GASKET,18X24X2JATCO,SUZUKI; 3AT:2WD; 1996-02-01~1997-03-01 |
24824-71B71-000 |
from US $1.10 |
||
|
1
|
1
09247-14027-000 PLUG(14X11.5)Plug, oil drain JATCO,SUZUKI; 3AT:2WD; 1996-02-01~1997-03-01 |
09247-14027-000 |
from US $1.89 |
||
|
2
|
2
04211-13149-000 PINJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
04211-13149-000 |
from US $1.44 |
||
|
3
|
3
01550-08453-000
Bolt,cylinder h
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0845B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0845B-000 |
from US $1.06 |
||
|
3
|
3
01550-0845A-000 BoltBolt, oil pump (s) JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0845A-000 |
US $5.03 |
||
|
4
|
4
09202-06035-000 PINJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09202-06035-000 |
US $37.20 |
||
|
5
|
5
04211-13149-000 PINJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
04211-13149-000 |
from US $1.44 |
||
|
6
|
6
24721-61D00-000
ハウジング,サイドベアリング
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24721-61D00-000 |
— | ||
| replacement | |||||
|
6
|
6
24721-61D01-000
HOUSING,SIDE BEARING
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24721-61D01-000 |
— | ||
|
7
|
7
24883-85500-000 BOLT,HOUSINGJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24883-85500-000 |
US $2.50 |
||
|
8
|
8
24731-61D11-000
COVER,T/M RR
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24731-61D11-000 |
— | ||
|
9
|
9
01550-08253-000
Bolt, rear
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0825B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0825B-000 |
from US $1.06 |
||
|
9
|
9
01550-0825A-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0825A-000 |
from US $0.47 |
||
|
10
|
10
09352-50823-600
HOSE(5X8.2X600)
L:600>160,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09352-50823-600 |
— | ||
| replacements | |||||
|
10
|
10
44420-44AR0-000 HOSE SET,FUELL:600>160,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
44420-44AR0-000 |
US $11.95 |
||
|
10
|
10
09352-50005-600 Hose(5X8.2X600)L:600>160,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09352-50005-600 |
from US $4.10 |
||
|
11
|
11
09250-06014-000
PLUG(OD:9)
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09250-06014-000 |
— | ||
|
12
|
12
09403-08311-000 CLAMPJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09403-08311-000 |
from US $1.04 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600>70,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600>70,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600>70,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
24898-61D10-000
パイプ,バキューム
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24898-61D10-000 |
— | ||
| replacement | |||||
|
14
|
14
24898-61D1V-000
PIPE,VACUUM
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24898-61D1V-000 |
— | ||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600>350,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600>350,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600>350,JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09408-00111-000 CLAMPJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09408-00111-000 |
US $2.08 |
||
|
17
|
17
24781-71B70-000
ダイヤフラム,バキューム
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24781-71B70-000 |
— | ||
| replacement | |||||
|
17
|
17
24781-71B80-000 DIAPHRAGM,VACUUMJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24781-71B80-000 |
from US $38.09 |
||
|
18
|
18
01550-06123-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BoltBolt, clamp JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
26584-71BT0-000 O-RING SETJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
26584-71BT0-000 |
US $11.67 |
||
|
20
|
20
24822-58E00-000
PLUG,BOOSTER
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24822-58E00-000 |
— | ||
| replacement | |||||
|
20
|
20
24822-58E01-000 Plug,boosterJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
24822-58E01-000 |
US $5 |
||
|
21
|
21
11871-61D11-000
Bracket,t/m mtg
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
11871-61D11-000 |
— | ||
|
22
|
22
01550-08353-000
Bolt, rear
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0835B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0835B-000 |
from US $1.28 |
||
|
22
|
22
01550-0835A-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
23
|
23
01550-10353-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1035A-000 BoltBolt, fr fork upper JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1035A-000 |
from US $1.62 |
||
|
24
|
24
01550-10203-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1020A-000 BoltBolt, bal sprocket JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
25
|
25
09247-14027-000 PLUG(14X11.5)Plug, oil drain JATCO,SUZUKI; 3AT:2WD; 1996-11-01~1997-03-01 |
09247-14027-000 |
from US $1.89 |
||
|
25
|
25
09247-18003-000 PLUGJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1996-11-01 |
09247-18003-000 |
from US $1.17 |
||
|
26
|
26
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1996-11-01 |
09160-18018-000 |
from US $0.32 |
||
|
26
|
26
24824-71B71-000 GASKET,18X24X2JATCO,SUZUKI; 3AT:2WD; 1996-11-01~1997-03-01 |
24824-71B71-000 |
from US $1.10 |
||
|
27
|
27
26140-61D20-000
Cap assy,sensor hole
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
26140-61D20-000 |
— | ||
|
28
|
28
01550-06163-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0616B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
28
|
28
01550-0616A-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
29
|
29
09407-14407-000 CLAMP(L:145)Band JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
09407-14407-000 |
from US $2.08 |
||
|
30
|
30
01421-10353-000
Stud 10x1.25x55
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
30
|
30
01421-1035A-000 BOLT,STUDJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01421-1035A-000 |
from US $4.13 |
||
|
30
|
30
01421-1035B-000 BOLT,STUDJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01421-1035B-000 |
US $17.30 |
||
|
31
|
31
08316-10103-000
Nut
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
31
|
31
08316-1010B-000 NUTJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
32
|
32
01550-10453-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-10453-000 |
— | ||
| replacement | |||||
|
32
|
32
01550-1045B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1045B-000 |
from US $1.28 |
||
|
33
|
33
01550-10553-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-1055B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1055B-000 |
from US $1.60 |
||
|
34
|
34
01550-10603-000
Bolt
JATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-1060B-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1060B-000 |
US $1.60 |
||
|
34
|
34
01550-1060A-000 BoltJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
01550-1060A-000 |
from US $1.60 |
||
|
35
|
35
04211-13149-000 PINJATCO,SUZUKI; 3AT:2WD; 1994-10-01~1997-03-01 |
04211-13149-000 |
from US $1.44 |
||
