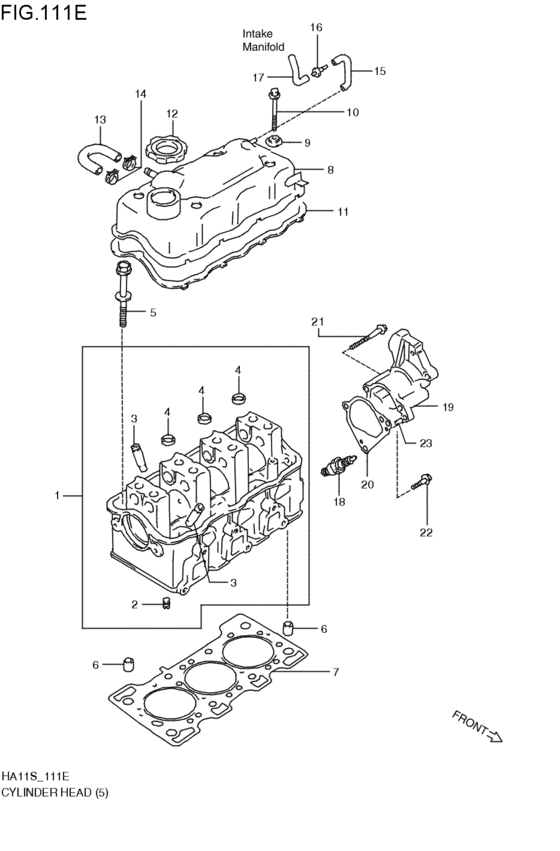

Cylinder head (2V:EPI; 1994-10-01~1997-03-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- AV
- number of the gears
- 5MT
- body
- S
- air bag
- AB-N
- abs
- ABS-N
- power steering
- PWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-70B02-000
ヘッド,シリンダ
2V:EPI; 1994-10-01~1997-03-01 |
11110-70B02-000 |
— | ||
| replacement | |||||
|
1
|
1
11110-70B03-000
Head,cylinder
2V:EPI; 1994-10-01~1997-03-01 |
11110-70B03-000 |
— | ||
|
2
|
2
11112-73001-000
PLUG OIL VENTURI
2V:EPI; 1994-10-01~1997-03-01 |
11112-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI2V:EPI; 1994-10-01~1997-03-01 |
11112-73010-000 |
from US $1.60 |
||
|
3
|
3
11115-62D00-001 GUIDE,VALVE2V:EPI; 1994-10-01~1997-03-01 |
11115-62D00-001 |
US $47.20 |
||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil 2V:EPI; 1994-10-01~1997-03-01 |
09241-20006-000 |
from US $1.60 |
||
|
5
|
5
09116-10116-000 BOLT(10X87)2V:EPI; 1994-10-01~1997-03-01 |
09116-10116-000 |
from US $2.41 |
||
|
6
|
6
04211-13189-000 PIN2V:EPI; 1994-10-01~1997-03-01 |
04211-13189-000 |
from US $1.22 |
||
|
7
|
7
11141-81401-000 GASKET,CYL HEAD2V:EPI; 1994-10-01~1997-03-01 |
11141-81401-000 |
from US $66.42 |
||
|
8
|
8
11170-60D20-000
カバー,シリンダヘッド
2V:EPI; 1994-10-01~1997-03-01 |
11170-60D20-000 |
— | ||
|
9
|
9
11180-82010-000 WASHER,CYL HEAD COVER SEAL2V:EPI; 1994-10-01~1997-03-01 |
11180-82010-000 |
from US $4.07 |
||
|
10
|
10
09103-06134-000
Bolt,6x65
2V:EPI; 1994-10-01~1997-03-01 |
09103-06134-000 |
— | ||
| replacement | |||||
|
10
|
10
09113-06002-000 BOLT(6X65)2V:EPI; 1994-10-01~1997-03-01 |
09113-06002-000 |
US $1.44 |
||
|
11
|
11
11189-62C00-000 GASKET,CYL HEAD COVER2V:EPI; 1994-10-01~1997-03-01 |
11189-62C00-000 |
US $17.61 |
||
| replacement | |||||
|
11
|
11
11189-78101-000 Gasket, Cylinder Head Cover2V:EPI; 1994-10-01~1997-03-01 |
11189-78101-000 |
US $28.80 |
||
|
12
|
12
16920-50A01-000 Cap,oil filler2V:EPI; 1994-10-01~1997-03-01 |
16920-50A01-000 |
from US $8.08 |
||
|
13
|
13
11191-51E01-000
ホース,ブリーザ
2V:EPI; 1994-10-01~1997-03-01 |
11191-51E01-000 |
— | ||
|
14
|
14
09401-18404-000 CLIP2V:EPI; 1994-10-01~1997-03-01 |
09401-18404-000 |
from US $1.26 |
||
|
15
|
15
11192-64F00-000
ホース,PCVインレット
2V:EPI; 1994-10-01~1997-03-01 |
11192-64F00-000 |
— | ||
|
16
|
16
18118-72B01-000 VALVE,PCV2V:EPI; 1994-10-01~1997-03-01 |
18118-72B01-000 |
US $81.60 |
||
|
17
|
17
11193-64F00-000
ホース,PCVアウトレット
2V:EPI; 1994-10-01~1997-03-01 |
11193-64F00-000 |
— | ||
| replacement | |||||
|
17
|
17
18582-78GA0-000 HOSE,AIR ASSIST VALVE2V:EPI; 1994-10-01~1997-03-01 |
18582-78GA0-000 |
from US $5.33 |
||
|
18
|
18
09482-00433-000
PLUG,SPARK(NGK BPR5EY-11)
NGK; 2V:EPI; 1994-10-01~1997-03-01 |
09482-00433-000 |
— | ||
|
18
|
18
09482-00468-000 PLUG,SPARK(W16EPR-U)DENSO; 2V:EPI; 1994-10-01~1997-03-01 |
09482-00468-000 |
US $7.92 |
||
|
19
|
19
11161-64F00-000
ケース,ディストリビュータ
2V:EPI; 1994-10-01~1997-03-01 |
11161-64F00-000 |
— | ||
|
20
|
20
11169-70D00-000
ガスケット,ケース
2V:EPI; 1994-10-01~1997-03-01 |
11169-70D00-000 |
— | ||
| replacement | |||||
|
20
|
20
11169-70D01-000 GASKET,DISTRIBUTOR CASE2V:EPI; 1994-10-01~1997-03-01 |
11169-70D01-000 |
US $2.56 |
||
|
21
|
21
09103-08293-000 BOLT(8X70)2V:EPI; 1994-10-01~1997-03-01 |
09103-08293-000 |
from US $5.08 |
||
|
22
|
22
01550-08253-000
Bolt, rear
2V:EPI; 1994-10-01~1997-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0825B-000 Bolt2V:EPI; 1994-10-01~1997-03-01 |
01550-0825B-000 |
from US $1.06 |
||
|
22
|
22
01550-0825A-000 Bolt2V:EPI; 1994-10-01~1997-03-01 |
01550-0825A-000 |
from US $0.47 |
||
|
23
|
23
04221-06129-000 PIN2V:EPI; 1994-10-01~1997-03-01 |
04221-06129-000 |
from US $0.96 |
||
