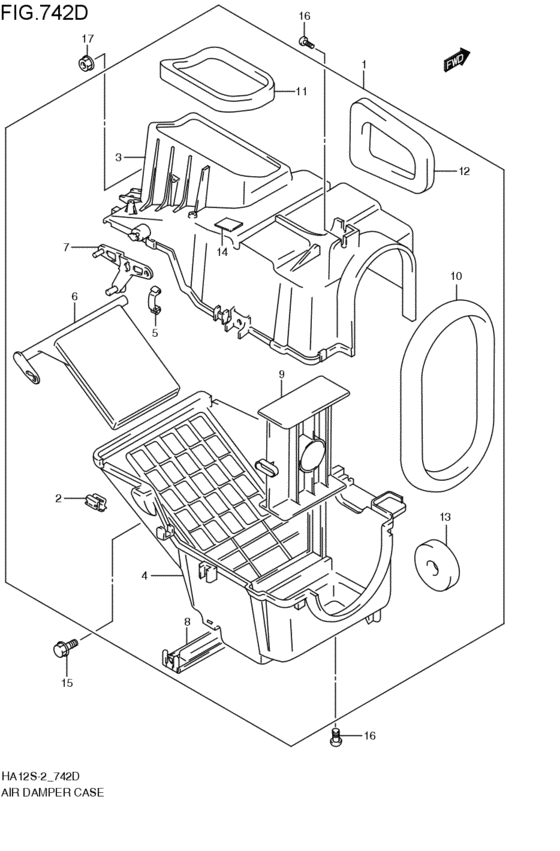

エアダンパケース (GA; 1999-10-01~2000-06-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- EPI
- drive
- 2WD
- transmission
- 4MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- HA12V
- air bag
- 2AB
- abs
- ABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-76G00-000
ボックス,エア,インレット
GA; 1999-10-01~2000-06-01 |
74200-76G00-000 |
— | ||
| replacement | |||||
|
1
|
1
74200-76G20-000
BOX ASSY,AIR INLET
GA; 1999-10-01~2000-06-01 |
74200-76G20-000 |
— | ||
|
2
|
2
74151-50F00-000 CABLEGA; 1999-10-01~2000-06-01 |
74151-50F00-000 |
from US $2.21 |
||
|
3
|
3
95421-76G00-000
Case, evapo upper
GA; 1999-10-01~2000-06-01 |
95421-76G00-000 |
— | ||
| replacements | |||||
|
3
|
3
95421-76G01-000 CASE,EVAP,UPPERGA; 1999-10-01~2000-06-01 |
95421-76G01-000 |
US $59.62 |
||
|
3
|
3
95462-76G00-000 COVER,EVAP CASEGA; 1999-10-01~2000-06-01 |
95462-76G00-000 |
US $4.01 |
||
|
4
|
4
95422-81A00-000 CASE,EVAP,LOWERGA; 1999-10-01~2000-06-01 |
95422-81A00-000 |
US $15.36 |
||
|
5
|
5
74316-85500-000 CLAMPClamp, case GA; 1999-10-01~2000-06-01 |
74316-85500-000 |
from US $0.95 |
||
|
6
|
6
74270-81A00-000
Door set, air inlet
GA; 1999-10-01~2000-06-01 |
74270-81A00-000 |
— | ||
| replacement | |||||
|
6
|
6
74270-81A01-000 DOOR SET,AIR INLETGA; 1999-10-01~2000-06-01 |
74270-81A01-000 |
US $26.13 |
||
|
7
|
7
74281-81A00-000 LINK,DRGA; 1999-10-01~2000-06-01 |
74281-81A00-000 |
US $5.89 |
||
|
8
|
8
95423-81A01-000 COVER,FILTERGA; 1999-10-01~2000-06-01 |
95423-81A01-000 |
from US $4.04 |
||
|
9
|
9
95428-81A00-000 BOARD,AIR RESISTORGA; 1999-10-01~2000-06-01 |
95428-81A00-000 |
US $13.80 |
||
|
10
|
10
95461-70B01-000 PACKING,HEATERPacking, unit outlet GA; 1999-10-01~2000-06-01 |
95461-70B01-000 |
US $4.80 |
||
|
11
|
11
95461-76G00-000 PACKING,COOLING UNITGA; 1999-10-01~2000-06-01 |
95461-76G00-000 |
US $6.59 |
||
|
12
|
12
95465-78F10-000 PACKING,DASHGA; 1999-10-01~2000-06-01 |
95465-78F10-000 |
US $9.60 |
||
|
13
|
13
95466-81A00-000 PACKING,DRAINGA; 1999-10-01~2000-06-01 |
95466-81A00-000 |
US $2.56 |
||
|
14
|
14
95462-76G00-000 COVER,EVAP CASEGA; 1999-10-01~2000-06-01 |
95462-76G00-000 |
US $4.01 |
||
|
15
|
15
09116-06167-000 BOLT(6X20)Bolt (6x20) GA; 1999-10-01~2000-06-01 |
09116-06167-000 |
from US $1.37 |
||
|
16
|
16
03541-05163-000
Screw
GA; 1999-10-01~2000-06-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWGA; 1999-10-01~2000-06-01 |
03541-0516A-000 |
from US $0.76 |
||
|
17
|
17
09159-06081-000 NUTGA; 1999-10-01~2000-06-01 |
09159-06081-000 |
from US $1.31 |
||
