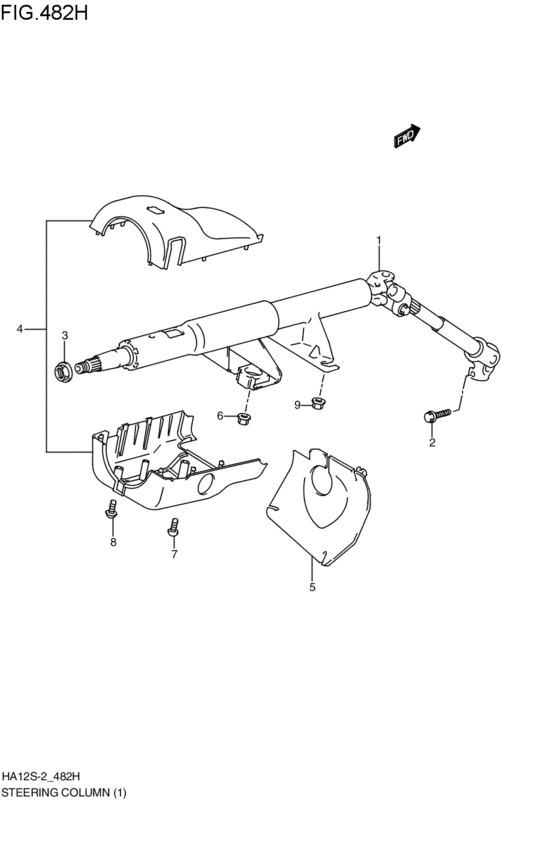

steering column (パワステミセッテイ; GA; 1999-10-01~2001-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- EPI
- drive
- 2WD
- transmission
- 4MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- HA12V
- air bag
- 2AB
- abs
- ABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-76G00-000
COLUMN ASSY,STRG
GA; 1999-10-01~2001-01-01 |
48200-76G00-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30)GA; 1999-10-01~2001-01-01 |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-10123-000
Nut
GA; 1999-10-01~2001-01-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1012A-000 NUTGA; 1999-10-01~2001-01-01 |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-76G10-T01
カバーアッシ,ステアリングコラム(グレー)
グレ-; GA; 1999-10-01~2001-01-01 |
48400-76G10-T01 |
— | ||
| replacement | |||||
|
4
|
4
48400-76G11-T01
COVER ASSY,STRG COLUMN
グレ-; GA; 1999-10-01~2001-01-01 |
48400-76G11-T01 |
— | ||
|
5
|
5
48481-76G00-000 COVER,STRG JOINTGA; 1999-10-01~2001-01-01 |
48481-76G00-000 |
US $15.42 |
||
|
6
|
6
09159-08069-000
Nut
GA; 1999-10-01~2001-01-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-08135-000 NUTGA; 1999-10-01~2001-01-01 |
09159-08135-000 |
from US $0.74 |
||
|
7
|
7
09136-05030-000 SCREW(5X12)GA; 1999-10-01~2001-01-01 |
09136-05030-000 |
from US $0.52 |
||
|
8
|
8
03211-05123-000
Screw
GA; 1999-10-01~2001-01-01 |
03211-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0512A-000 SCREWGA; 1999-10-01~2001-01-01 |
03211-0512A-000 |
from US $0.45 |
||
|
9
|
9
08316-10083-000
Nut
GA; 1999-10-01~2001-01-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUTGA; 1999-10-01~2001-01-01 |
08316-1008B-000 |
from US $0.76 |
||
