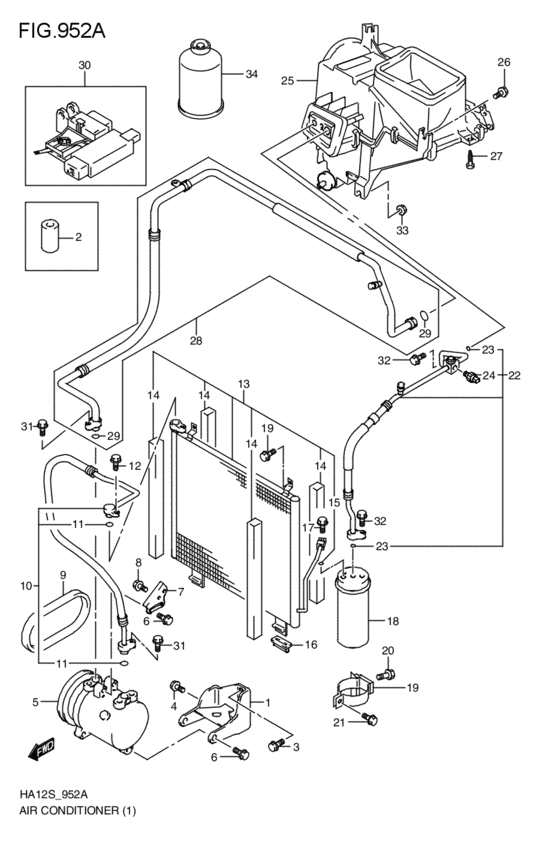

air-conditioner (GT,GA; 1998-08-01~1999-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- HA12V
- air bag
- AB-N
- abs
- ABS-N
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95110-76G00-000
ブラケット,コンプレッサ
GT,GA; 1998-08-01~1999-11-01 |
95110-76G00-000 |
— | ||
|
2
|
2
09250-04003-000 PLUG(OD:8)Plug (od:8) GT,GA; 1998-08-01~1999-11-01 |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
2
|
2
07130-0510B-000 BoltBolt, sensor GT,GA; 1998-08-01~1999-11-01 |
07130-0510B-000 |
from US $0.96 |
||
|
3
|
3
01550-08203-000
Bolt
GT,GA; 1998-08-01~1999-11-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0820B-000 BoltGT,GA; 1998-08-01~1999-11-01 |
01550-0820B-000 |
from US $0.91 |
||
|
3
|
3
01550-0820A-000 BoltBolt, funnel bracket GT,GA; 1998-08-01~1999-11-01 |
01550-0820A-000 |
from US $1.12 |
||
|
4
|
4
01550-08603-000
Bolt, crankcase
GT,GA; 1998-08-01~1999-11-01 |
01550-08603-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0860B-000 BoltBolt, sec case GT,GA; 1998-08-01~1999-11-01 |
01550-0860B-000 |
from US $6.61 |
||
|
4
|
4
01550-0860A-000 BoltGT,GA; 1998-08-01~1999-11-01 |
01550-0860A-000 |
from US $5.68 |
||
|
5
|
5
95200-77G00-000
Compressor assy (seiko)
OPT; GT,GA; 1998-08-01~1999-11-01 |
95200-77G00-000 |
— | ||
| replacement | |||||
|
5
|
5
95200-77G02-000 COMPRESSOR ASSYOPT; GT,GA; 1998-08-01~1999-11-01 |
95200-77G02-000 |
US $1,255.60 |
||
|
6
|
6
01550-08203-000
Bolt
OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 BoltOPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BoltBolt, funnel bracket OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0820A-000 |
from US $1.12 |
||
|
7
|
7
95120-73G01-000
Stay, compressor adjust
OPT; GT,GA; 1998-08-01~1999-11-01 |
95120-73G01-000 |
— | ||
| replacement | |||||
|
7
|
7
95120-73G10-000 STAY,COMPRESSOR ADJUSTOPT; GT,GA; 1998-08-01~1999-11-01 |
95120-73G10-000 |
US $9.60 |
||
|
8
|
8
01550-08203-000
Bolt
OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0820B-000 BoltOPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
01550-0820A-000 BoltBolt, funnel bracket OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0820A-000 |
from US $1.12 |
||
|
9
|
9
95141-71B00-000 V-BELT,L:730OPT; GT,GA; 1998-08-01~1999-11-01 |
95141-71B00-000 |
US $17.60 |
||
|
10
|
10
95720-76G00-000
Hose, discharge
OPT; GT,GA; 1998-08-01~1999-11-01 |
95720-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
95720-76G02-000 HOSE,DISCHARGEOPT; GT,GA; 1998-08-01~1999-11-01 |
95720-76G02-000 |
US $85.01 |
||
|
11
|
11
95895-50G00-000 O-RING,D:2.4 ID:10.8OPT; GT,GA; 1998-08-01~1999-11-01 |
95895-50G00-000 |
from US $1.28 |
||
|
12
|
12
01550-06203-000
Bolt
OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BoltBolt, inspection cap OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
95310-76G00-000
Condensor assy
OPT; GT,GA; 1998-08-01~1999-11-01 |
95310-76G00-000 |
— | ||
| replacement | |||||
|
13
|
13
95310-76F00-000 CONDENSER ASSYOPT; GT,GA; 1998-08-01~1999-11-01 |
95310-76F00-000 |
US $379.04 |
||
|
14
|
14
95815-50E00-000 PACKING,CONDENSEROPT; GT,GA; 1998-08-01~1999-11-01 |
95815-50E00-000 |
from US $3.04 |
||
|
15
|
15
95891-50G00-000 O-RING,D:1.8 ID:6.7OPT; GT,GA; 1998-08-01~1999-11-01 |
95891-50G00-000 |
from US $1.12 |
||
|
16
|
16
95851-75F00-000 BUSH,CONDOPT; GT,GA; 1998-08-01~1999-11-01 |
95851-75F00-000 |
US $1.67 |
||
|
17
|
17
01550-06203-000
Bolt
OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-0620B-000 BoltBolt, inspection cap OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
95330-77G00-000 RECEIVER DRYEROPT; GT,GA; 1998-08-01~1999-11-01 |
95330-77G00-000 |
from US $35.20 |
||
|
19
|
19
95350-76G00-000 BRACKET,RCVROPT; GT,GA; 1998-08-01~1999-11-01 |
95350-76G00-000 |
US $9.60 |
||
|
20
|
20
02162-06163-000
Screw
OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-0616B-000 |
from US $0.96 |
||
|
21
|
21
02162-06163-000
Screw
OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0616B-000 SCREWBolt, adjust OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-0616B-000 |
from US $0.96 |
||
|
22
|
22
95732-76G00-000
Hose, receiver outlet
OPT; GT,GA; 1998-08-01~1999-11-01 |
95732-76G00-000 |
— | ||
| replacement | |||||
|
22
|
22
95732-76G02-000 HOSE,RCVR OUTLETOPT; GT,GA; 1998-08-01~1999-11-01 |
95732-76G02-000 |
US $193.20 |
||
|
23
|
23
95891-50G00-000 O-RING,D:1.8 ID:6.7OPT; GT,GA; 1998-08-01~1999-11-01 |
95891-50G00-000 |
from US $1.12 |
||
|
24
|
24
95526-50G10-000 Switch, dual pressureOPT; GT,GA; 1998-08-01~1999-11-01 |
95526-50G10-000 |
US $79.56 |
||
| replacement | |||||
|
24
|
24
95526-50G30-000 SWITCH,DUAL PRESSUREOPT; GT,GA; 1998-08-01~1999-11-01 |
95526-50G30-000 |
from US $44.84 |
||
|
25
|
25
95400-76G01-000
クーリングユニット
OPT; GT,GA; 1998-08-01~1999-11-01 |
95400-76G01-000 |
— | ||
| replacement | |||||
|
25
|
25
95400-76G05-000 COOLING UNITOPT; GT,GA; 1998-08-01~1999-11-01 |
95400-76G05-000 |
US $668.80 |
||
|
26
|
26
09116-06167-000 BOLT(6X20)Bolt (6x20) OPT; GT,GA; 1998-08-01~1999-11-01 |
09116-06167-000 |
from US $1.37 |
||
|
27
|
27
03541-05163-000
Screw
OPT; GT,GA; 1998-08-01~1999-11-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
03541-0516A-000 SCREWOPT; GT,GA; 1998-08-01~1999-11-01 |
03541-0516A-000 |
from US $0.76 |
||
|
28
|
28
95710-76G00-000
ホース,サクション
OPT; GT,GA; 1998-08-01~1999-11-01 |
95710-76G00-000 |
— | ||
| replacement | |||||
|
28
|
28
95710-76G01-000
ホース,サクション
OPT; GT,GA; 1998-08-01~1999-11-01 |
95710-76G01-000 |
— | ||
|
29
|
29
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) OPT; GT,GA; 1998-08-01~1999-11-01 |
95896-50G00-000 |
from US $1.28 |
||
|
30
|
30
74430-81A00-000 Switch assy, blower fanSwitch assy, fan/air con OPT; GT,GA; 1998-08-01~1999-11-01 |
74430-81A00-000 |
US $44.30 |
||
| replacements | |||||
|
30
|
30
74430-81810-000
SWITCH SET,BLO FAN&A/C
OPT; GT,GA; 1998-08-01~1999-11-01 |
74430-81810-000 |
— | ||
|
30
|
30
74430-81812-000 SWITCH SET,BLO FAN&A/COPT; GT,GA; 1998-08-01~1999-11-01 |
74430-81812-000 |
US $116.28 |
||
|
31
|
31
01550-06203-000
Bolt
OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0620B-000 BoltBolt, inspection cap OPT; GT,GA; 1998-08-01~1999-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
02162-06163-000
Screw
OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
02162-0616B-000 SCREWBolt, adjust OPT; GT,GA; 1998-08-01~1999-11-01 |
02162-0616B-000 |
from US $0.96 |
||
|
33
|
33
09159-06081-000 NUTOPT; GT,GA; 1998-08-01~1999-11-01 |
09159-06081-000 |
from US $1.31 |
||
|
34
|
34
95794-50G00-000
ドラム,レフリジェラント,200
OPT; GT,GA; 1998-08-01~1999-11-01 |
95794-50G00-000 |
— | ||
