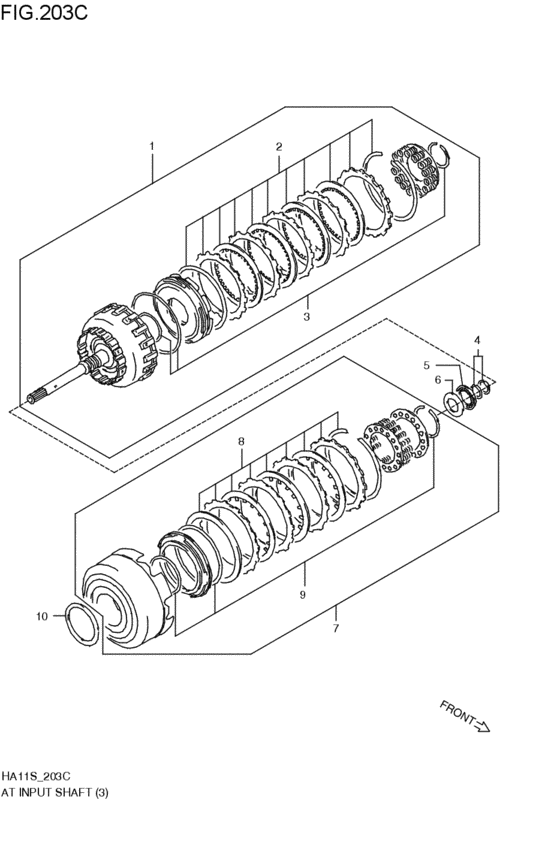

at - input shaft (4AT:TURBO; 1994-10-01~1997-03-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- AR
- number of the gears
- 4AT
- body
- S
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-56E81-000
シャフトアッシ,インプット
4AT:TURBO; 1994-10-01~1997-03-01 |
24100-56E81-000 |
— | ||
|
2
|
2
26621-58ET0-000
ディスクセット,フォワード
4AT:TURBO; 1994-10-01~1997-03-01 |
26621-58ET0-000 |
— | ||
|
3
|
3
26622-61DT0-000 O-RING SET,FORWARD4AT:TURBO; 1994-10-01~1997-03-01 |
26622-61DT0-000 |
US $21.90 |
||
|
4
|
4
26682-56E00-000 RING,INPUT SHAFT SEAL4AT:TURBO; 1994-10-01~1997-03-01 |
26682-56E00-000 |
US $6.81 |
||
|
5
|
5
26691-56E00-000 BEARING,INPUT SHAFT THRUST4AT:TURBO; 1994-10-01~1997-03-01 |
26691-56E00-000 |
US $14.32 |
||
|
6
|
6
26692-56E00-000 RACE,INPUT SHAFT BRG NO.14AT:TURBO; 1994-10-01~1997-03-01 |
26692-56E00-000 |
US $9.31 |
||
|
6
|
6
26693-56E00-000 RACE,INPUT SHAFT BRG NO.24AT:TURBO; 1994-10-01~1997-03-01 |
26693-56E00-000 |
US $9.31 |
||
|
6
|
6
26694-56E00-000 RACE,INPUT SHAFT BRG NO.34AT:TURBO; 1994-10-01~1997-03-01 |
26694-56E00-000 |
US $9.31 |
||
|
6
|
6
26695-56E00-000 RACE,INPUT SHAFT BRG NO.44AT:TURBO; 1994-10-01~1997-03-01 |
26695-56E00-000 |
US $9.31 |
||
|
6
|
6
26696-56E00-000 RACE,INPUT SHAFT BRG NO.54AT:TURBO; 1994-10-01~1997-03-01 |
26696-56E00-000 |
US $9.31 |
||
|
6
|
6
26697-56E00-000
RACE,INPUT SHAFT BRG NO.6
4AT:TURBO; 1994-10-01~1997-03-01 |
26697-56E00-000 |
— | ||
|
7
|
7
26630-51F00-000
クラッチアッシ,ダイレクト
4AT:TURBO; 1995-04-01~1997-03-01 |
26630-51F00-000 |
— | ||
|
7
|
7
26630-58E00-000
クラッチアッシ,ダイレクト
4AT:TURBO; 1994-10-01~1995-04-01 |
26630-58E00-000 |
— | ||
|
8
|
8
26631-56ET0-000
ディスクセット,ダイレクト
4AT:TURBO; 1994-10-01~1997-03-01 |
26631-56ET0-000 |
— | ||
|
9
|
9
26632-56ET0-000 O-RING SET DIRECT4AT:TURBO; 1994-10-01~1997-03-01 |
26632-56ET0-000 |
US $19.50 |
||
|
10
|
10
09161-44001-000 WASHER(44.5X59X1.2)4AT:TURBO; 1994-10-01~1997-03-01 |
09161-44001-000 |
US $68.10 |
||
|
10
|
10
09161-44003-000 WASHER(44.5X59X1.6)4AT:TURBO; 1994-10-01~1997-03-01 |
09161-44003-000 |
US $56.70 |
||
|
10
|
10
09161-44005-000 WASHER(44.5X59X2)4AT:TURBO; 1994-10-01~1997-03-01 |
09161-44005-000 |
US $56.70 |
