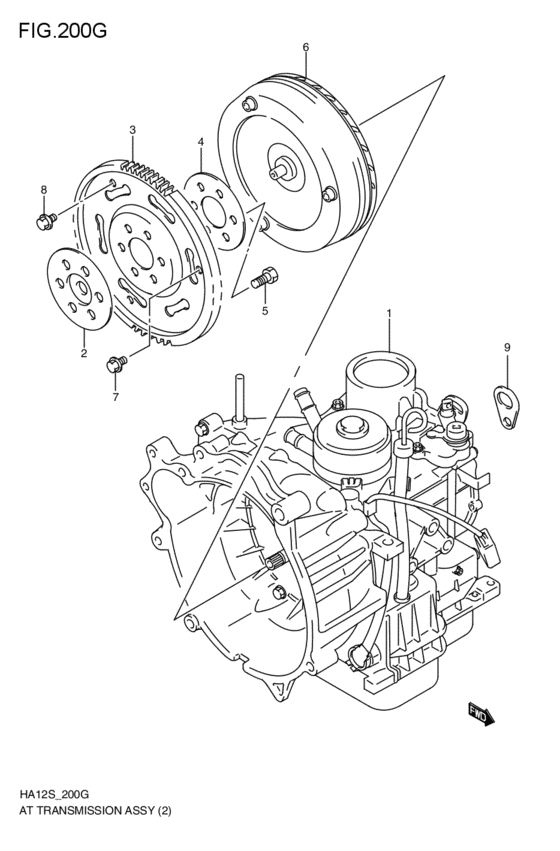

at - transmission assy (4AT; 1998-08-01~1999-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- HA22S
- air bag
- 2AB
- abs
- ABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-78G30-000
トランスミッションアッシ,オートマチック
4AT; 1998-08-01~1999-11-01 |
20002-78G30-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-77G60-000
トランスミッションアッシ,オートマチック
4AT; 1998-08-01~1999-11-01 |
20002-77G60-000 |
— | ||
|
1
|
1
20002-78G30-111
トランスミッションアッシ,オートマチック(リビルト)
リビルド; 4AT; 1998-08-01~1999-11-01 |
20002-78G30-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-77G60-111
トランスミッションアッシ,オートマチック(リビルト)
リビルド; 4AT; 1998-08-01~1999-11-01 |
20002-77G60-111 |
— | ||
|
2
|
2
22611-75F10-000 FLANGE,T/C DRIVE PLATE4AT; 1998-08-01~1999-11-01 |
22611-75F10-000 |
US $40.48 |
||
|
3
|
3
22620-72B21-000
Plate, drive
4AT; 1998-08-01~1999-11-01 |
22620-72B21-000 |
— | ||
| replacement | |||||
|
3
|
3
22620-72B23-000 PLATE,TC DRIVE4AT; 1998-08-01~1999-11-01 |
22620-72B23-000 |
US $164.86 |
||
|
4
|
4
22631-75F10-000 PLATE,TC DRIVE REAR4AT; 1998-08-01~1999-11-01 |
22631-75F10-000 |
US $8.76 |
||
|
5
|
5
09103-10282-000 BOLT(10X18.5)4AT; 1998-08-01~1999-11-01 |
09103-10282-000 |
from US $2.08 |
||
|
6
|
6
22710-78G30-000
Converter, torque
4AT; 1998-08-01~1999-11-01 |
22710-78G30-000 |
— | ||
| replacement | |||||
|
6
|
6
22710-78G90-000 CONVERTER,TORQUE4AT; 1998-08-01~1999-11-01 |
22710-78G90-000 |
US $1,112.32 |
||
|
7
|
7
09103-08516-000 BOLT(8X9.5)4AT; 1998-08-01~1999-11-01 |
09103-08516-000 |
from US $1.12 |
||
|
8
|
8
09103-08517-000 BOLT(8X9.5)4AT; 1998-08-01~1999-11-01 |
09103-08517-000 |
from US $3.80 |
||
|
9
|
9
11851-72B21-000 HOOK,ENGINE4AT; 1998-08-01~1999-11-01 |
11851-72B21-000 |
from US $1.78 |
||
