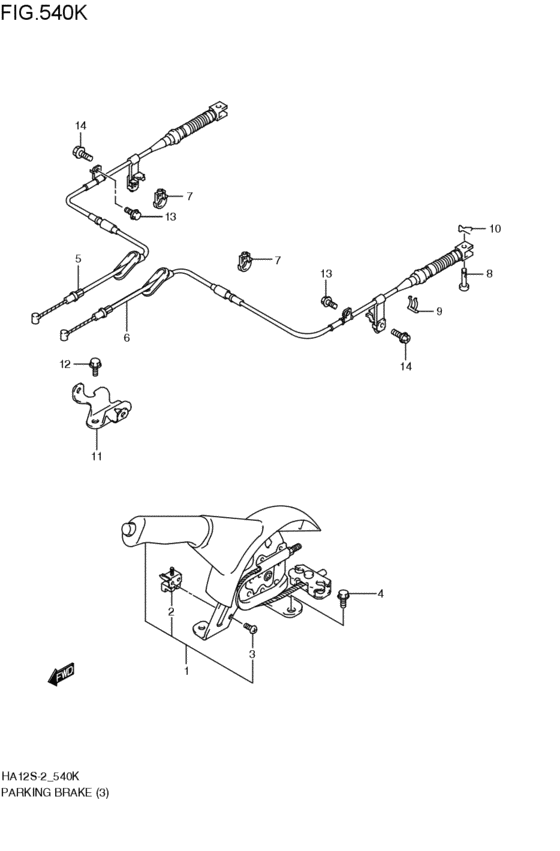

parking brakes (AR; 1999-10-01~2001-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- HA22S
- air bag
- 2AB
- abs
- ABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76G00-000
レバーアッシ,パーキングブレーキ
AR; 1999-10-01~2001-01-01 |
54100-76G00-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-76G11-5PK LEVER ASSY,PARK BK(BLACK)AR; 1999-10-01~2001-01-01 |
54100-76G11-5PK |
US $135.79 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKEAR; 1999-10-01~2001-01-01 |
37940-76G00-000 |
from US $4.82 |
||
|
3
|
3
54115-76G00-000 SCREWAR; 1999-10-01~2001-01-01 |
54115-76G00-000 |
from US $1.37 |
||
|
4
|
4
01551-08163-000
Bolt
AR; 1999-10-01~2001-01-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01551-0816C-000 BoltAR; 1999-10-01~2001-01-01 |
01551-0816C-000 |
from US $0.96 |
||
|
4
|
4
01551-0816A-000
ボルト
AR; 1999-10-01~2001-01-01 |
01551-0816A-000 |
— | ||
|
5
|
5
54401-78G00-000
Cable comp,parking brake,r
AR; 1999-10-01~2001-01-01 |
54401-78G00-000 |
— | ||
| replacement | |||||
|
5
|
5
54401-78GV0-000 CABLE,PARKING BRAKE,RAR; 1999-10-01~2001-01-01 |
54401-78GV0-000 |
US $72.50 |
||
|
6
|
6
54402-78G00-000
Cable comp,parking brake,l
AR; 1999-10-01~2001-01-01 |
54402-78G00-000 |
— | ||
| replacement | |||||
|
6
|
6
54402-78GV0-000 CABLE,PARKING BRAKE,LAR; 1999-10-01~2001-01-01 |
54402-78GV0-000 |
US $72.50 |
||
|
7
|
7
54415-77A00-000 CLAMP,PARKING CABLEAR; 1999-10-01~2001-01-01 |
54415-77A00-000 |
from US $1.60 |
||
|
8
|
8
09200-06064-000 PINAR; 1999-10-01~2001-01-01 |
09200-06064-000 |
US $23.60 |
||
|
9
|
9
09383-13001-000 E RINGAR; 1999-10-01~2001-01-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
9
|
9
09383-13003-000 E-RINGAR; 1999-10-01~2001-01-01 |
09383-13003-000 |
from US $1.46 |
||
|
10
|
10
09385-06012-000 CLIPAR; 1999-10-01~2001-01-01 |
09385-06012-000 |
from US $1.22 |
||
|
11
|
11
54495-76G00-000
ブラケット,パーキングケーブル
AR; 1999-10-01~2001-01-01 |
54495-76G00-000 |
— | ||
|
12
|
12
01551-08163-000
Bolt
AR; 1999-10-01~2001-01-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01551-0816C-000 BoltAR; 1999-10-01~2001-01-01 |
01551-0816C-000 |
from US $0.96 |
||
|
12
|
12
01551-0816A-000
ボルト
AR; 1999-10-01~2001-01-01 |
01551-0816A-000 |
— | ||
|
13
|
13
01551-08203-000
Bolt
AR; 1999-10-01~2001-01-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01551-0820A-000 BoltAR; 1999-10-01~2001-01-01 |
01551-0820A-000 |
from US $0.96 |
||
|
14
|
14
02162-06253-000
Bolt
AR; 1999-10-01~2001-01-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0625A-000 SCREWAR; 1999-10-01~2001-01-01 |
02162-0625A-000 |
from US $0.76 |
||
